NOTES

1. The applicable voltage range is 380V to 415V 50Hz for applications from
380V to 480V and for applications from 60Hz
2. This generator set is of the speed of 1500rpm interchangeable /
1800rpm
3. PT135 is the power for the service of the entire production, where a variable load and unlimited hours of use are applied to the
generator
set
with an average load factor of 80% of the high score over
each 24-hour period. Noting that a 10% surcharge is available for 1 hour in each 12 hours operation.4
P150S is a nominal reserve power of the generator set, where a
variable load limited to an annual use of up to 500 hours is applied,
with 300 hours of operation that can be continuous. Nothing that does not overload is allowed.

Rating @0.8 P.F Prime Rating Stand-by rating

Voltage*1

Frequency*2 PT135*3

PT150S*4

400V

50Hz             135.0 KVa

150.0 KVa

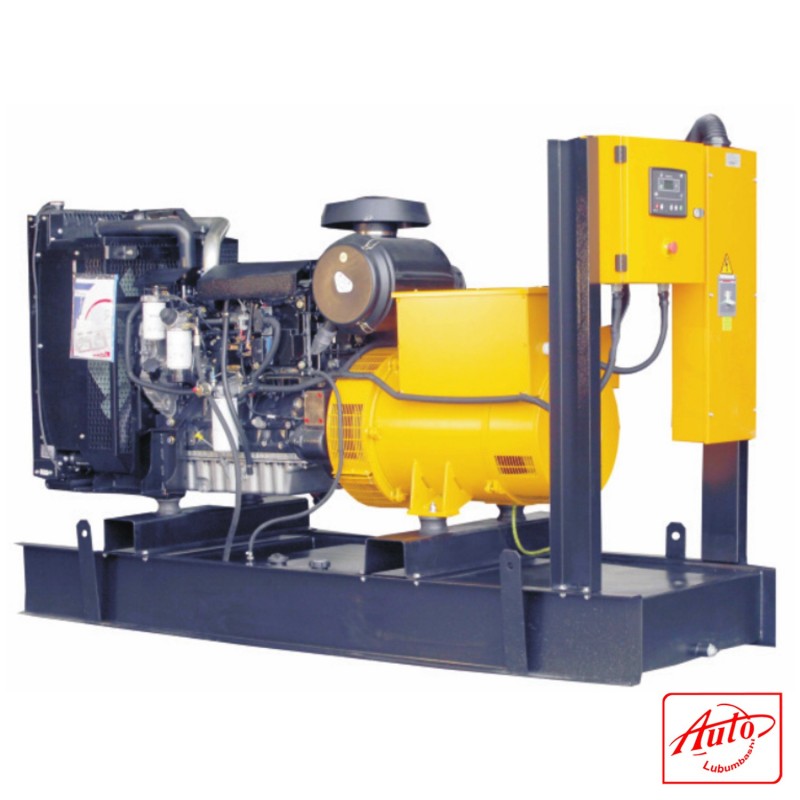

Motor technical specifications



model

Perkins 1006TAG

cylinders

6; vertical in line

aspiration

Turbo, air to the cooled air charge

combustion

direct injection

cooling system

Cooled water

movement

5.99 L

oil consumption

0.2% of fuel consumption

Lubrication capacity

19 L

cooling capacity

37,22L

Starter

electronic

Emissions regulation

Non-compliant

speed

1500 rpm

fuel consumption PT135

31.5 L/H

fuel consumption PT150S

34.6 L/H

Cooling air flow rate of the radiator

154 m3/ min

Maximum exhaust gas flow rate

24.1 m3/ min


Alternator technical specifications

Model

Leroy Somer LSA44.2 S75

Regulation

±0.5%

International protection

Ip23

Insulation class

H

Terminals

12

Frequency

50 Hz

Cooling air flow rate

0.43 m3 /s

Transport data

Length

Width

Height

Weight









3600 mm

1100 mm

1700 mm

1640 kg
