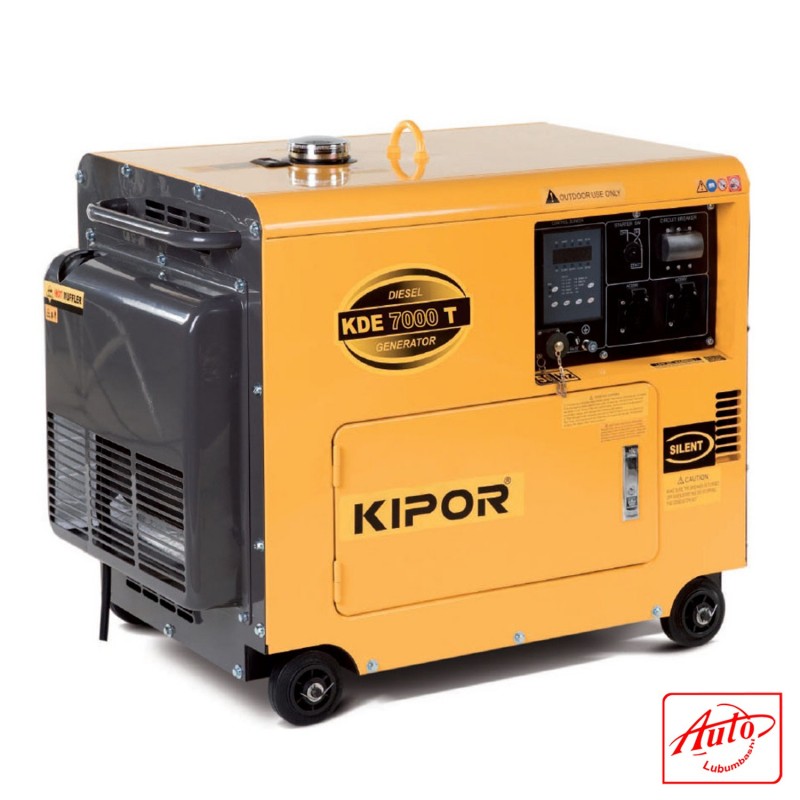

KIPOR KDE7000T

SKU: GE016K

$1,399.99

Out of stock

Diesel Single Phase 6,00KVA

Features and benefits

  • Maximum power 6 Kva
  • Rated power 4.5 kVA
  • Oil alarm
  • Electric start
  • Equipped with a KD2V78F engine
  • New AVR that reduces current fluctuations
  • Analog control panel
  • Large tank capacity

Technical Specifications

GENERATOR

Nominal frequency (Hz)

50

Nominal Voltage (V)

115/230

Rated Current (A)

39.2/19.6

Nominal power (kVA)

4,5

Maximum Power (kVA)

6

Nominal speed (r./min)

3000

Phi-cos factor (cos ø)

1

Number of Poles

2

AVR

Yes, it is.

Table Type

Analog board

TTY



Alternator

KT5

Degree of insulation

B

Structure

Open

Tank (L)

E:13.5/TA:15

Consumption L/H (load 75, 50, 25%)



Autonomy H (load 75, 50, 25%)



Sound Level (dBA/7m)

79 – 81

Weight (kg)

100

Dimensions (mm.) (WxWxH)

720x492x655

Start-up system

Electric launcher with automatic return

Fuel

Diesel

Oil

CD grade or 10W-30, 15W-40

Differential



Engine Model

KD2V78F

Motor Type

2 cylinder, V style, air cooled, 4 stroke, direct injection

Stroke x Bore age

86×72

Displacement (cc)

418

Compression ratio

19:1

Nominal power kW (r/min)

5,7/3000
