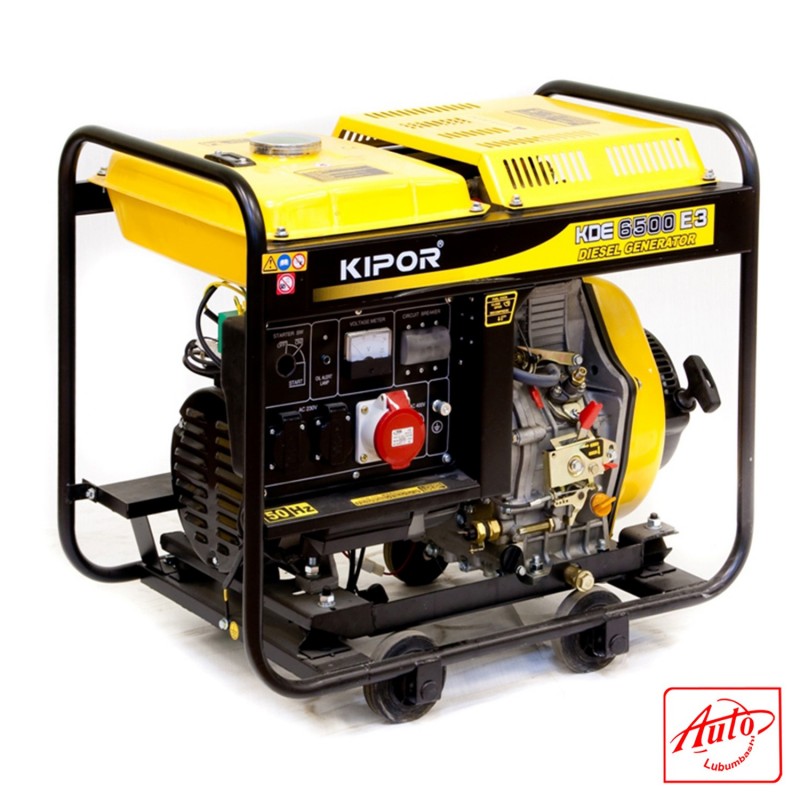

Characteristics and before age

  • Maximum power 6.0 Kva
  • Rated power 5.5 kV A
  • Oil alarm
  • Electric start
  • Equipped with a KM186FAG engine
  • New AVR that reduces current fluctuations
  • Analog control panel
  • Large tank capacity
  • Differential 30 mA
  • 1 socket 230 V
  • 1 400 V socket

Technical Specifications

GENERATOR

Nominal frequency (Hz)

50

Nominal Voltage (V)

230/400

Rated Current (A)

7,9

Nominal power (kVA)

5,5

Maximum Power (kVA)

6

Nominal speed (r./min)

3000

Phi-cos factor (cos ø)

0,8

Number of Poles

2

AVR

Yes, it is.

Table Type

Analog board

TTY

No

Alternator

KT5

Degree of insulation

B

Structure

Open

Tank (L)

13,5

Consumption L/H (load 75, 50, 25%) 1,53/1,02/0,51
Autonomy H (load 75, 50, 25%)         9/13,2/26,4
Sound Level (dBA/7m)                       79 – 81/
Weight (kg)                                         100
Dimensions (mm.) (WxWxH)            720x492x650
Start-up system                                    Electric launcher with automatic return
Fuel                                                     Diesel
Oil                                                       SAE10W30
Differential                                          30 mA

Engine Model                                      KM186FAG
Motor Type                                         4 stroke, 1 cylinder, air cooled, diesel
Stroke x Bore                                      86×72
Displacement (cc)                               418

Compression ratio                               19:1
Nominal power kW (r/m)                    5,7/30
