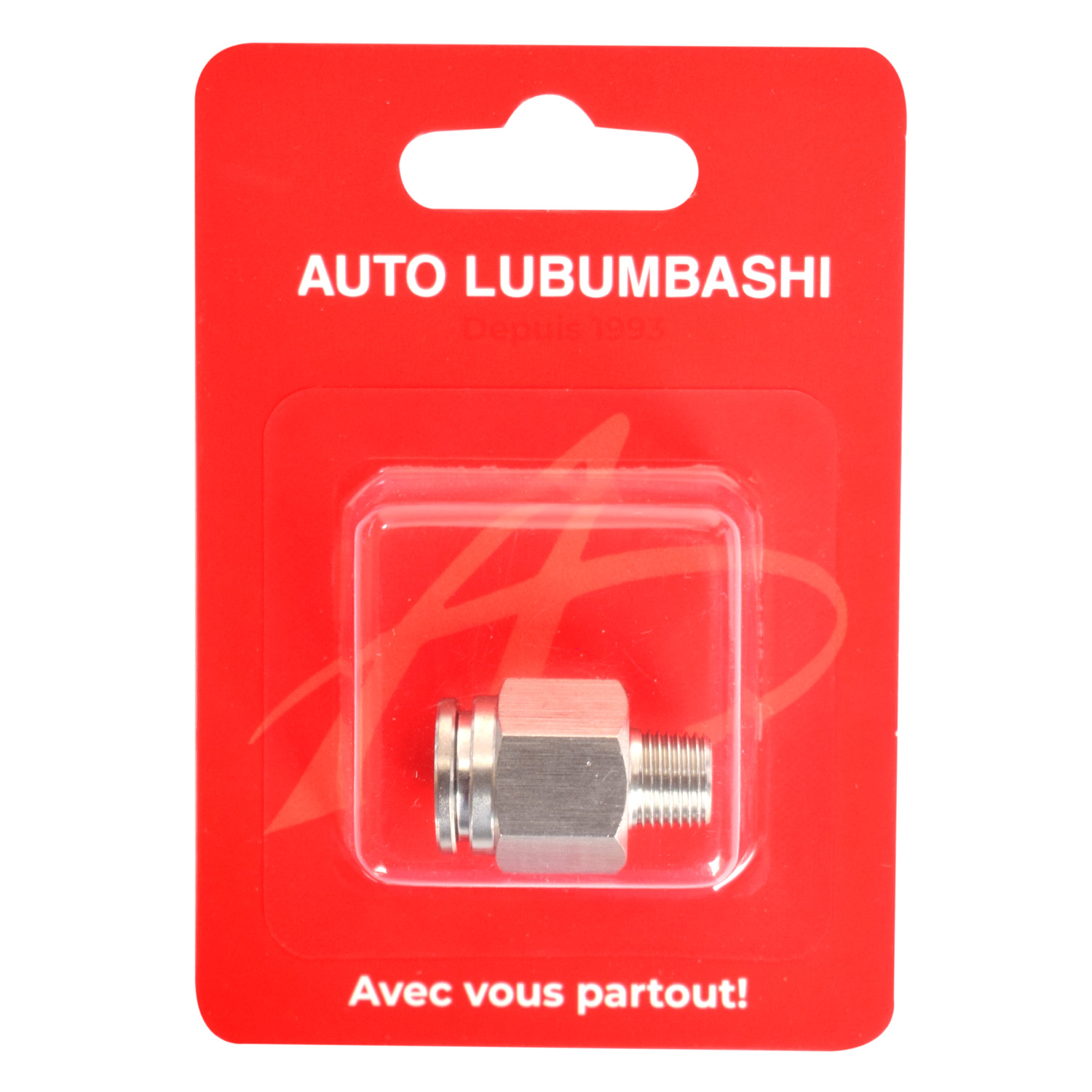

The stainless steel straight male stud coupling is specifically designed for 10 mm external diameter tubing and 1/8″ threaded connections.
Made entirely from stainless steel (except the sealing ring), it offers superior corrosion resistance and durability, making it suitable for harsh industrial environments.
Equipped with FKM (VITON) O-rings and packing, the fitting provides excellent resistance to chemicals, acids, and high temperatures. It is compatible with air, water, and steam applications, and its push-to-connect design allows quick installation and removal without tools.
Operating at pressures up to 218 PSI (with a maximum of 261 PSI) and temperatures ranging from -20°C to 140°C (-4°F to 284°F), this coupling is ideal for pneumatic systems, fluid transfer, and automotive air lines.
TECHNICAL DETAILS:
| Specification | Details |
| Type | Pneumatic Straight Threaded-to-Tube Adapter |
| Sub Type | Male Stud Coupling |
| Diameter | 10 mm (OD tubing) |
| Thread Size | 1/8″ |
| Thread Gender | Male |
| Material | Stainless Steel |
| Seal Material | FKM (VITON) |
| Fluid Type | Air, Water, Steam |
| Operating Pressure | 0–218 PSI |
| Max Pressure | 261 PSI |
| Operating Temperature | -4°F to 284°F (-20°C to 140°C) |
| Standards/Approvals | RoHS, ISO 9001:2008, CE |
| Features | Corrosion resistance, reusable design, chemical and temperature resilience |
| Applications | Pneumatic systems, fluid transfer, automotive air lines, steam/water distribution |
