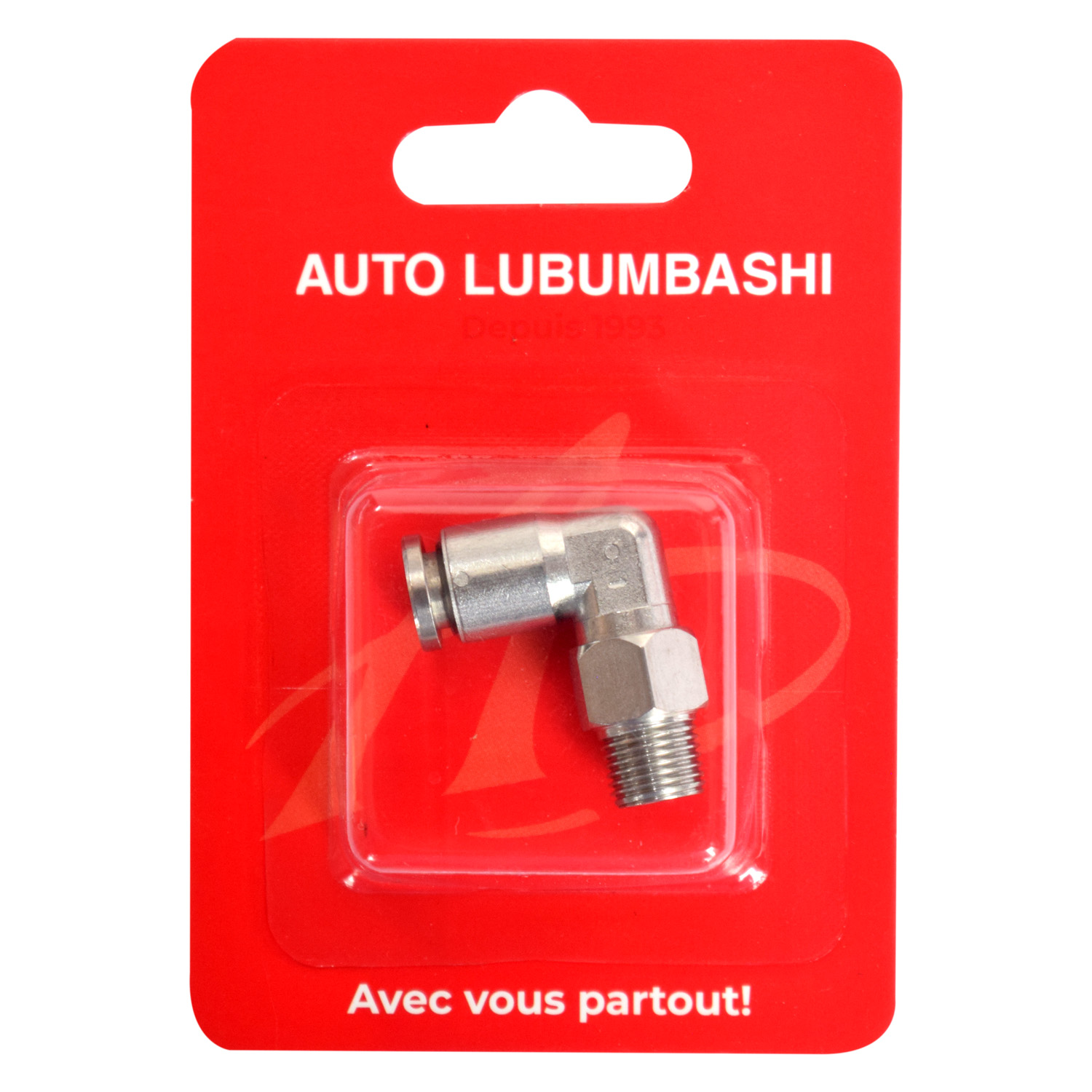

The 90° Stainless Steel Swivel Male Elbow Push-In Fitting is specifically designed for 6 mm external diameter tubing and 1/8″ NPT threaded ports.
Constructed from 316L stainless steel, it ensures superior corrosion resistance and durability in harsh industrial environments.
Equipped with FKM (VITON) O-rings and packing, the fitting offers excellent chemical and temperature resistance. Its reusable design allows multiple connections and disconnections without compromising performance.
Operating at pressures up to 215 PSI and temperatures ranging from -20°C to 140°C (-4°F to 284°F), it is suitable for air, water, and steam applications.
This swivel elbow fitting is an essential component for pneumatic systems, air compressors, fluid transfer, and automotive air lines, delivering secure, flexible, and long-lasting connections.
TECHNICAL DETAILS:
| Specification | Details |
| Type | 90° Swivel Male Elbow Push-In Fitting |
| Diameter | 6 mm (OD tubing) |
| Thread Size | 1/8″ NPT |
| Thread Gender | Male |
| Material | 316L Stainless Steel |
| Connection Style | Push-to-connect / One-touch |
| Fluid Type | Air, Water, Steam |
| Operating Pressure | 0–215 PSI (up to 16 bar) |
| Operating Temperature | -4°F to 284°F (-20°C to 140°C) |
| O-Ring | FKM (VITON) |
| Packing | FKM (VITON) |
| Back Ring | Stainless Steel |
| Lock Claws | Stainless Steel |
| Collar | Stainless Steel |
| Sleeve | Stainless Steel |
| Features | Swivel base (360° rotation), corrosion resistance, reusable design, chemical and temperature resilience |
| Applications | Pneumatic systems, air compressors, fluid transfer, automotive air lines |
