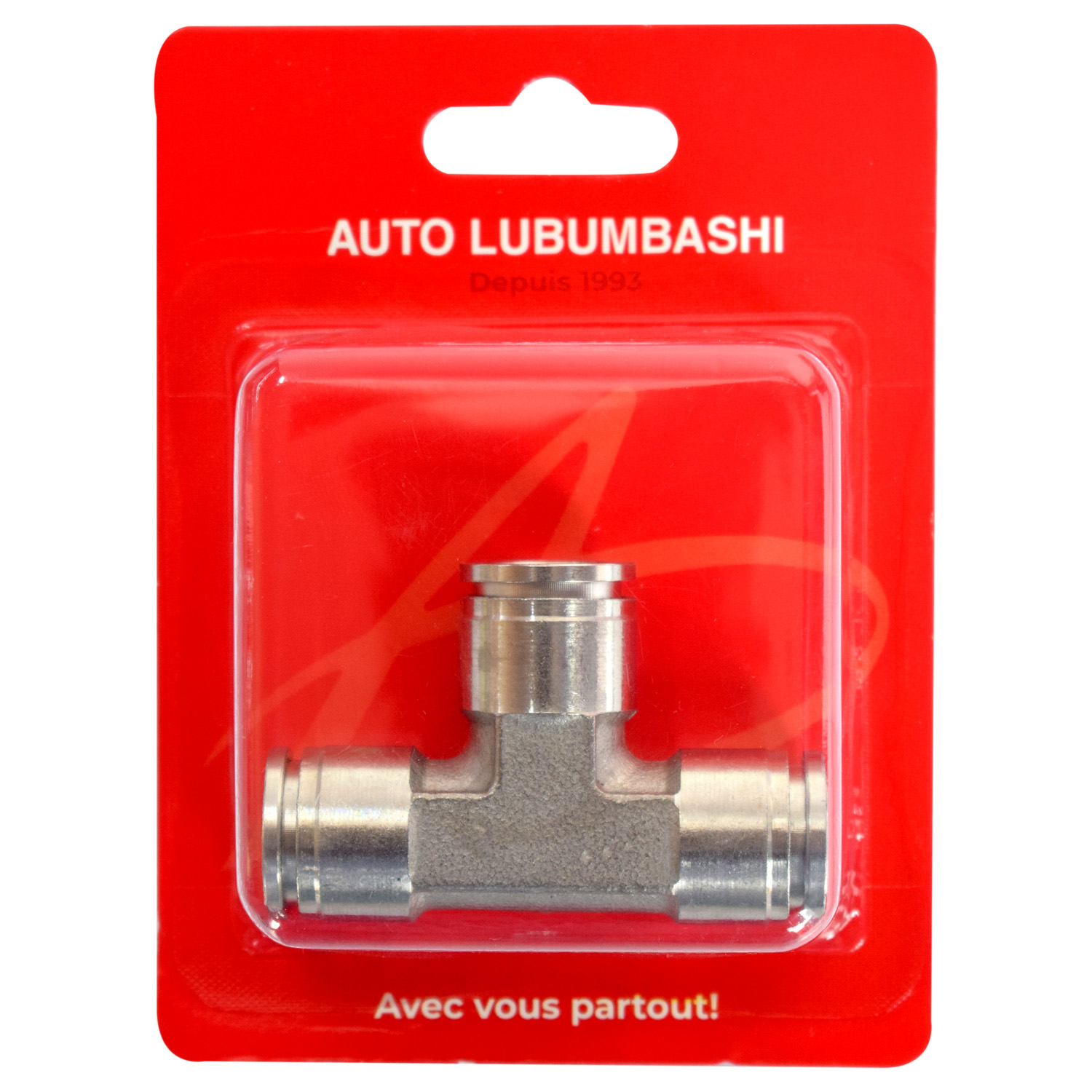

The Stainless Steel 3-Way T-Shaped Tee Push-In Fitting is specifically designed for 14 mm external diameter tubing. Made entirely of stainless steel, it ensures superior corrosion resistance and durability in industrial environments.
Equipped with FKM (VITON) seals, the fitting offers excellent chemical and temperature resistance. Its push-to-connect design allows fast installation: simply push the tube into the port until secured, and release by pressing the ring inward.
Operating at pressures from -0.95 bar (vacuum) up to 15 bar (218 PSI) and temperatures ranging from -20°C to 150°C (-4°F to 302°F), it is suitable for air, water, steam, and aggressive media.
This T-piece fitting is commonly used in air compressors, vacuum systems, and industrial fluid transfer applications.
TECHNICAL DETAILS:
| Specification | Details |
| Type | 3-Way T-Shaped Tee Push-In Fitting |
| Diameter | 14 mm (OD tubing) |
| Connection Type | Push-in |
| Material | Stainless Steel |
| Seal Material | FKM (VITON) |
| Fitting Features | Vacuum compatible |
| Min Pressure | -0.95 bar |
| Max Pressure | 15 bar (218 PSI) |
| Min Temperature | -20°C (-4°F) |
| Max Temperature | 150°C (302°F) |
| Applications | Air compressors, vacuum systems, industrial fluid transfer |
