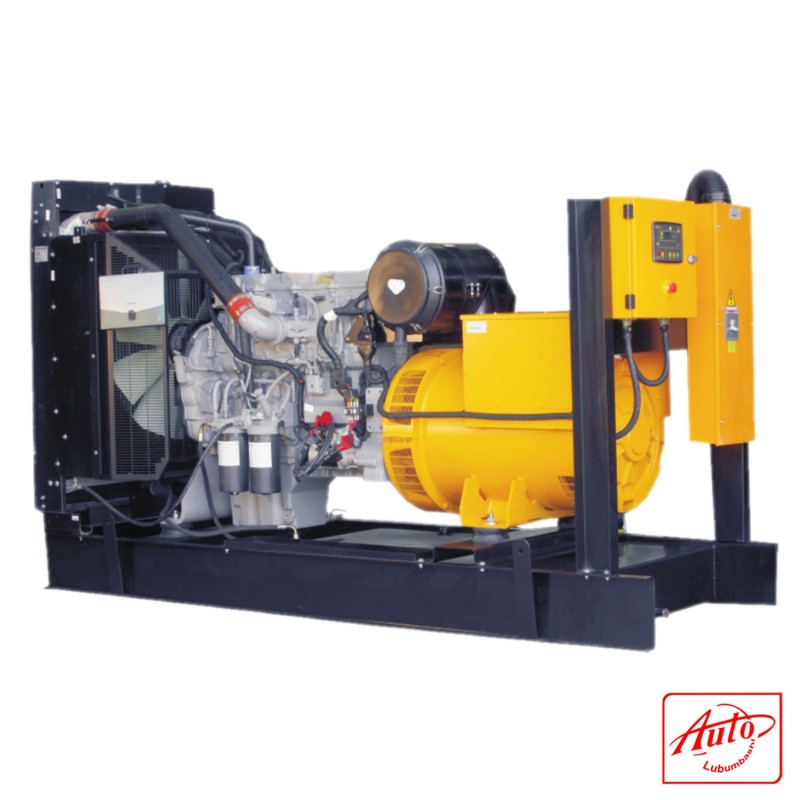

Name: PERKINS PT500-PT560S
SKU: GE158P
Availability: OutOfStock

NOTES

1. The applicable voltage range is 380V to 415V 50Hz for applications from
380V to 480V and for applications from 60Hz
2. This generator set has a speed of 1500 rpm interchangeable /
1800rpm
3. PT500 is the power for the service of the entire production, where a variable load and unlimited hours of use are applied to the generator
Set with an average load factor of 80% of the high score over each
24-hour period. Noting that a 10% surcharge is available for 1 hour in each 12 hours operation
.4. PT560S is a nominal reserve power of the generator set, where a
variable load limited to an annual use of up to 500 hours is applied,
with 300 hours of operation that can be continuous. Nothing that does not overload is allowed.

Rating @0.8 P.F	Prime Rating	Stand-by rating
Voltage*1	Frequency*2	PT500*3	PT560S*4
400V	50Hz	500.0 KVa	563.0 KVa

Motor technical specifications

model	Perkins 2506A-E15T AG2
cylinders	6; vertical in line
aspiration	Turbo, air to the cooled air charge
combustion	direct injection
cooling system	Cooled water
movement	15.2 L
oil consumption	0.1% of fuel consumption
Lubrication capacity	62L
cooling capacity	58L
Starter	electronic
Emissions regulation	TA Luft compliant
speed	1500 rpm
fuel consumption PT500	106 L/ H
fuel consumption PT560S	111 L / H 81L/H
Cooling air flow rate of the radiator	722 m3 / min
Maximum exhaust gas flow rate	87 m3 /min
