Out Of Stock

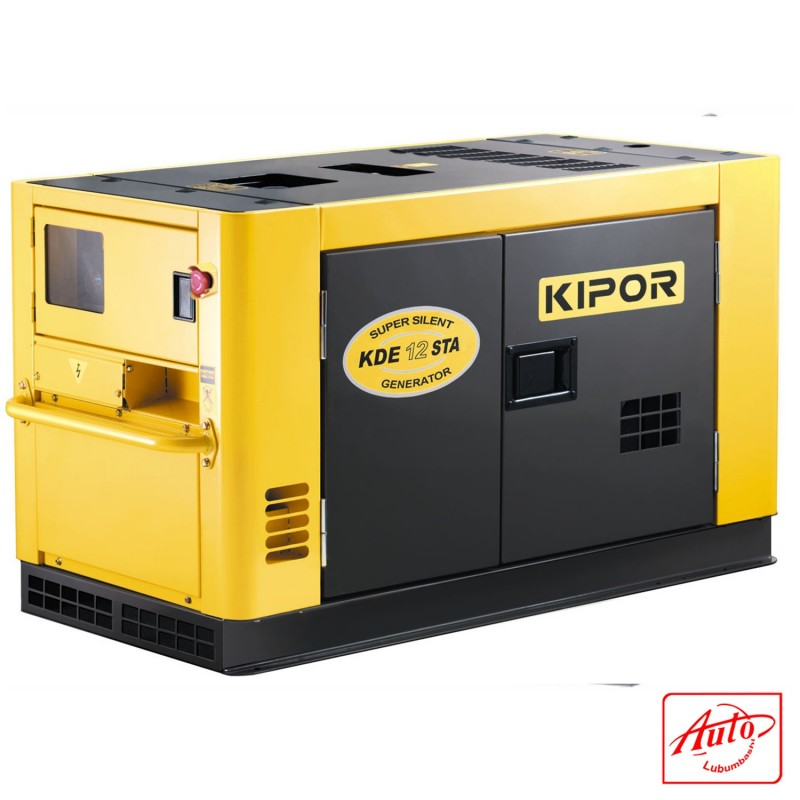

KIPOR KIDE19STA3

SKU: GE036K

$7,899.99

Out of stock

Diesel Three Phase 18,5KVA

Features and benefits

  • Maximum power 18.5 Kva
  • Rated power 16.25kVA
  • Oil alarm
  • Electric start
  • Equipped with a KM186FAGET engine
  • New AVR that reduces current fluctuations
  • Analog control panel
  • Large tank capacity

Technical Specifications

GENERATOR

Nominal frequency (Hz)                   50
Nominal Voltage (V)                          230/400
Rated Current (A)                               23.5
Nominal power (kVA)                        16.25
Maximum Power (kVA)                     18.75
Nominal speed (r./min)                       3000
Power factor (Ø cos)                           0.8
Number of Poles                                 2
AVR
Table Type                                          Numerical table TTY

 Optional Alternator                             Kt6
Degree of insulation                            B
Structure                                              Soundproofed
Tank (L)                                              15
Consumption L/H (load 75, 50, 25%) 1,17 / 0 , 78 / 0,39
Autonomy H (load 75, 50, 25%)         13 / 19 ,2 / 38, 4
Sound Level (dBA/7m)                       65
Weight (kg)                                         177
Dimensions (mm.) (WxWxH)            870x645x710
Start-up system                                   Electric starter
Fuel                                                     Diesel
Oil                                                       10W30 / 15W40
Engine Model                                      KM186FAGET
Motor Type                                         4-stroke, 1 cylinder, water-cooled, diesel
Stroke x Bore                                      86×72
Displacement (cc)                               418
Compression ratio                               19:1
Nominal power k W (r/min)               4.2 / 4. 6 3000/3600
