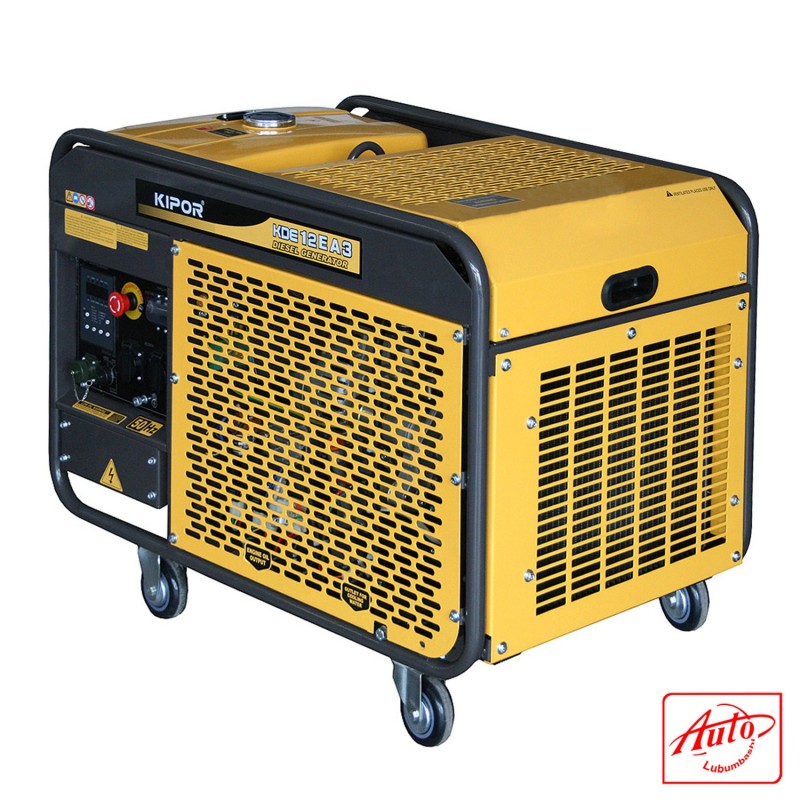

Features and benefits
- Maximum power 10,5Kva
- Rated power 9.5 kVA
- Oil alarm
- Electric start
- Equipped with a KM2V80, 2 cylinder, water cooled engine
- New AVR that reduces fluctuations of current
- Digital control panel
- Large tank capacity
Technical Specifications
GENERATOR
|
Nominal frequency (Hz) |
50 |
|
Nominal Voltage (V) |
230/400 |
|
Rated Current (A) |
14.5 |
|
Nominal power (kVA) |
9.5 |
|
Maximum Power (kVA) |
10.5 |
|
Nominal speed (r./min) |
3000 |
|
Power factor (Ø cos) |
0.8 |
|
Number of Poles |
2 |
|
AVR |
Yes, it is. |
|
Panel Type |
Digital |
|
TTY |
Optional |
|
Alternator |
KTS12 |
|
Degree of insulation |
B |
|
Structure |
Open |
|
Fuel tank capacity (L) |
25 |
|
Consumption L/H (load 75, 50, 25%) |
2.53 / 1.69/0.84 |
|
Autonomy H (load 75, 50, 25%) |
10 /14.8 / 29.6 |
|
Noise level (db) (without load-at maximum load) |
81-85 |
|
Weight (kg) |
200 |
|
Measurements (L x W x H) (mm) |
1030x600x790 |
|
Start-up system |
Electric |
|
Fuel |
Diesel |
|
Oil |
SAE10W30 |
|
Engine Model |
KM2V80G |
|
Motor Type |
4-stroke, 2 cylinder, water-cooled, diesel engine |
|
Diameter x stroke |
2-80 x 79 |
|
Displacement (cc) |
794 |
|
Compression ratio |
23:1 |
|
Nominal power kW (r/min) |
12.5/3000 14.5/3600 |
