Convenient maintenance
Large service doors provide easy access to preventive maintenance and service checks.
Low running noise
High efficiency combustion system ensures complete combustion. A large silencer dampens exhaust noise
and engine sound are contained in a double wall structure and absorbed.
Alternator winding
Waveform distortion is kept at a minimum level with a stable output. The winding design protect the
generator from short circuit and provide a stable output while running inductive loads.
Low oil alarm system
Before the oil level drops to a dangerous level, the generator will stop automatically. It can be restarted after
the proper oil level is restored.

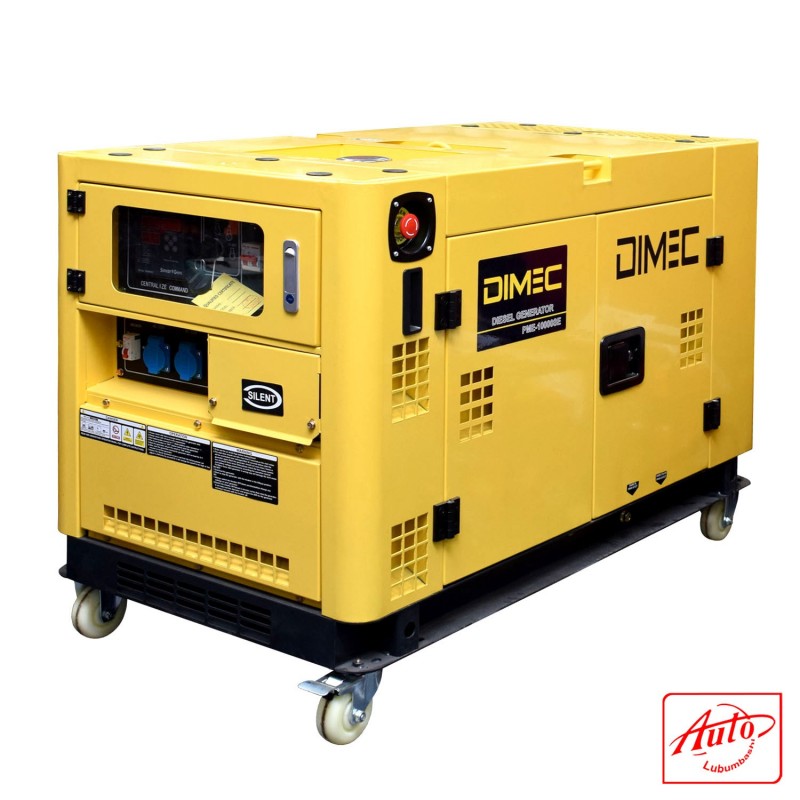

| Model | PME10000SE-3 |
| Alternator Rated frequency [Hz] Rated power [kw] Max.power [kw] Rated voltage [v] Power factor Phase |
50 8.5kw (50Hz) 10kw (50Hz) 220 0.8 Single phase |
| Engine | |
| Mode | Ev80 |
| Type | Two cylinder, water-cooled, 4-stroke, diesel engine |
| Starting system | Electric start |
| Genset | |
| Fuel tank capacity [L] | 32 |
| Continuous running time [h] | 10h (50Hz) |
| Noise(7m) dB(A) | / |
| N.W/G.W | 345/370 |
| Package (L x W x H) [cm] | 126x73x100 |
