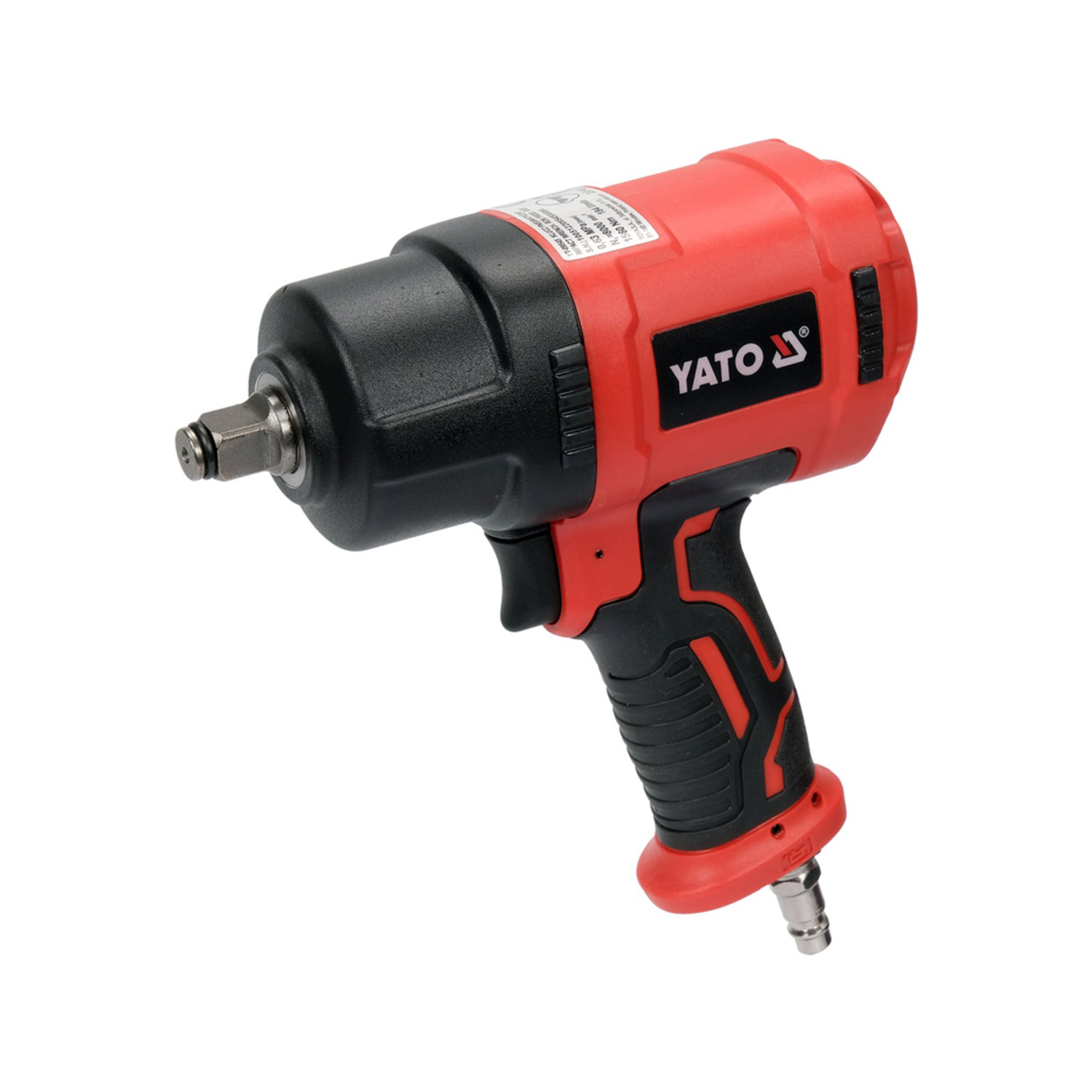

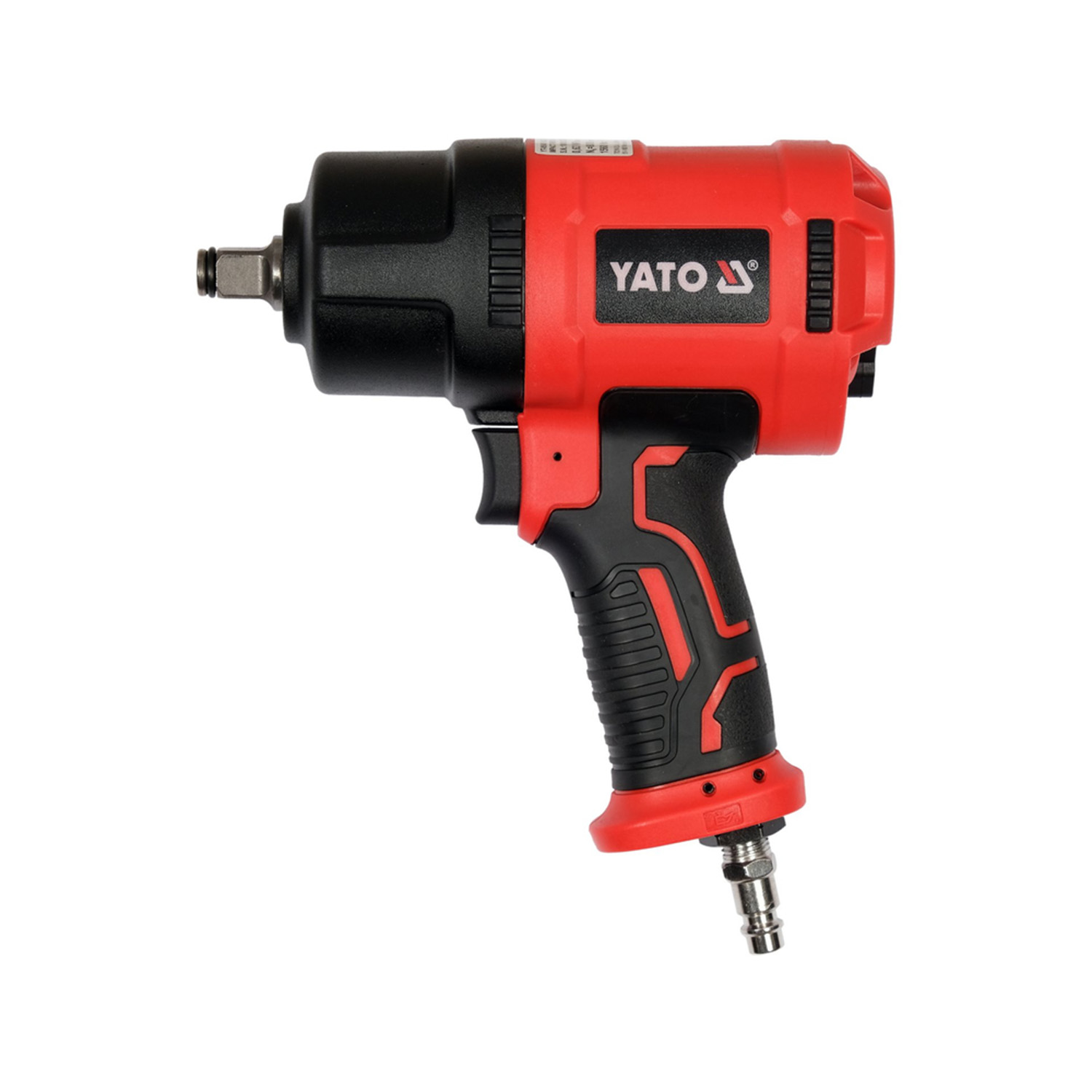

The YT-09545 Pneumatic Impact Wrench is designed for professional use, combining high torque (1560 Nm) with a Twin Hammer impact mechanism for maximum efficiency and reliability.
Its 8000 rpm rotational speed, working pressure of 0.63 MPa, and air consumption of 184 l/min ensure powerful and efficient operation. The torque adjustment system allows precise matching to specific tasks, while the right/left rotation switch provides convenience.
Constructed from composite and duralumin materials, the wrench is durable yet lightweight at 2.1 kg, with a compact length of 179 mm, making it perfect for use in tight spaces. Optimized working parameters minimize vibrations (6.33 m/s²) and noise, ensuring operator comfort.
The YT-09545 comes equipped with a pneumatic wrench and a hose connector.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | Yato |
| Model | YT-09545 |
| Series | GRF |
| Type | Air Impact Wrench |
| Holder Size | 1/2″ (12.7 mm) |
| Toolholder Type | Driver |
| Stroke Mechanism | Twin Hammer |
| Max Working Pressure | 0.63 MPa |
| Required Air Flow | 184 l/min |
| Rotations | 8000 rpm |
| Max Torque | 1560 Nm |
| Quick Coupler Size | Standard |
| Air Connection Diameter (PT) | Standard |
| Air Supply Hose Diameter | 3/8″ (9.5 mm) |
| Length | 179 mm |
| Weight | 2.1 kg |
| Casing Material | Composite, duralumin |

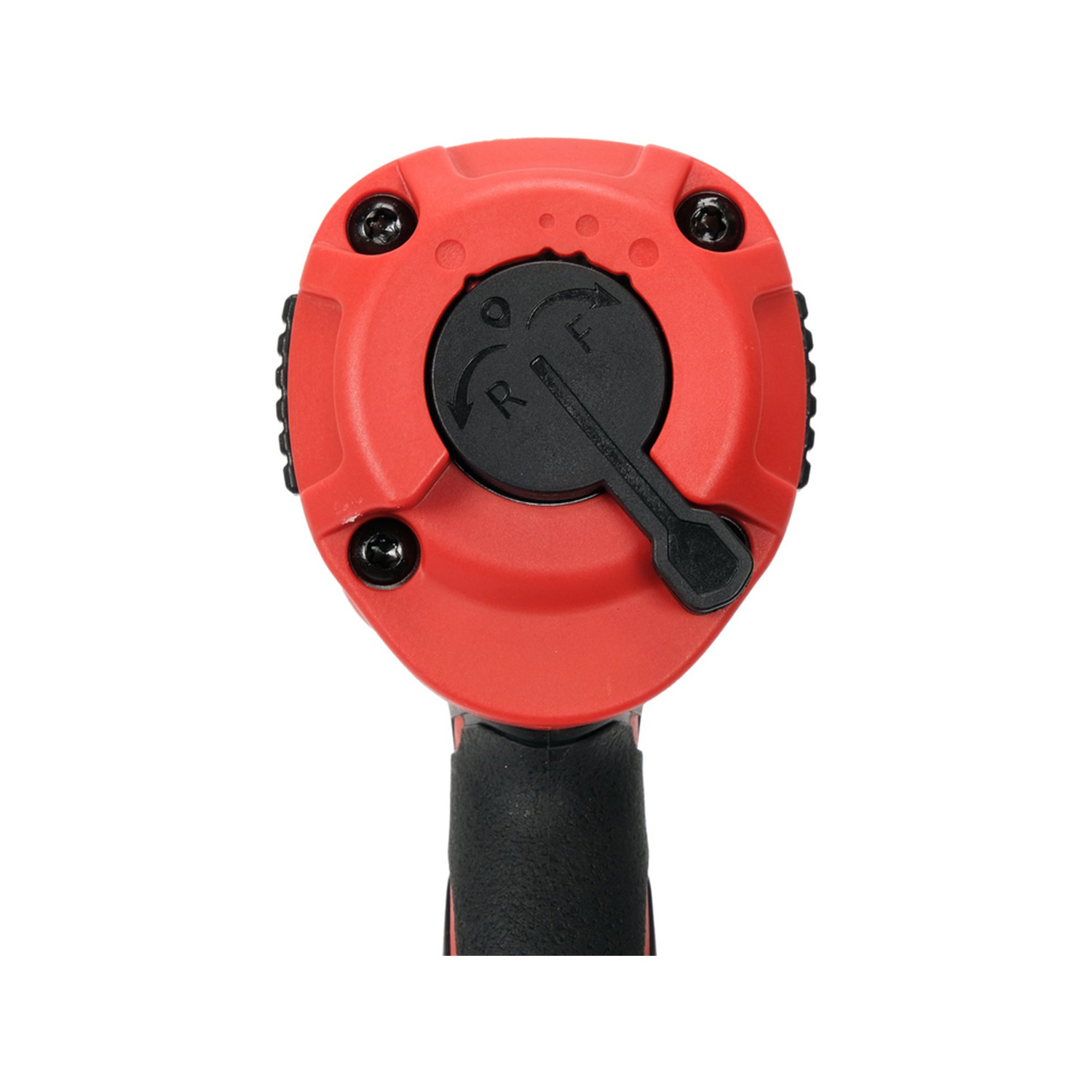

| Rotation Switch | Yes |
| Acoustic Pressure | 92.5 ± 3 dB(A) |
| Acoustic Power | 103.5 ± 3 dB(A) |
| Vibration | 6.33 ± 1.5 m/s² |
| Features | Twin Hammer mechanism, torque adjustment, compact lightweight design, durable composite housing |
| Applications | Industry, mechanical workshops, car services |
