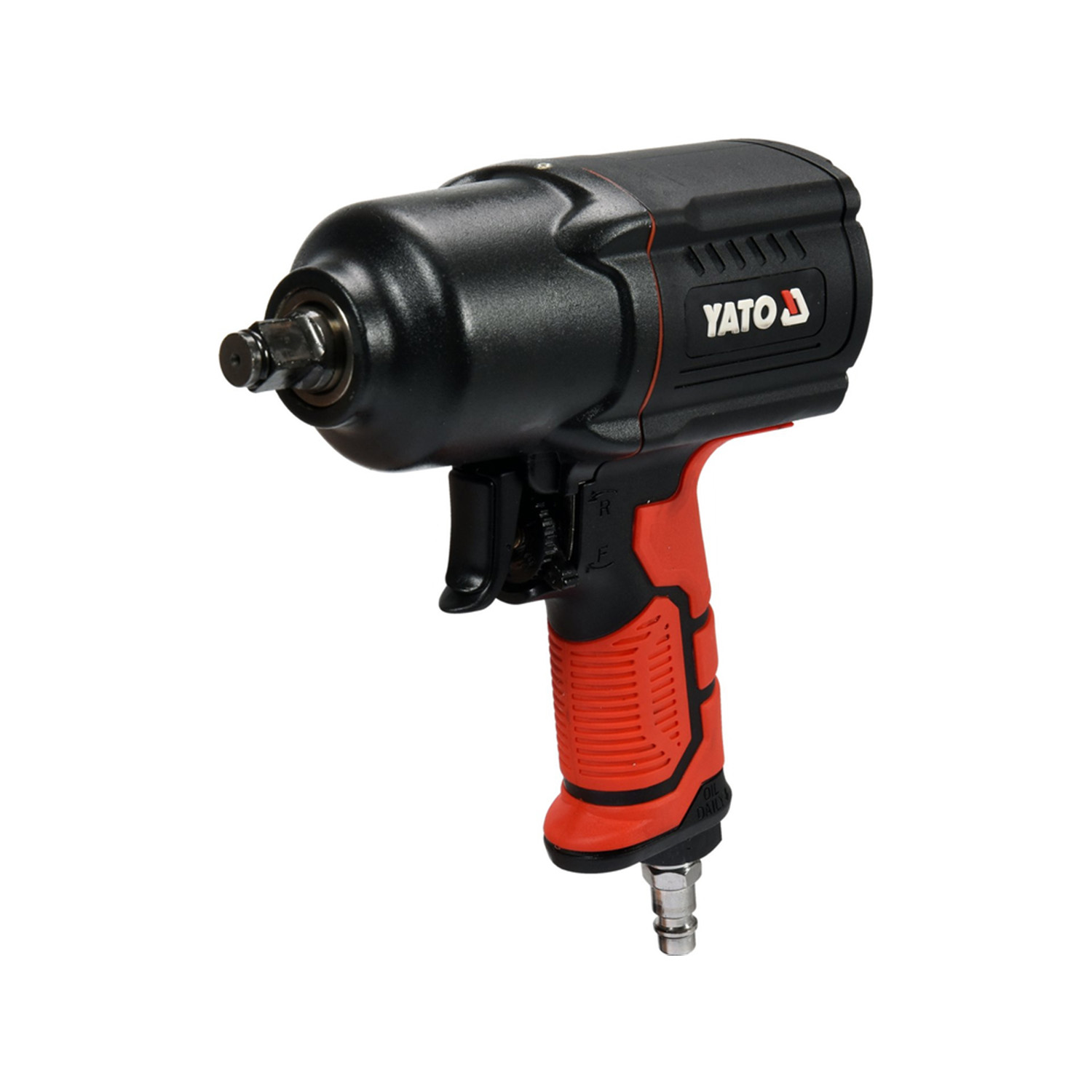

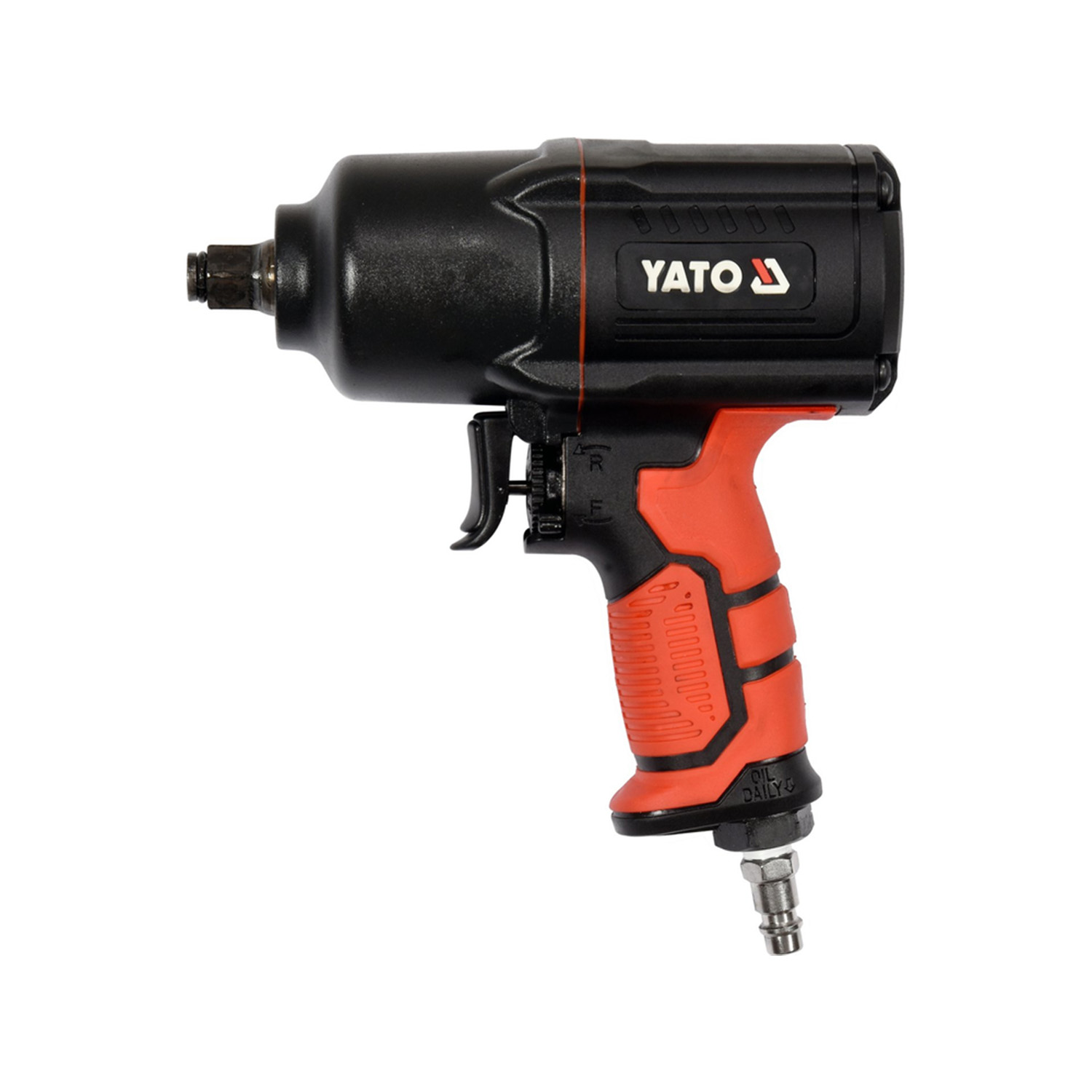

The YT-09544 Pneumatic Impact Wrench is designed for intensive service work, combining high torque (1700 Nm) with a Twin Hammer impact mechanism for maximum efficiency and reliability.
Its 7000 rpm rotational speed, working pressure of 0.63 MPa, and air consumption of 198 l/min ensure powerful and efficient operation. The right/left rotation switch provides convenience, while the durable composite and duralumin housing guarantees long service life.
Compact at 190 mm length and lightweight at 2 kg, the wrench is easy to handle in tight spaces, reducing operator fatigue. Optimized working parameters minimize vibrations (4.66 m/s²) and noise, ensuring comfort during prolonged use.
Perfect for automotive services (wheel mounting/dismounting), mechanical workshops, and industrial fastening tasks, the YT-09544 is a reliable choice for professionals.
The YT-09544 comes equipped with a pneumatic wrench and a hose connector.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | Yato |
| Model | YT-09544 |
| Series | GRF |
| Type | Air Impact Wrench |
| Holder Size | 1/2″ (12.7 mm) |
| Toolholder Type | Driver |
| Stroke Mechanism | Twin Hammer |
| Max Working Pressure | 0.63 MPa |
| Required Air Flow | 198 l/min |
| Rotations | 7000 rpm |
| Max Torque | 1700 Nm |
| Quick Coupler Size | Standard |
| Air Connection Diameter (PT) | Standard |
| Air Supply Hose Diameter | 3/8″ (9.5 mm) |
| Length | 190 mm |
| Weight | 2 kg |
| Casing Material | Composite, duralumin |
| Rotation Switch | Yes |
| Acoustic Pressure | 92.2 ± 3 dB(A) |
| Acoustic Power | 103.2 ± 3 dB(A) |
| Vibration | 4.66 ± 1.5 m/s² |
| Features | Twin Hammer mechanism, compact lightweight design, durable composite housing, rotation switch |
| Applications | Industry, mechanical workshops, car services |
