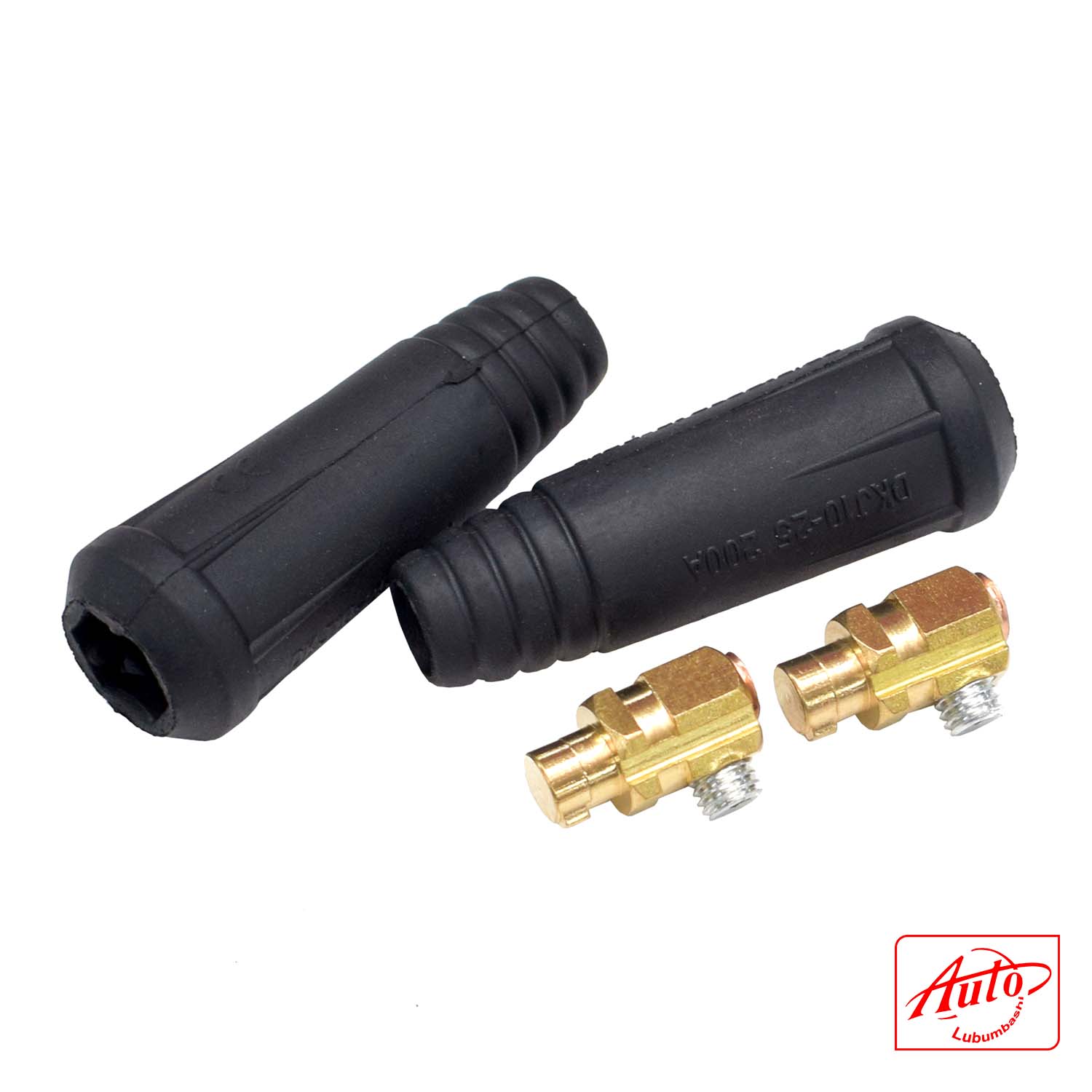

The DKJ10-25 welding cable connector is engineered for TIG and MMA welding machines, providing a safe and efficient quick-connect solution. Its forged brass construction ensures high conductivity, anti-corrosion, and rust resistance, while the insulated rubber jacket withstands high temperatures and aging.
The connector features a 9 mm plug diameter, rated for 200A, and supports cable cross-sections of 10–25 mm². It is easy to install, operate, and replace, making it ideal for field repairs and heavy-duty welding applications.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | Hugong |
| Product Name | TIG Welding Cable Panel Connector |
| Model | DKJ10-25 |
| Type | Male |
| Material | Forged Brass + Insulated Rubber Jacket |
| Plug Copper Head Diameter | 9 mm |
| Socket Diameter | 9.3 mm |
| Outer Diameter (Rubber Sleeve) | 24 mm |
| Cable Cross-Section | 10–25 mm² |
| Rated Current | 200A |
| Compatible Welders | 200A / partial 250A machines |
| Features | Quick-connect design, high conductivity, anti-corrosion, rust-resistant, heat-resistant, long service life |
| Applications | TIG, MMA, and other square-shank welding tools |
| Industries | Industrial fabrication, repair & maintenance, structural steel fabrication, light fabrication |
