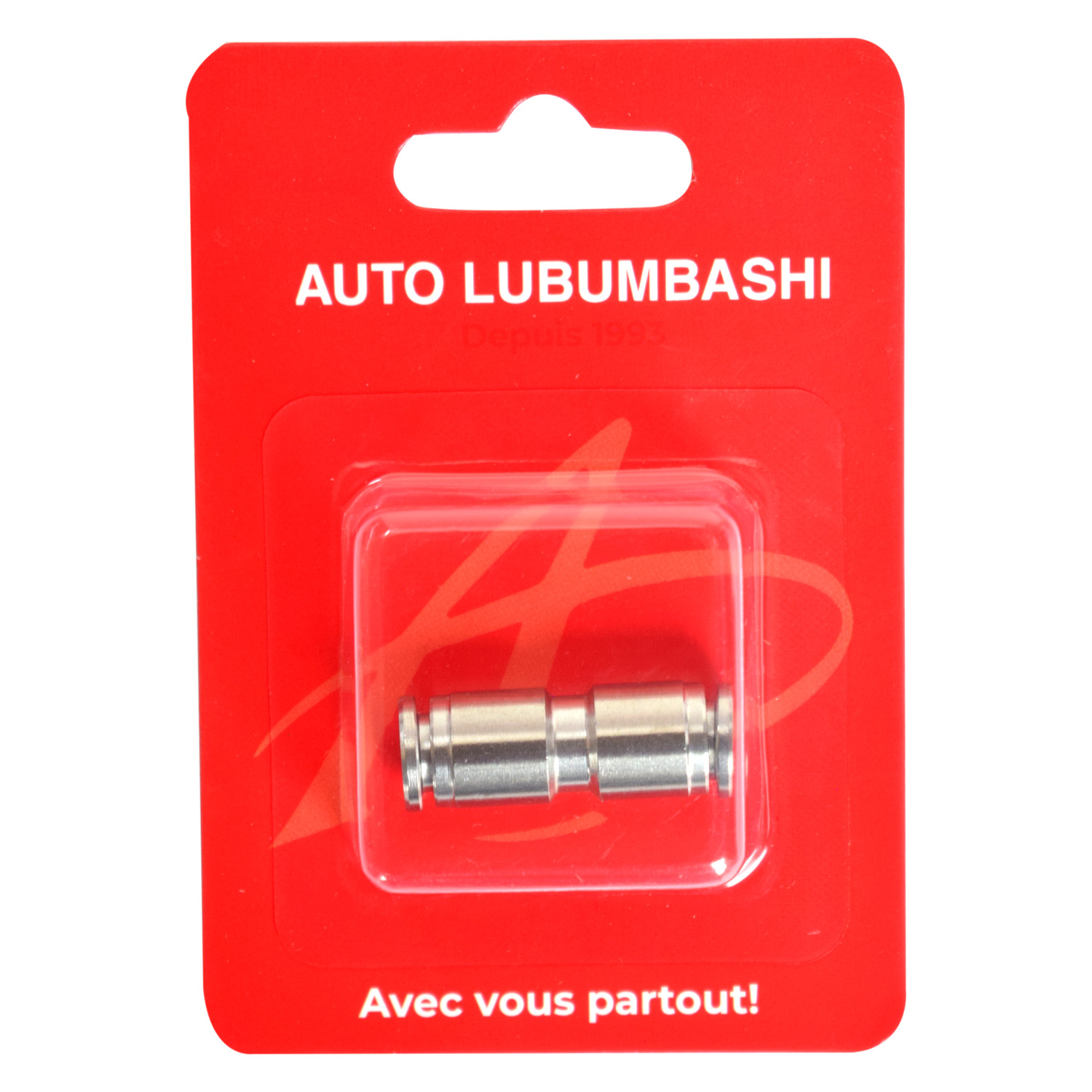

The SS Straight Air Hose Connector – 6 mm is designed for pneumatic and compressed air systems, compatible with PU (polyurethane) and nylon tubing. It ensures reliable sealing and withstands frequent connection and disconnection in assembly line operations.
Made from high-grade stainless steel, it provides excellent resistance to corrosion, oxidation, and wear, making it suitable for automotive, industrial, chemical, marine, and high-pressure cleaning applications.
Featuring a straight push-to-connect locking mechanism, it allows quick, tool-free installation and removal. Its durable construction minimizes rupture risks under pressure, while the stainless steel retaining clip and integrated seals ensure secure, leak-free performance. The connector also supports easy hose insertion, post-installation adjustment, and 360° rotation for flexible routing.
TECHNICAL DETAILS:
| Specification | Details |
| Outer Diameter | 6 mm |
| Applicable Tube | PU / Nylon pipe |
| Material | Stainless Steel |
| Applicable Fluid | Compressed air, vacuum |
| Max Working Pressure | 1.32 MPa (13.5 kgf/cm²) |
| Normal Working Pressure | 0–0.9 MPa (0–9.2 kgf/cm²) |
| Low Working Pressure | -99.99 ~ 0 kPa (-750 ~ 0 mmHg) |
| Working Temperature | -60°C ~ 80°C |
| Application | Pneumatic tools, compressors, air hoses, nail guns, blow guns, high-pressure cleaning machines, industrial automation, hydraulic equipment, ship piping |
