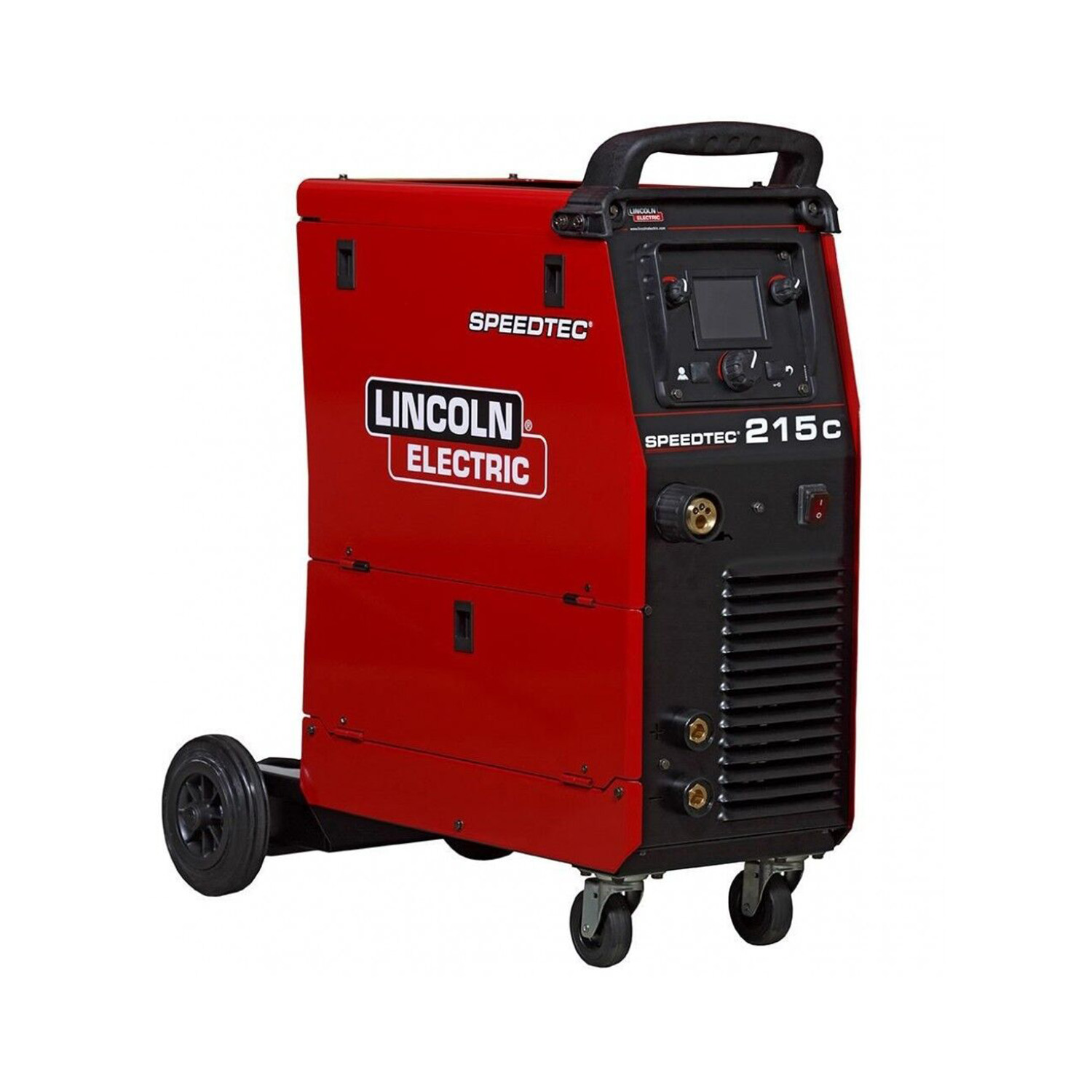

The Lincoln Electric – SPEEDTEC® 215C Multi-Process Welder (115/230 V Single-Phase, 20–200 A) is designed for workshops, maintenance, and light fabrication. Despite its compact design, it delivers professional performance with up to 200 A output at a 25% duty cycle.

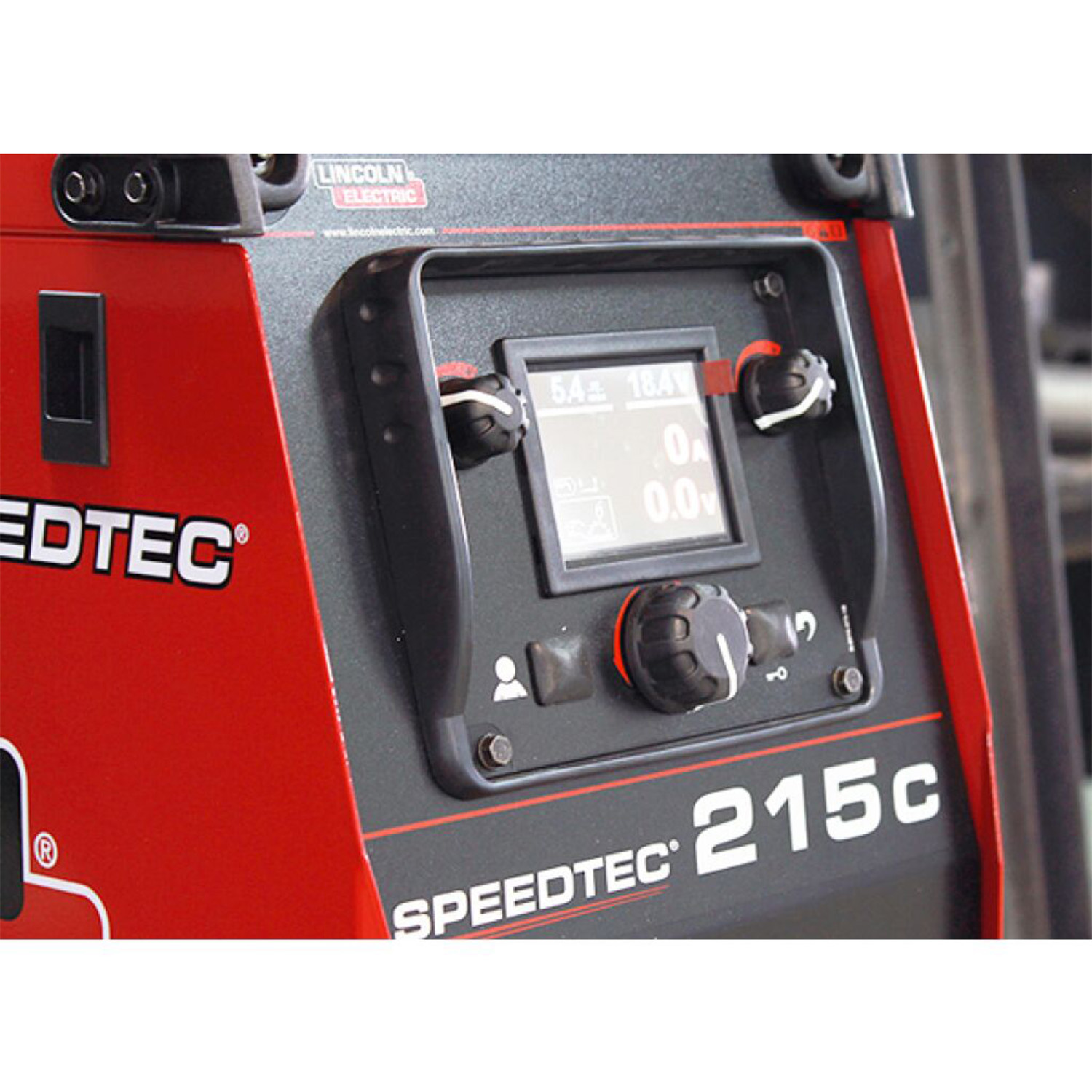

A colour TFT interface ensures quick and intuitive setup, while the synergic control mode automatically adjusts parameters based on current, wire feed speed, or material thickness, providing optimal results for steel, stainless steel, and aluminium.
The SPEEDTEC® 215C supports MIG (manual and synergic), FCAW, Stick (MMA), and Lift TIG processes, offering excellent versatility. Its Power Factor Correction (PFC) improves energy efficiency by up to 30% compared with conventional MIG machines and allows operation on long extension cables or generators.

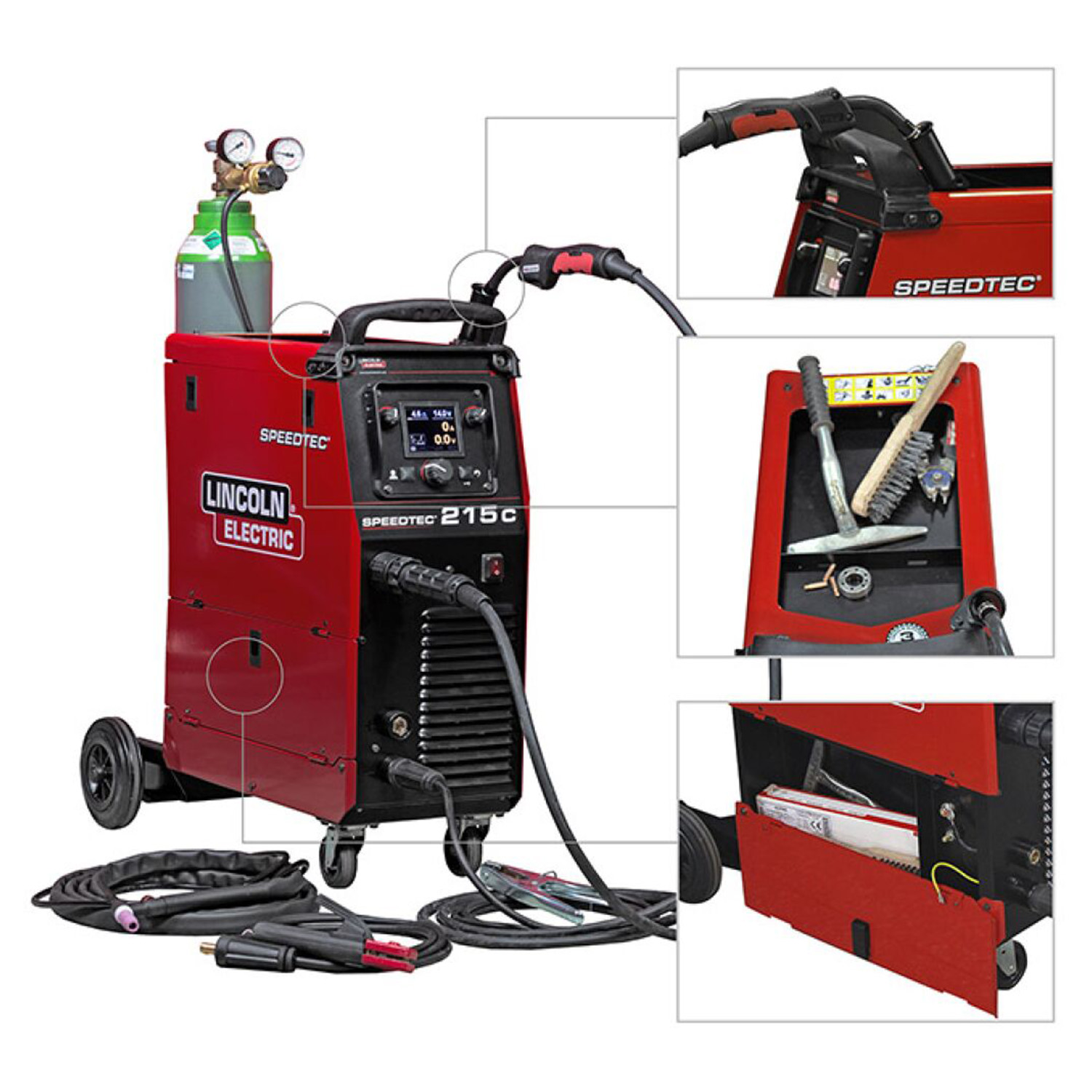

The compact housing accommodates 15 kg wire spools, includes accessory storage, and features ergonomic handles for easy transport. With a weight of about 42 kg, it remains relatively portable for a MIG welder.
The unit includes a 5 m input cable, 3 m ground cable with clamp, 2 m gas hose, and drive rollers for 0.8–1.0 mm solid wire, allowing operators to start welding immediately.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | Lincoln Electric |
| Model | SPEEDTEC® 215C |
| Input Voltage | 115/230 V, single-phase, 50/60 Hz |
| Current Range | 20–200 A |
| Rated Output | MIG: 200 A @ 25% duty cycle; Stick: 160 A @ 25%; TIG: 160 A @ 25% |
| Fuse Size | 16 A (slow) |
| Open Circuit Voltage | 51 V |
| Wire Size Range | Solid: 0.6–1.0 mm; Cored: 0.9–1.1 mm |
| Drive System | 4-roll wire feeder |
| Protection Class | IP23 |
| Weight | 42 kg |
| Dimensions (HxWxD) | 780 × 400 × 750 mm |
| Accessories | Input cable (5 m), ground cable (3 m with clamp), gas hose (2 m), drive rollers (0.8–1.0 mm solid wire) |
| Applications | Steel, stainless steel, aluminium; workshops, maintenance, repair, light fabrication |
| Wire Size Range | Solid: 0.6–1.0 mm; Cored: 0.9–1.1 mm |
