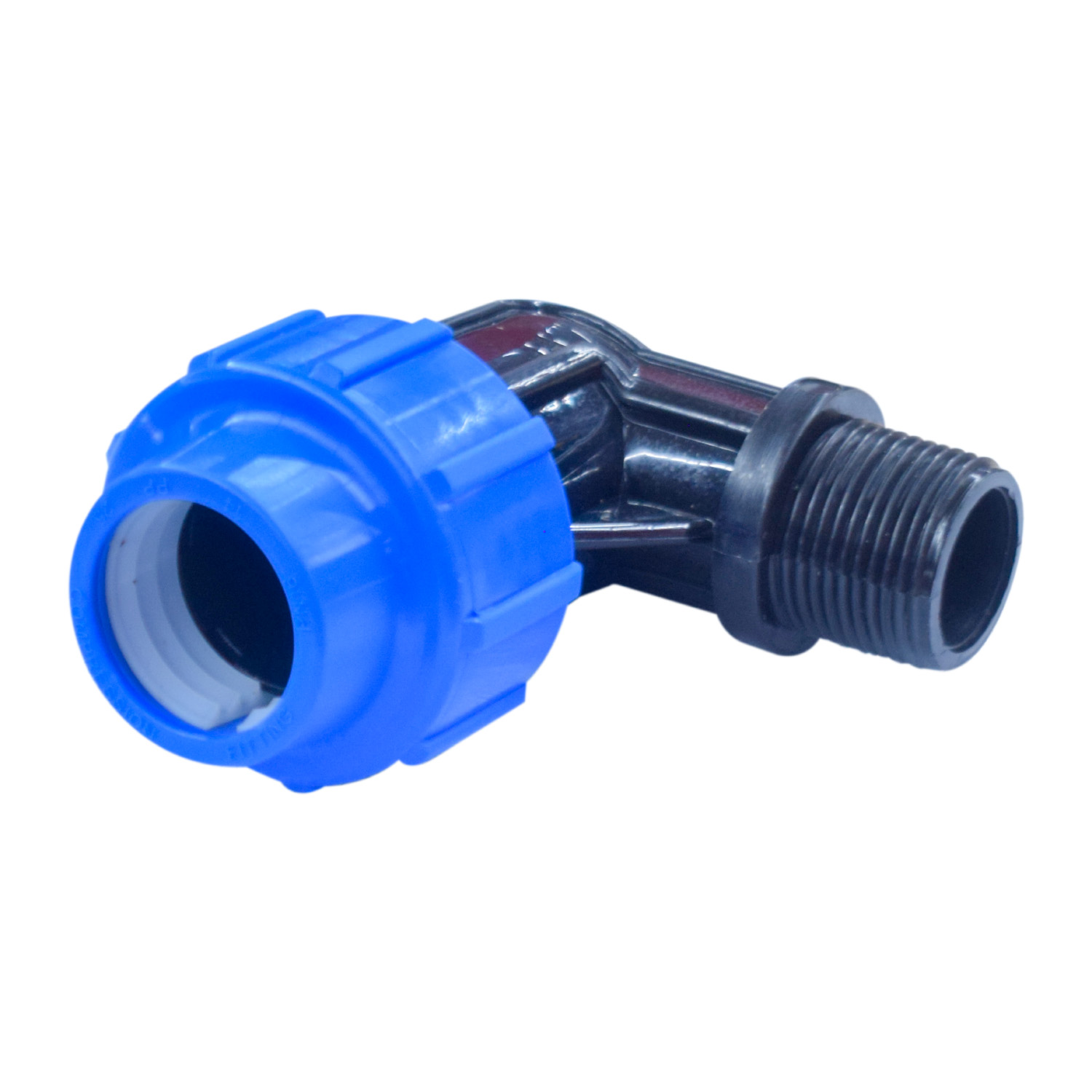

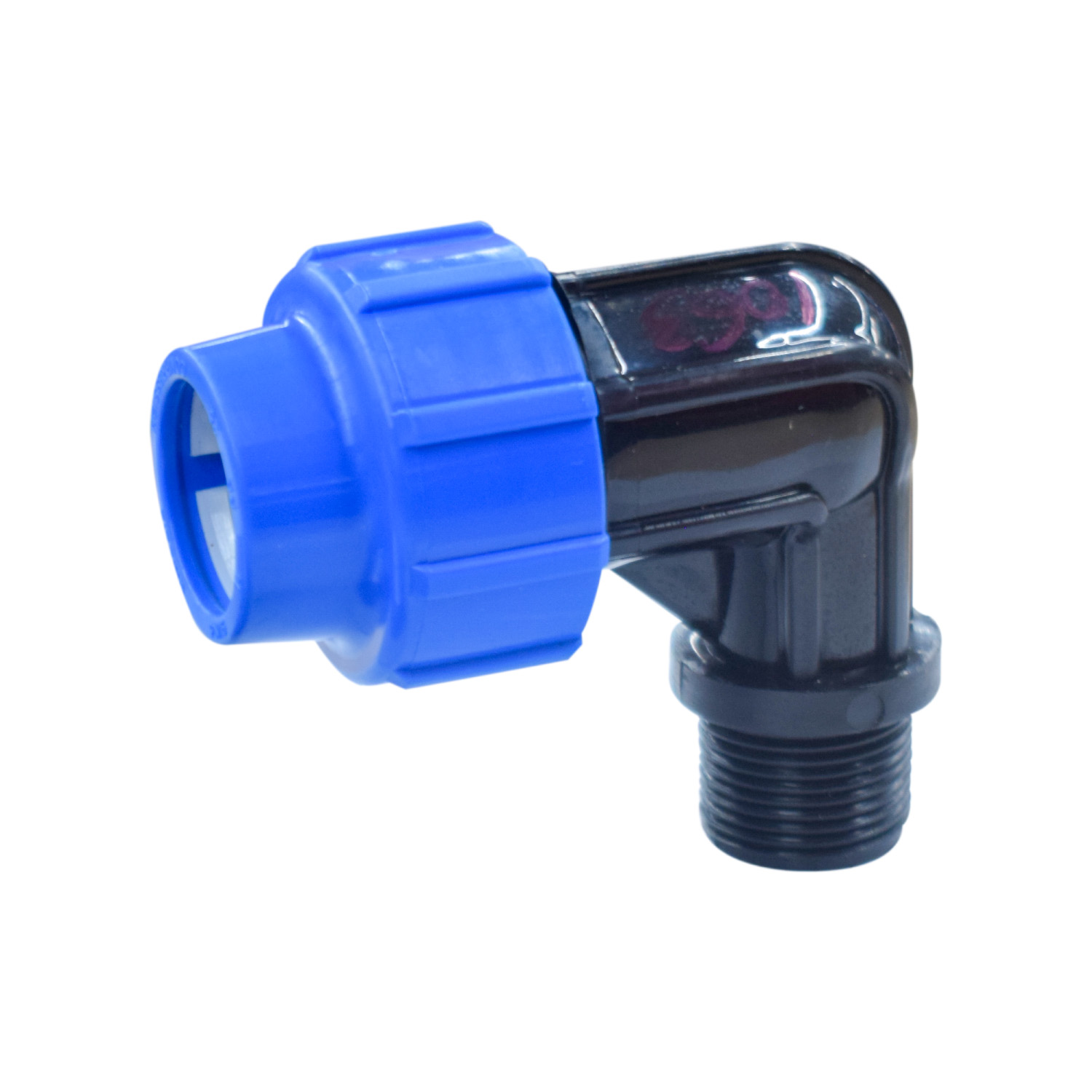

The HYRT PP Compression Male Elbow 40 mm × 1¼” is a mechanical compression fitting designed to create a 90° change of direction in PE piping systems. The blue compression side connects securely to a 40 mm metric PE pipe, while the threaded male end fits standard 1¼” female valves, fittings, or accessories, providing a tight and leak-free connection without welding.
The fitting is manufactured from high-quality polypropylene (PP) or HDPE, offering excellent resistance to corrosion, UV exposure, and environmental stress. It is part of the PN16 pressure class, suitable for working pressures up to 16 bar (for sizes 20–63 mm), and operates in temperatures from -20°C to +60°C, with reduced pressure tolerance at higher temperatures.
Designed for reliability and long service life, this fitting complies with EN12201 standards and is certified for drinking water, irrigation, and water supply systems. Its mechanical compression design allows quick installation using simple tools, making it ideal for agricultural, industrial, and domestic piping networks.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | HYRT |
| Category | Compression fittings |
| Product | Compression fitting – 90° Male Elbow |
| Product Line | Perla |
| Size | 40mm × 1¼” |
| Design | 90° elbow (Compression × Male Thread) |
| Material | Polypropylene (PP) / HDPE |
| Pressure Rating | PN16 (up to 16 bar for smaller sizes) |
| Compatibility | PE80, PE100 pipes (EN12201 compliant) |
| Connection | Compression end for PE pipe + 1¼” male threaded end |
| Certification | DVGW, WRAS, EU standards |
| Features | Push-fit design, watertight seal, silicone-coated O-ring, UV-resistant |
| Temperature Range | -20°C to +60°C |
| Applications | Agricultural irrigation, residential irrigation, potable water distribution |
