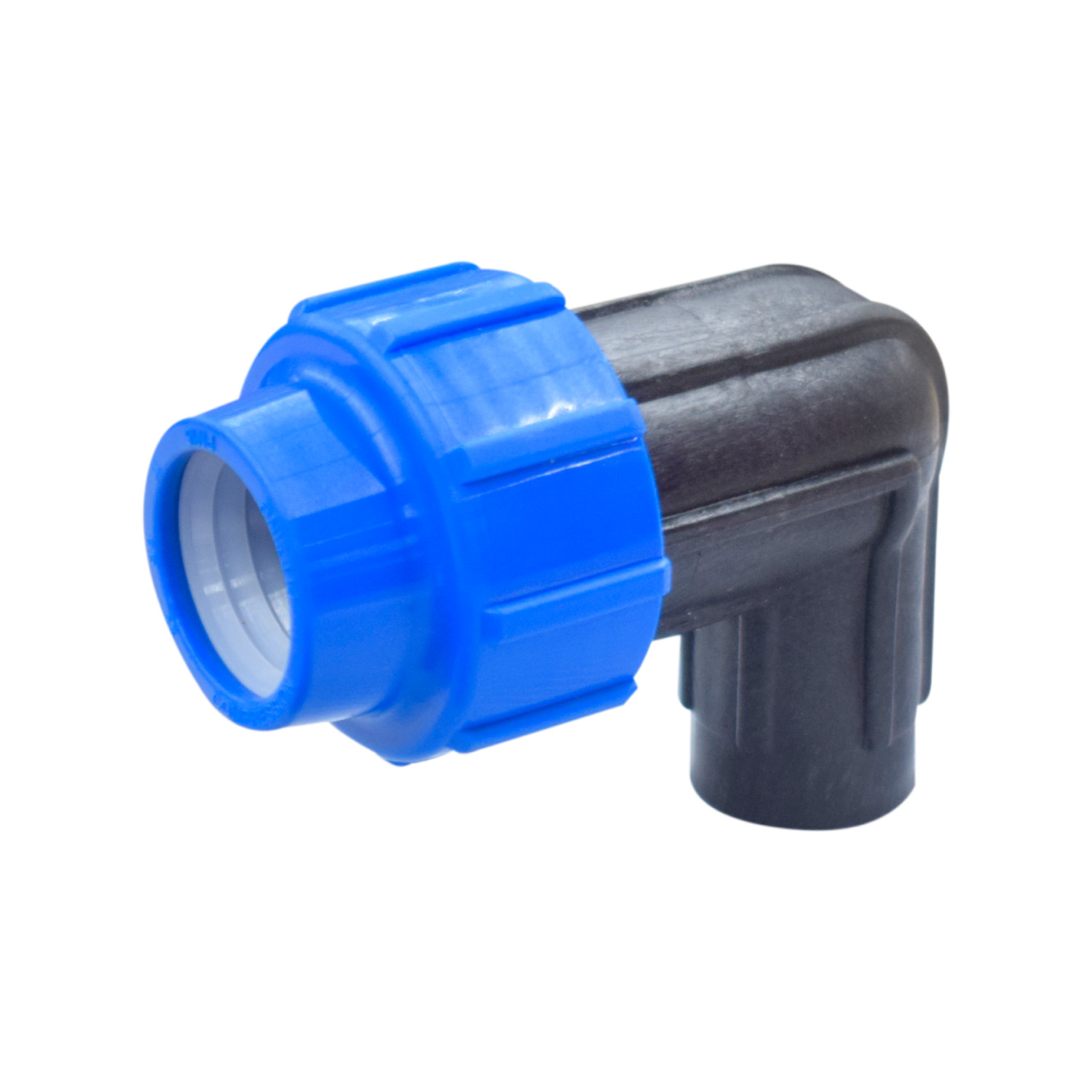

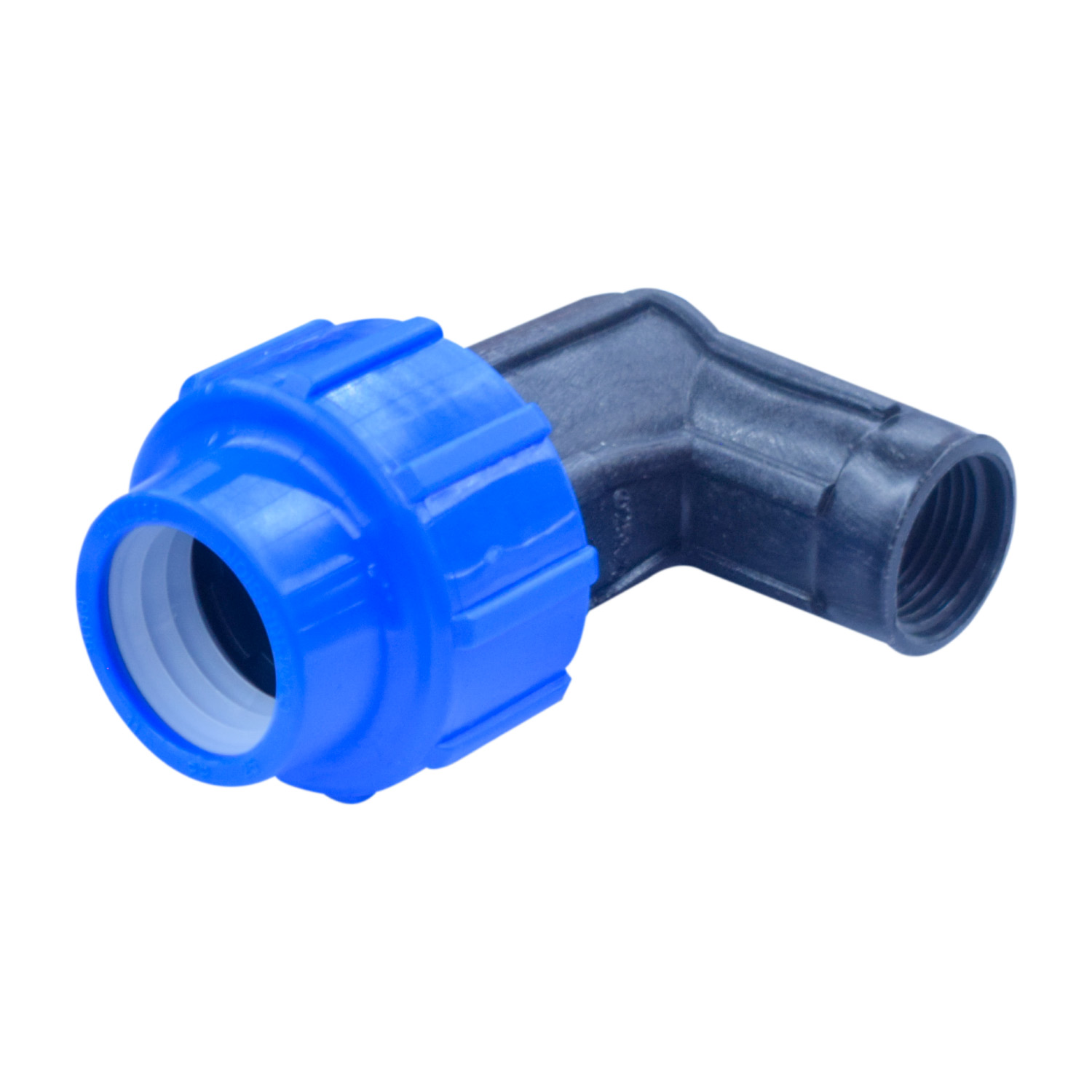

The HYRT PP Compression Female Elbow 25 mm × 1/2″ F is a mechanical compression fitting designed to create a 90° change of direction in PE piping systems. The blue compression end connects securely to a 25 mm metric PE pipe, while the threaded female end allows connection to a 1/2″ male fitting, valve, or accessory, ensuring a tight and leak-free seal without welding or special tools.
Manufactured from high-quality polypropylene (PP) or HDPE, this fitting provides excellent resistance to corrosion, UV radiation, and environmental stress, making it suitable for outdoor and underground installations. It belongs to the PN16 pressure class, supporting working pressures up to 16 bar (for sizes 20–63 mm), and can operate in temperatures from -20°C to +60°C, with pressure limits reduced at higher temperatures.
Compliant with EN12201 standards, the fitting is approved for drinking water, irrigation, and water supply systems. Its mechanical compression design allows quick installation, reliable sealing, and long service life in agricultural, industrial, and domestic piping networks.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | HYRT |
| Category | Compression fittings |
| Product | Compression fitting – 90° Female Elbow |
| Size | 25mm × 1/2″F |
| Design | 90° elbow (Compression × Female Thread) |
| Material | Polypropylene (PP) / HDPE |
| Pressure Rating | PN16 (up to 16 bar for smaller sizes) |
| Compatibility | PE80, PE100 pipes (EN12201 compliant) |
| Connection | Compression end for PE pipe + 1/2″ female threaded end |
| Certification | DVGW, WRAS, EU standards |
| Features | Push-fit design, watertight seal, silicone-coated O-ring, UV-resistant |
| Temperature Range | -20°C to +60°C |
| Applications | Agricultural irrigation, residential irrigation, potable water distribution |
