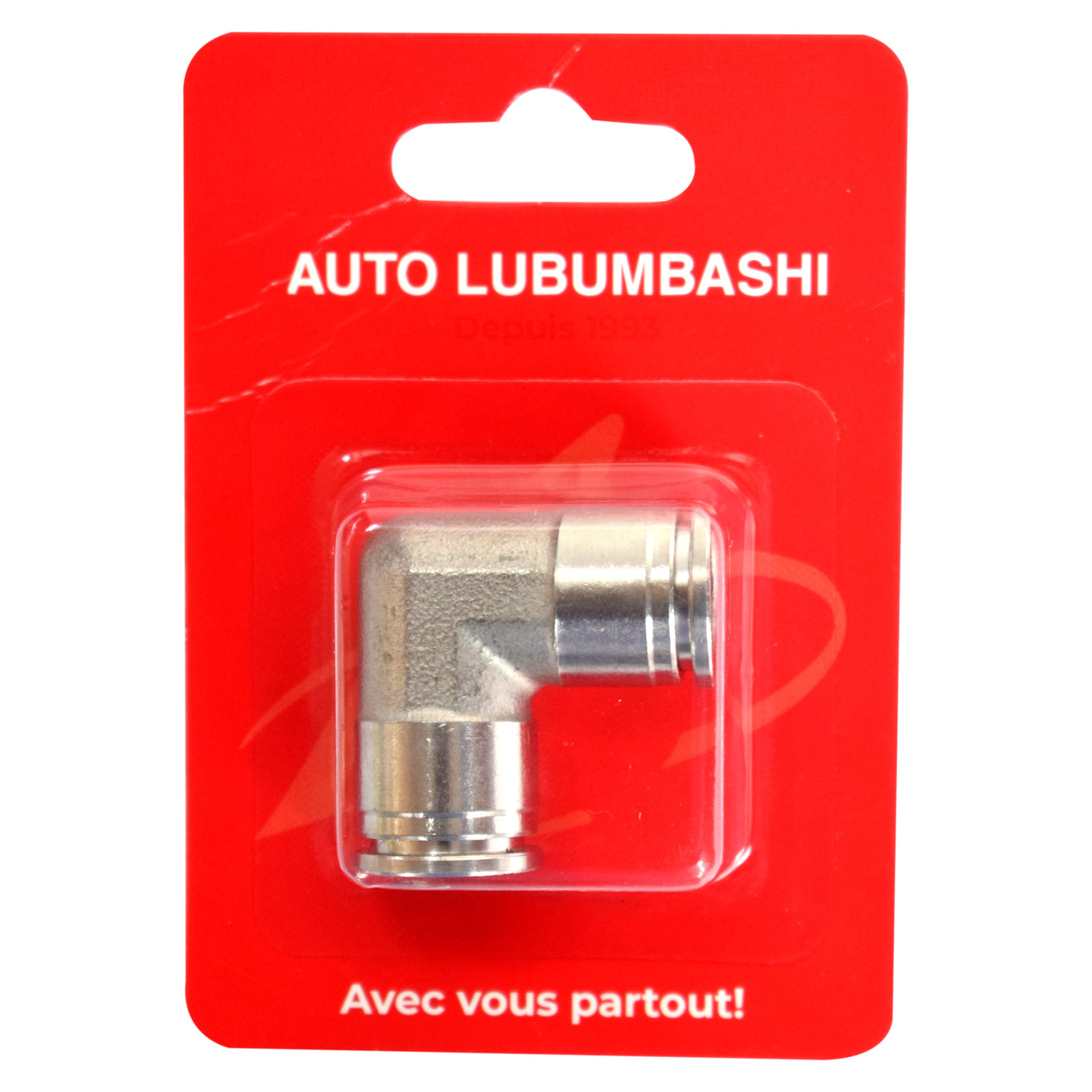

The 90° Stainless Steel Elbow Push-In Fitting is specifically designed for 12 mm external diameter tubing, offering a secure and efficient connection for pneumatic systems, fluid transfer, and automotive air lines.
Constructed from stainless steel, it provides superior corrosion resistance and long service life, even in harsh environments.
Equipped with FKM (VITON) O-rings and packing, the fitting delivers excellent chemical and temperature resistance. Its reusable design allows multiple connections and disconnections without compromising performance.
Operating at pressures up to 215 PSI and temperatures ranging from -20°C to 140°C (-4°F to 284°F), it is suitable for air, water, and steam applications.
This elbow fitting is an essential component for pneumatic and fluid systems, ensuring longevity, resilience, and consistent performance under demanding conditions.
TECHNICAL DETAILS:
| Specification | Details |
| Type | 90° Elbow Push-In Fitting |
| Diameter | 12 mm (OD tubing) |
| Material | Stainless Steel |
| Connection Style | Push-to-connect / One-touch |
| Fluid Type | Air, Water, Steam |
| Operating Pressure | 0–215 PSI |
| Operating Temperature | -4°F to 284°F (-20°C to 140°C) |
| O-Ring | FKM (VITON) |
| Packing | FKM (VITON) |
| Back Ring | Stainless Steel |
| Lock Claws | Stainless Steel |
| Collar | Stainless Steel |
| Sleeve | Stainless Steel |
| Features | Corrosion resistance, reusable design, chemical and temperature resilience |
| Applications | Pneumatic systems, fluid transfer, automotive air lines |
