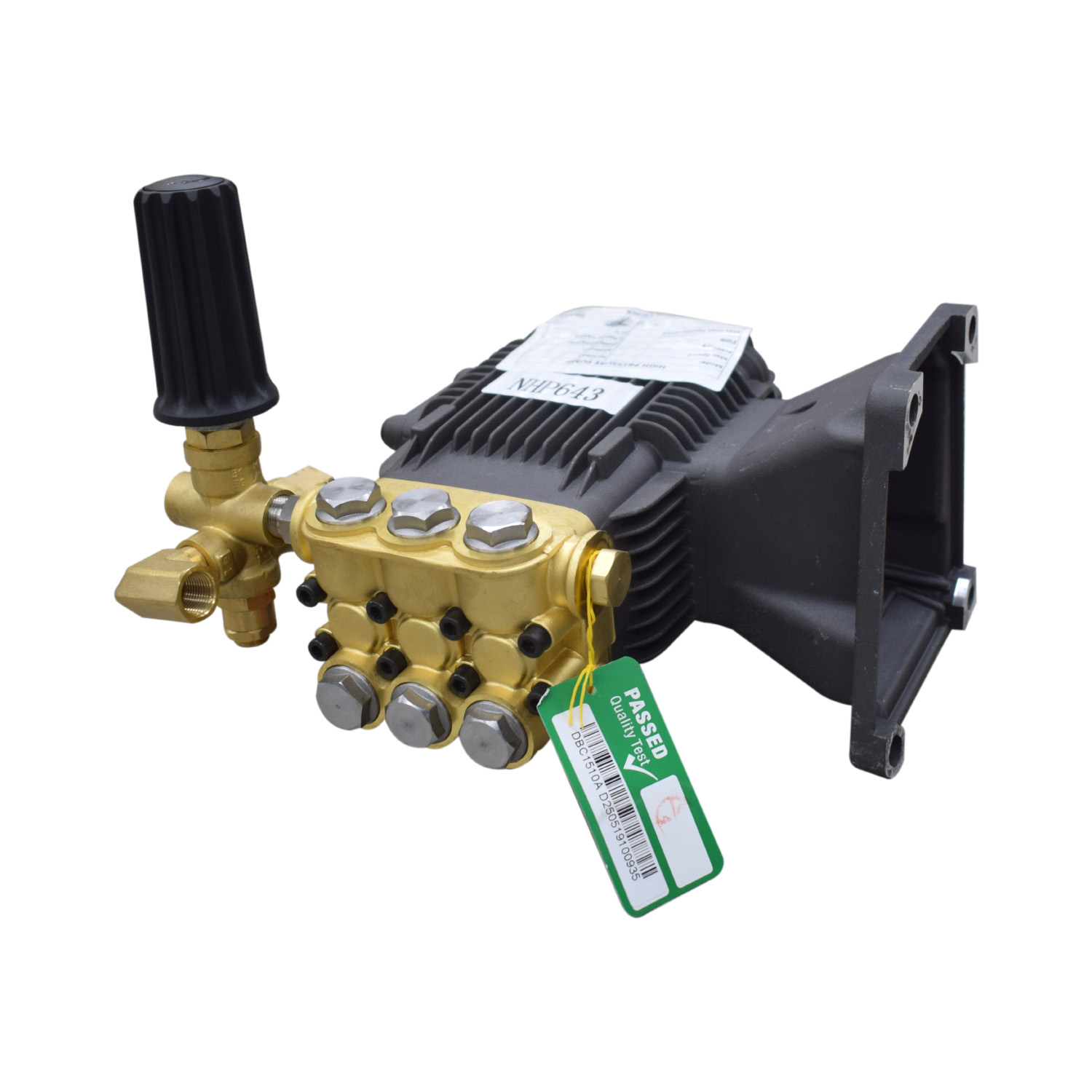

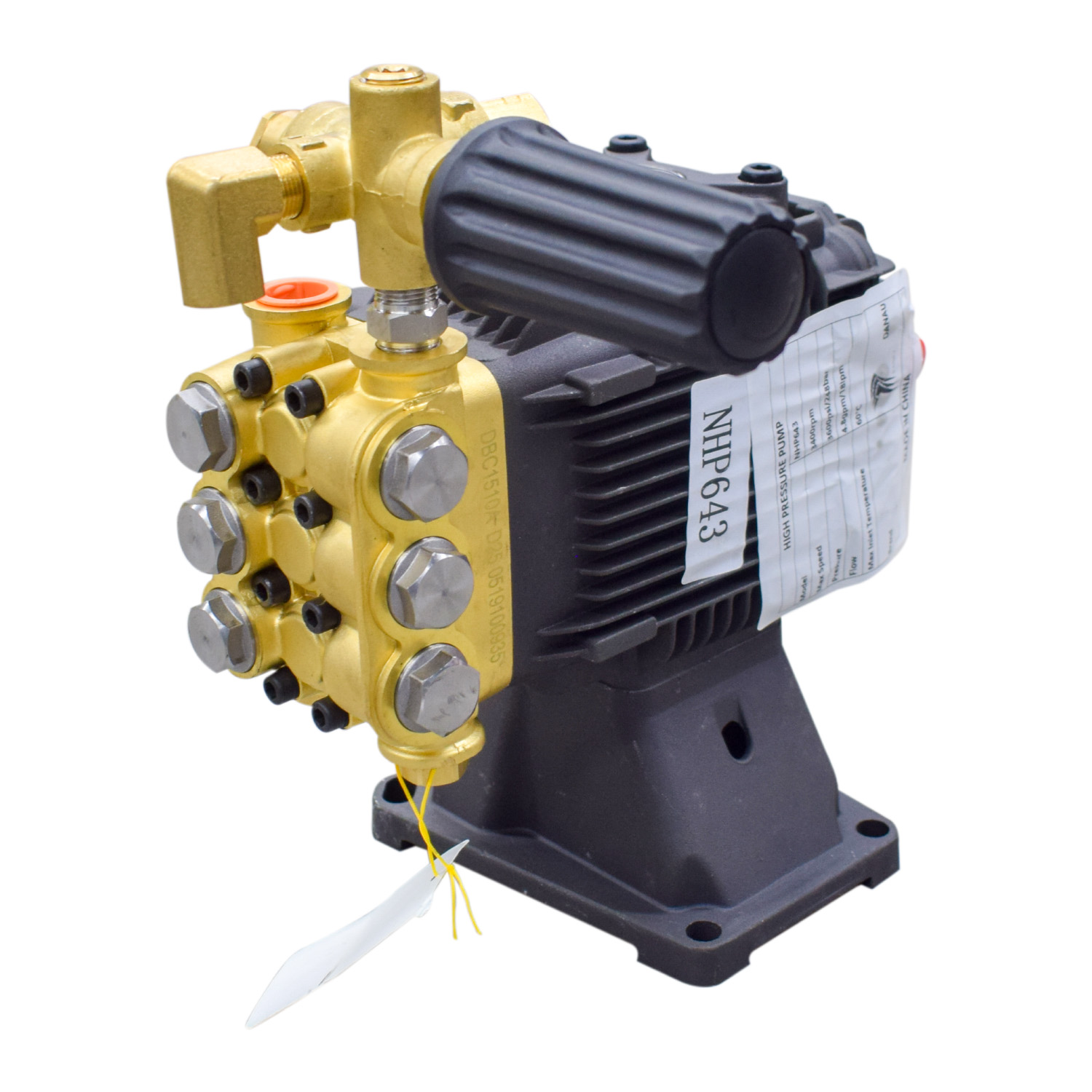

Manufactured by Zhejiang Danau Industries Co., Ltd., this high-pressure pump is designed for durability, stability, and reliable performance in heavy-duty cleaning applications.
It features a forged brass head for excellent corrosion resistance and mechanical strength, paired with an anodized die-cast aluminum crankcase with cooling fins for efficient heat dissipation during continuous operation.
The pump is equipped with ceramic-coated stainless steel plungers and bronze connecting rods, ensuring smooth and quiet operation while extending overall service life.
An external pressure-adjustable unloader valve with built-in detergent injector allows precise control of output pressure and supports soap application for improved cleaning efficiency.
Designed for 13–15 HP horizontal-shaft gasoline engines (Honda GX390 class), the pump operates at 3400 RPM and fits a 1-inch (25.4 mm) hollow shaft configuration.
A sight glass integrated into the crankcase allows quick and easy oil level inspection for proper maintenance.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | DANAU |
| Model | DBC-1510A |
| Product Name | Triplex Plunger Pump |
| Max Pressure | 3600 PSI (248 bar) |
| Flow Rate | 4.7–4.8 GPM (≈18 L/min) |
| Pump Speed | 3400 RPM |
| Engine Compatibility | 13–15 HP horizontal-shaft gasoline engines (Honda GX390 class) |
| Shaft Size | 1″ (25.4 mm) hollow shaft |
| Pump Head Material | Forged brass manifold |
| Crankcase Material | Anodized die-cast aluminum with cooling fins |
| Plungers | Ceramic-coated stainless steel |
| Connecting Rods | Bronze for smooth operation |
| Unloader Valve | External, pressure-adjustable, with detergent injector |
| Inlet Port | 3/4″ BSP (garden hose size) |
| Outlet Port | 3/8″ quick disconnect |
| Oil Bath Capacity | ~550 mL |
| Lubricant Type | SAE 15W-40 non-detergent pump oil |
| Inlet Pressure | 0–50 PSI (3.5 bar) |
| Maximum Inlet Temperature | ≤50°C (122°F) |
| Maintenance Features | Integrated sight glass for oil inspection, splash-type lubrication |
| Applications | Industrial cleaning, vehicle washing, property maintenance, commercial pressure washers |
| Features | Durable brass head, ceramic-coated plungers, bronze connecting rods, external unloader, detergent injection, corrosion-resistant construction |
