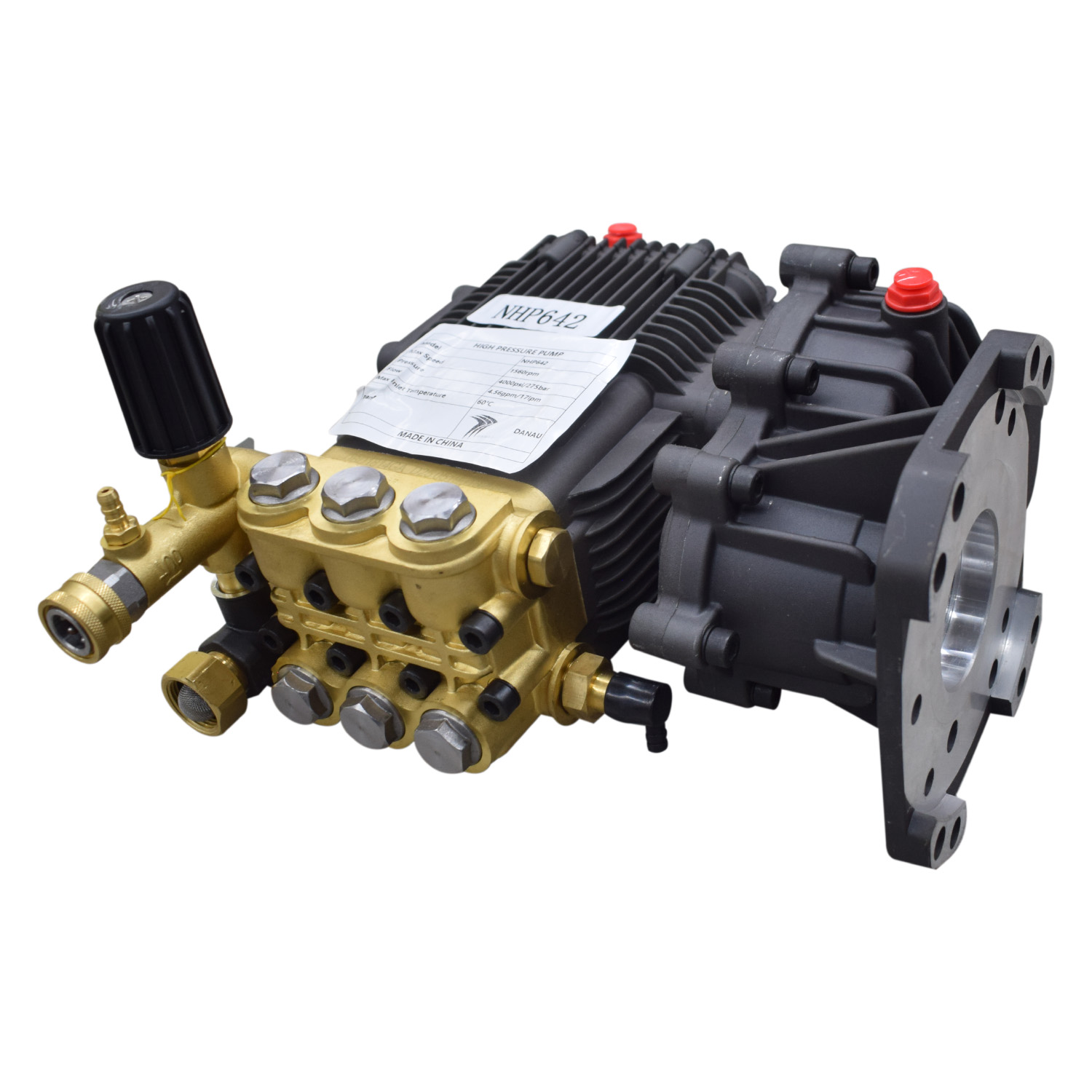

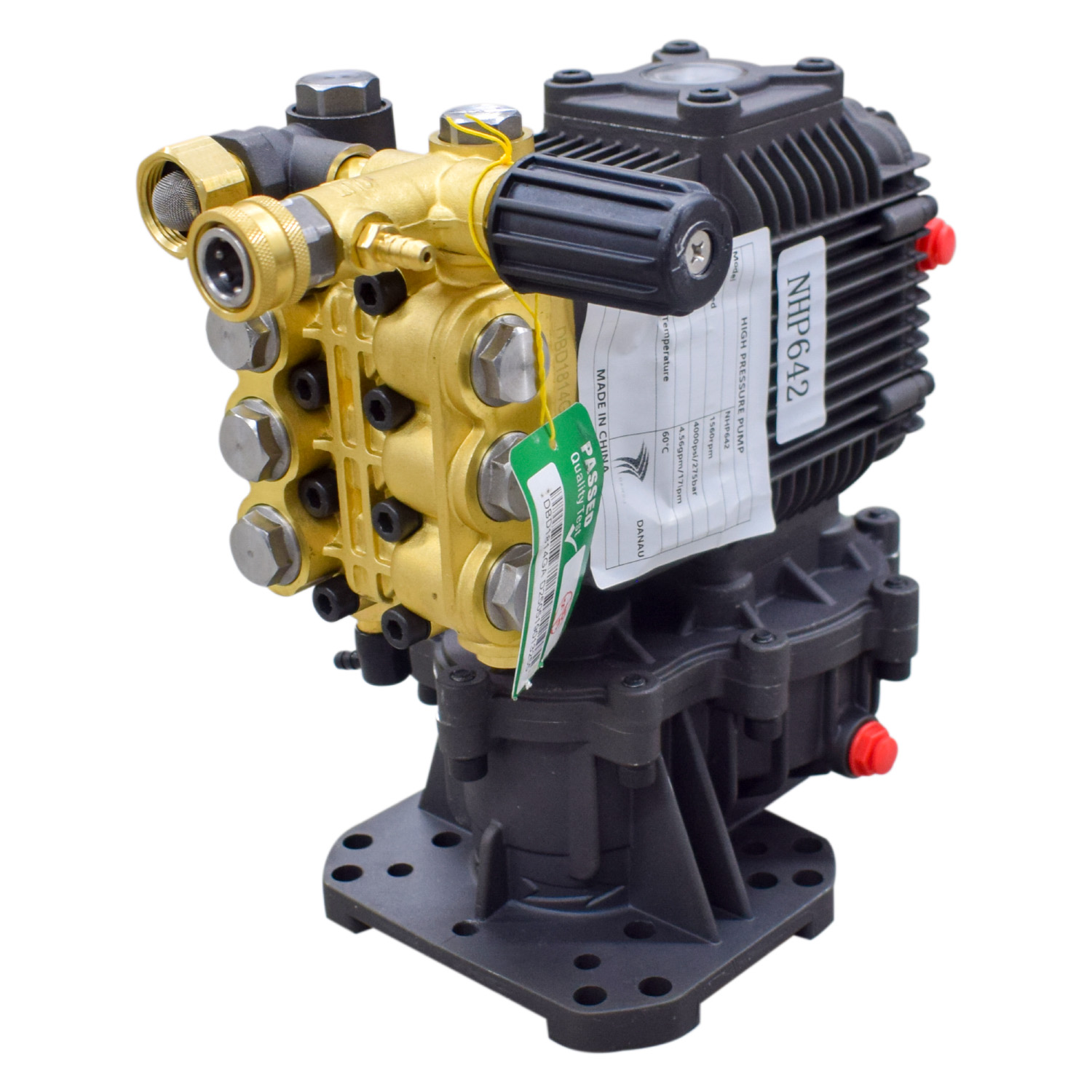

Manufactured by Zhejiang Danau Industries Co., Ltd., this high-pressure pump is built for strength, durability, and reliable performance in heavy-duty cleaning applications.
It features a forged brass head for excellent corrosion resistance and structural strength, combined with an anodized aluminum crankcase that ensures efficient heat dissipation during continuous operation.
The pump is equipped with ceramic-coated stainless steel plungers, designed to reduce wear and extend seal life for improved long-term reliability.
A detachable and pressure-adjustable unloader valve with built-in detergent injector allows precise pressure control and easy soap application.
Designed for 13 HP horizontal gasoline engines (such as Honda GX390 type), the pump operates at 3400 RPM and fits a 1-inch hollow shaft configuration.
It also includes a sight glass for quick oil level inspection and uses SAE 15W-40 non-detergent oil with a splash lubrication system for proper internal lubrication.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | DANAU |
| Model | DBC-1814GA |
| Product Name | Triplex Plunger Pump |
| Max Pressure | 2610–3600 PSI (180–248 bar) |
| Max Flow Rate | 4.0 GPM (15 L/min) |
| Pump Speed | 3400 RPM (direct drive) |
| Engine Compatibility | 13 HP horizontal gasoline engines (Honda GX390 class) |
| Shaft Type | 1″ (25.4 mm) hollow shaft |
| Pump Head Material | Forged brass manifold |
| Crankcase Material | Anodized aluminum |
| Plungers | Solid stainless steel, ceramic-coated |
| Seal Assembly | Precision-ground U-shaped dual-seal design (high/low pressure) |
| Bearings | Double thrust bearings |
| Unloader Valve | Detachable, pressure-adjustable, integrated detergent injector |
| Inlet Connection | 3/4″ garden hose inlet |
| Outlet Connection | 3/8″ quick disconnect outlet (or M22 depending on kit) |
| Oil Bath Capacity | ~550 mL |
| Lubricant Type | SAE 15W-40 non-detergent pump oil |
| Inlet Pressure | 0–50 PSI (3.5 bar) |
| Maximum Inlet Temperature | ≤50°C (122°F) |
| Maintenance Features | Integrated sight glass for oil inspection, easy-access ports |
| Applications | Commercial-grade pressure washer replacement, industrial cleaning, automotive detailing, heavy equipment maintenance |
| Features | Durable brass head, ceramic-coated plungers, adjustable unloader, detergent injection, corrosion-resistant construction |
