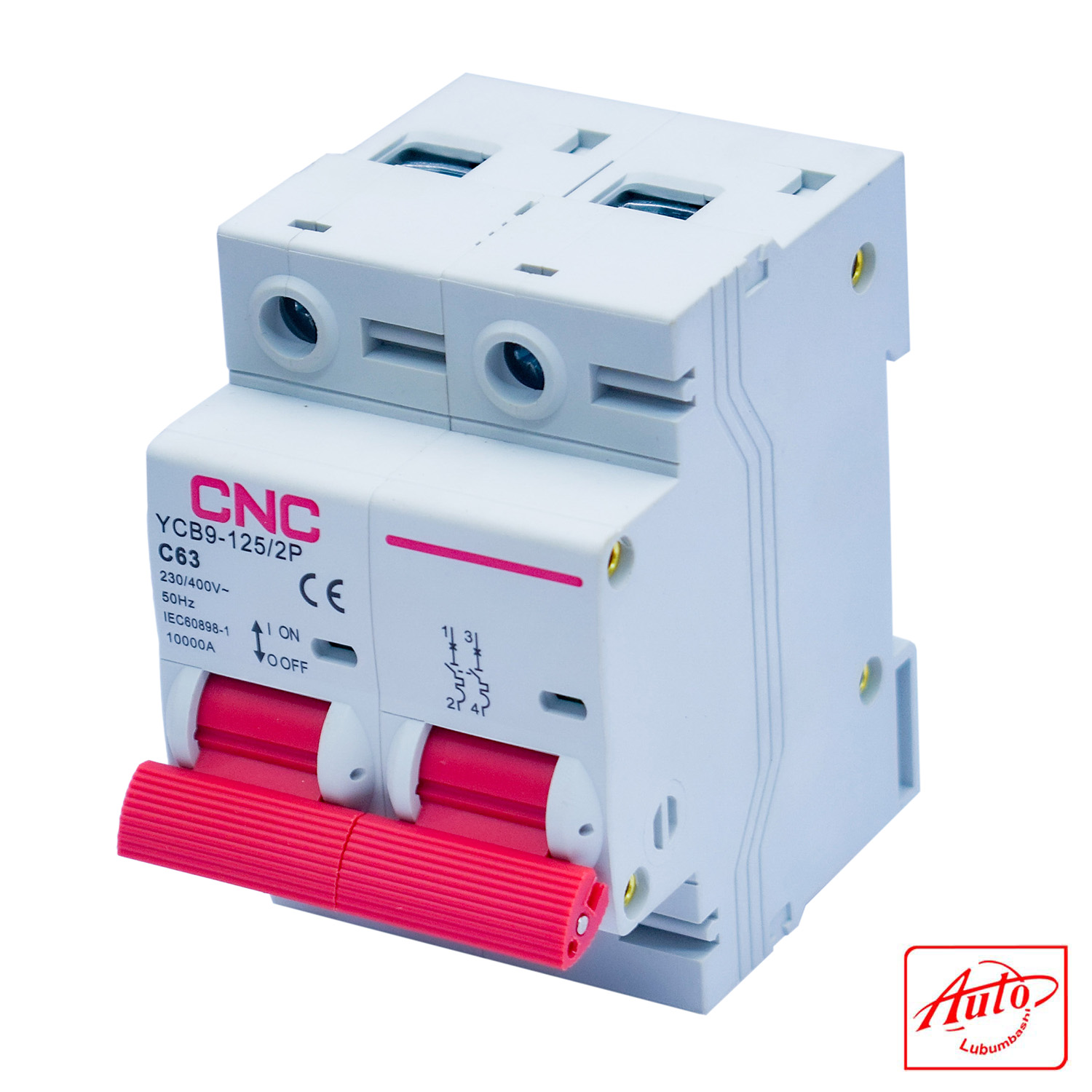

The YCB9-125 2P C63 is a high-performance miniature circuit breaker (MCB) manufactured by CNC Electric, engineered to provide reliable protection against overloads and short circuits in low-voltage electrical systems. With a Type C tripping curve, it is suitable for circuits with moderate inductive loads such as motors and transformers.
This model features a dual-pole configuration, supports AC 230/400V at 50/60Hz, and offers a 10kA breaking capacity, making it suitable for demanding environments. It complies with IEC 60898-1 standards and includes a contact position indicator, DIN rail mounting, and serrated terminals for secure cable connections.
TECHNICAL DETAILS:
| Parameter | Value |
| Model | YCB9-125 |
| Manufacturer | CNC Electric |
| Type | Miniature Circuit Breaker (MCB) |
| Poles | 2P (Double Pole) |
| Rated Current | 63A |
| Tripping Curve | Type C |
| Rated Voltage | AC 230/400V |
| Frequency | 50/60Hz |
| Breaking Capacity | 10kA |
| Standards | IEC 60898-1 |
| Protection | Overload & Short Circuit |
| Mounting | DIN rail (35mm) |
| Terminal Type | Cable / Busbar |
| Max Cable Size | 50 mm² / AWG 18–1/0 |
| Torque | 3.5 N·m |
| Contact Indicator | Yes |
| Protection Level | IP20 |
| Operating Temp | –5°C to +40°C |
| Storage Temp | –25°C to +70°C |
| Mechanical Life | 10,000 operations |
| Electrical Life | 1,500 operations |
