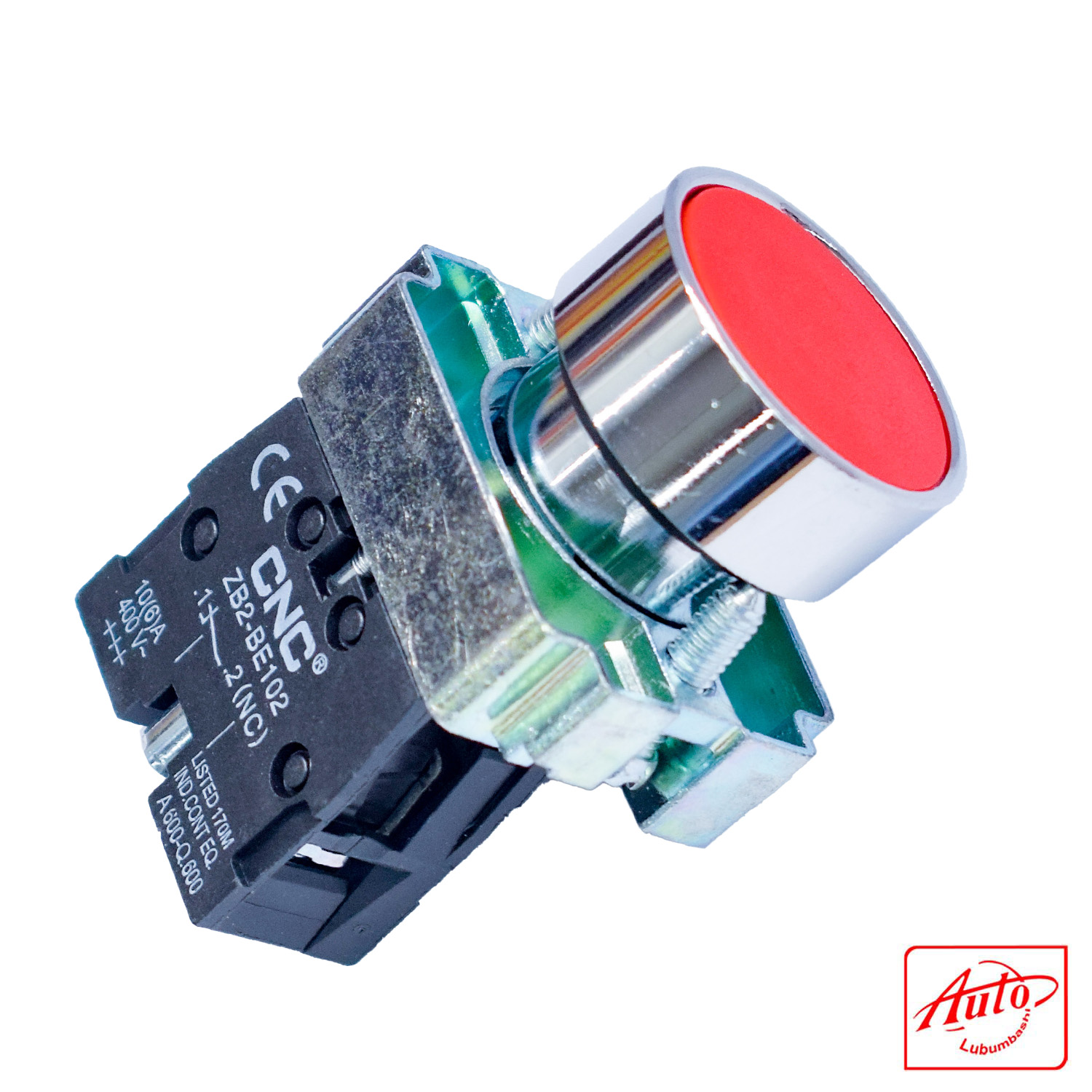

The LAY5-BA42 RED CNC push button is a momentary control switch designed for use in CNC machines, automation systems, and industrial panels. Featuring a flush red actuator and spring return mechanism, it provides reliable tactile feedback for start/stop or emergency functions. The CNC-grade housing ensures enhanced durability and precision fit. Built from zinc alloy and flame-retardant plastic, and equipped with silver alloy contacts, it offers excellent resistance to electrical erosion. Suitable for AC voltages up to 660V and DC voltages below 400V, and compliant with IEC 60947-5-1, GB/T14048.1, and certified CE, RoHS, ISO9001.
TECHNICAL DETAILS:
| Attribute | Specification |
| Model | LAY5-BA42 RED CNC |
| Actuator Type | Red flush round |
| Operation Type | Momentary (spring return) |
| Mounting Diameter | 22mm |
| Rated Voltage (AC) | Up to 660V (50/60Hz) |
| Rated Voltage (DC) | Below 400V |
| Rated Current | 10A |
| Rated Insulation | AC 600V |
| Insulation Resistance | ≥50MΩ |
| Contact Resistance | ≤25mΩ |
| Pf Withstand Voltage | AC 2.5KV/min |
| Voltage Wave Tolerance | ±20% |
| Mechanical Life | 1,000,000 operations |
| Electrical Life | 500,000 operations |
| Material | Zinc alloy + flame-retardant plastic |
| Terminal Type | Screw terminal |
| Protection Level | IP45 / IP65 |
| LED Indicator | No |
| Smart Function | No |
| Certification | CE, RoHS, ISO9001 |
| Standard | IEC 60947-5-1, GB/T14048.1 |
| Application | CNC machines, industrial panels |
