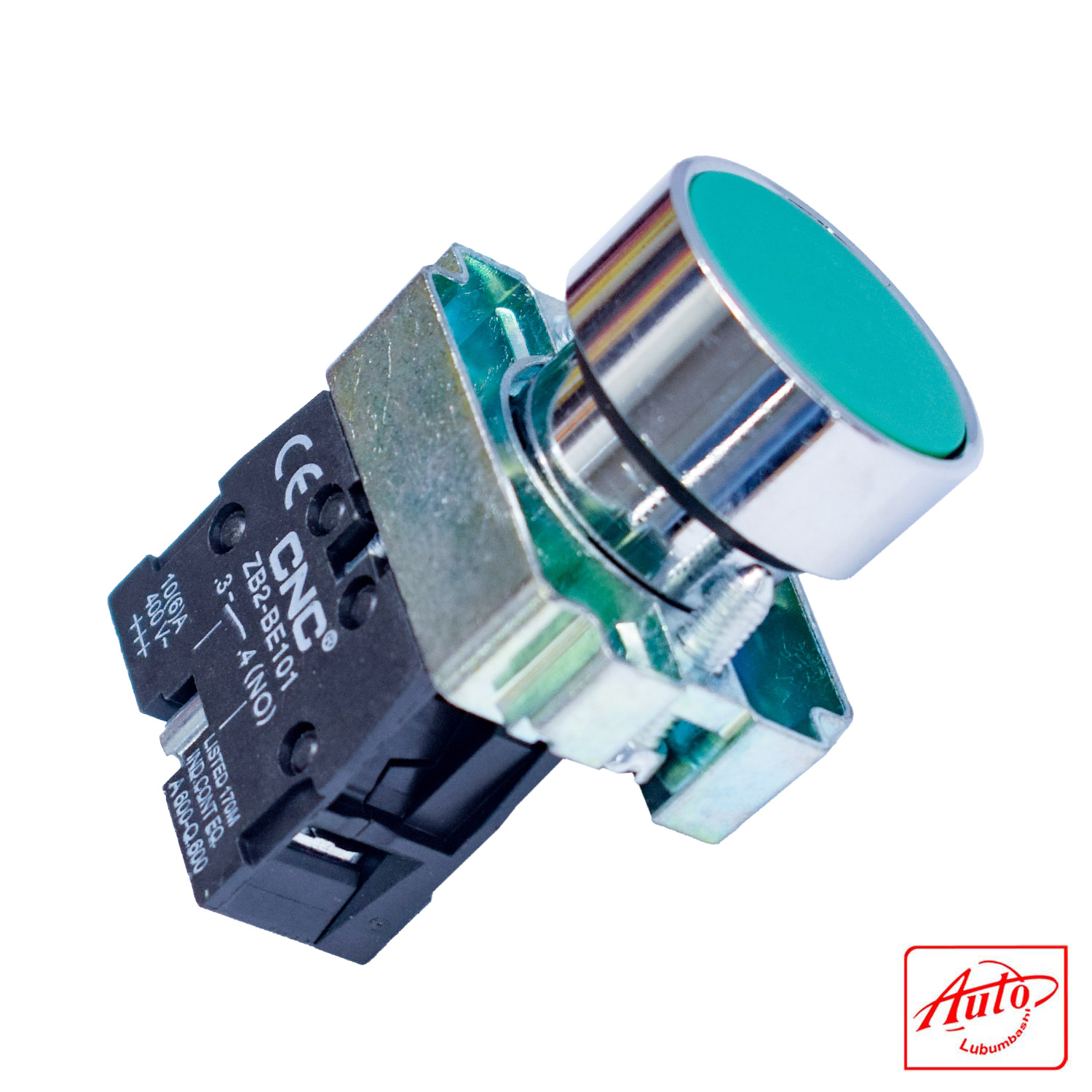

The LAY5-BA31 GREEN CNC is a flush-type push button switch with a built-in green LED indicator, ideal for CNC machines, automation systems, and industrial control panels. Its compact 22mm design fits standard panel cutouts and provides momentary spring-return action for start/stop or signal control. The integrated LED offers visual confirmation of circuit status, enhancing safety and usability. Built with zinc alloy and flame-retardant plastic, and equipped with silver alloy contacts, it ensures high durability and resistance to electrical erosion. Compliant with IEC 60947-5-1 and GB/T14048.1, and certified CE, RoHS, ISO9001, it supports AC voltages up to 660V and DC voltages below 400V.
TECHNICAL DETAILS:
| Attribute | Specification |
| Model | LAY5-BA31 GREEN CNC |
| Actuator Type | Green flush round |
| Indicator Type | Built-in LED (green) |
| Operation Type | Momentary (spring return) |
| Mounting Diameter | 22mm |
| Rated Voltage (AC) | Up to 660V (50/60Hz) |
| Rated Voltage (DC) | Below 400V |
| Rated Current | 10A |
| Rated Insulation | AC 600V |
| Insulation Resistance | ≥50MΩ |
| Contact Resistance | ≤25mΩ |
| Pf Withstand Voltage | AC 2.5KV/min |
| Voltage Wave Tolerance | ±20% |
| Mechanical Life | 1,000,000 operations |
| Electrical Life | 500,000 operations |
| Brightness | 60 cd/m² |
| Continuous Working Life | 100,000 hours |
| Material | Zinc alloy + flame-retardant plastic |
| Terminal Type | Screw terminal |
| Protection Level | IP45 / IP65 |
| Certification | CE, RoHS, ISO9001 |
| Standard | IEC 60947-5-1, GB/T14048.1 |
| Application | CNC panels, industrial control systems |
