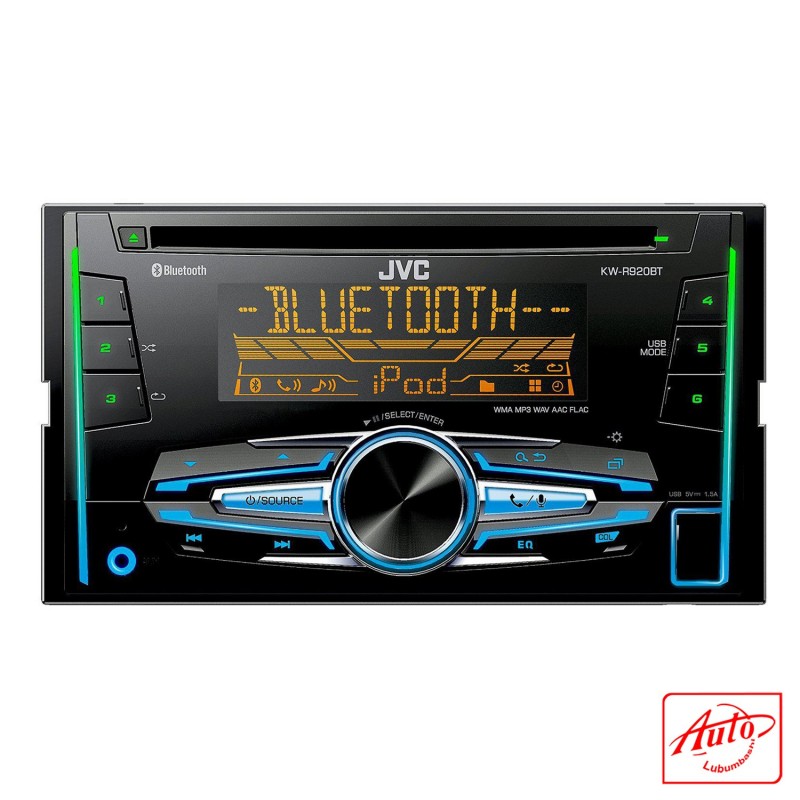

JVC – Built-In Bluetooth – Apple® IPod®- And Satellite Radio-Ready – In-Dash Receiver With Remote
General description
Display
Display Type : 1-Line VA LCD Display
LCD Color : Variable Color
Key Color : Variable Color
Spanish Text Display Compatible : Yes
Auto Dimmer : Yes
Brightness Control : Yes
Media Playback
MP3 Compatible with Tag : CD / USB
WMA Compatible with Tag : CD / USB
WAV Compatible with Tag : USB
FLAC Compatible with Tag : USB
Bluetooth Control
Built-in Bluetooth[1] : Yes (Version 3.0, Wired-Mic included)
2 Phones Full-Time Connection : Yes
Audio Streaming & Control (A2DP, AVRCP): Yes
Voice Dialing : Yes
Siri Eyes Free Mode for iPod/iPhone : Yes
Phone Book Access Profile (PBAP) : Yes
iPhone & Android Automatic Pairing : Yes
Android Control
Android Music Playback : Yes (AUDIO MODE & AUTO MODE)[2]
Pandora Control : Yes (via Bluetooth(R))
iPod/iPhone Control
iPod/iPhone Music Playback : Yes
Pandora Control : Yes (USB)
USB
Position : Front
USB Power Supply : Yes (1.5A)
Drive Change Mode for Mass Storage Class : Yes
Inputs and Outputs
AUX Input : 1 (Front)
Line Output Terminals (Pair) : 3 Pairs (Front + Rear + Subwoofer)
Pre-Output Level : 4.0V
Subwoofer Output Level/Frequency Control : Yes (Level -50 – +10)
Subwoofer Output Level : 4.0V
Tuner
Radio Data System (RDS) : Yes (with Radio Text Plus)
Digital Processing Tuner : Yes
Preset Stations : 18FM + 6AM + 12SW
Strong Station Memory (for FM) : Yes
Radio Timer : Yes (Once/Daily/Weekly)
Tuner Preset Memory (power disconnection) : Yes
FM Frequency Range : 87.5 – 108.0MHz
AM Frequency Range : (MW) 531 – 1,611kHz (9kHz), (SW1) 2,940 kHz to 7,735 kHz (5 kHz step), (SW2) 9,500 kHz to 10,135 kHz (5 kHz step) / 11,580 kHz to 18,135 kHz (5 kHz step)
Audio
Maximum Power Output : 50W x 4 / 50W x 2 +Subwoofer (4 ohms) 50W x 1
Full Bandwidth Power (at less than 1%THD) : 22W x 4
MOS-FET Amplifier : Yes
Subwoofer Direct Connection (Mono Lch) : Yes
EQ : Yes (13-Band Graphic EQ)
Preset EQ : Yes (8-preset)
Bass Boost : Yes
Loudness Control : Yes (Off/Low/High)
High-Pass Filter/Low-Pass Filter : Yes/Yes
K2 Technology : Yes
Space Enhancement : Yes
Sound Response : Yes
Sound Lift : Yes
Volume Link EQ : Yes
General
Wireless Remote Control : Yes
Steering Remote Control Ready : Yes
Dimensions (W x H x D)
Installation Size : 197.8 x 103.3 x 157.5mm
Weight : 1.3kg
Unit weight in individual package : 1.7kg
