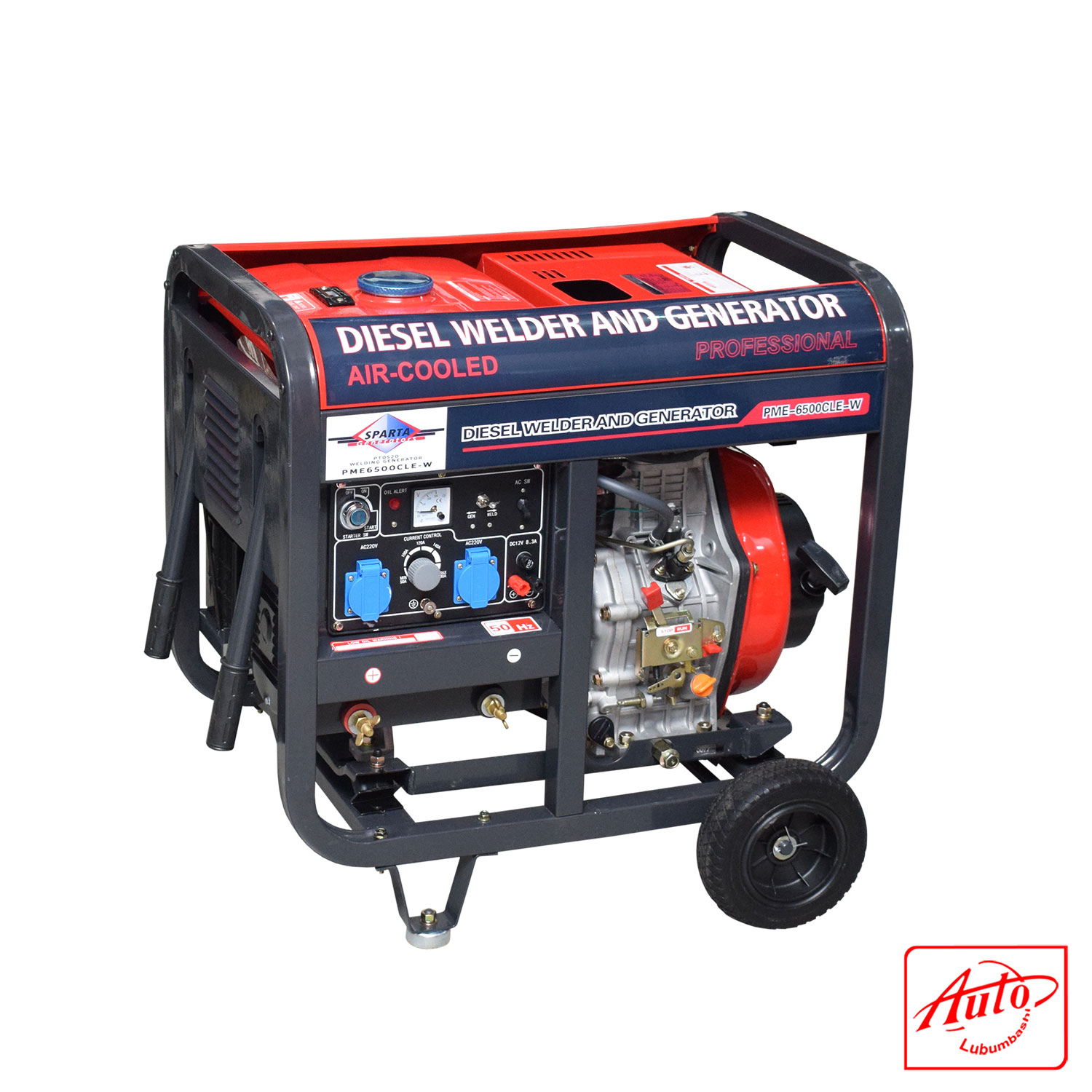

The Sparta – PME-6500CLE-W is a versatile two-in-one machine, functioning both as a diesel generator and a manual metal arc (MMA) welder. Built with a single-cylinder, vertical, air-cooled, 4-stroke diesel engine, it ensures durability and consistent performance in demanding environments.
As a welder, it provides an adjustable current range of 50–180A, with a rated welding current of 160A and a secondary no-load voltage of 50–65V. This makes it suitable for stick welding tasks using electrodes up to 4.0 mm, ideal for construction, repair, and fieldwork.
As a generator, it delivers 2.0–2.2 kW continuous output (50 Hz), with 220V single-phase AC outlets for powering tools and equipment, plus a 12V DC output (8.3A) for battery charging. Its 12.5 L fuel tank supports 6.5 hours of continuous operation at 50 Hz.
The machine is designed with portability in mind, featuring an open frame, wheel kit, and handle for easier movement on-site. Noise levels are rated at 80 dB(A) at 7m, balancing power with manageable operation.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | Sparta |
| Model | PME-6500CLE-W |
| Type | Portable Diesel Welder & Generator (Single-Phase) |
| Engine | PME186FA(E), single-cylinder, vertical, air-cooled, 4-stroke diesel |
| Starting System | Recoil start or electric start |
| Rated Welding Current | 160 A |
| Welding Current Range | 50–180 A |
| Secondary No-Load Voltage | 50–65 V |
| Rated Working Voltage | 25–30 V |
| Rated Input Capacity | 2.0–2.2 kW (50 Hz) |
| Rated Voltage | 220 V (single-phase) |
| Rated Frequency | 50 Hz |
| Power Factor | 1.0 or 0.8 |
| Fuel Tank Capacity | 12.5 L |
| Continuous Running Time | 6.5 h (50 Hz); 5.5 h (60 Hz) |
| Noise Level | 80 dB(A) at 7m |
| Cooling Type | Air cooling |
| Weight (N.W/G.W) | 115 / 119 kg |
| Applications | Welding, battery charging, powering tools, construction sites, field repairs |
