The Dahua NVR4000-4KS2/L Lite Series introduces affordable yet powerful NVRs supporting 4K and H.265 encoding technology. Designed for applications requiring detailed image processing, it delivers 4K resolution capability and can serve as edge storage, central storage, or backup storage.
Its cost-effective and easy-to-install design makes it ideal for public safety, water conservancy, transportation, city centers, education, and financial institutions. It is compatible with numerous third-party devices, making it a flexible solution for surveillance systems independent of a VMS. With open architecture, it supports multi-user access and complies with ONVIF Profiles S, T, G, ensuring interoperability with IP cameras.
Key functions include:
- Perimeter Protection by Camera: Filters false alarms caused by animals, leaves, or lights.
- Face Detection by Camera: Deep learning algorithm for detection, tracking, optimization, and best snapshot output.
- SMD Plus by Camera: Categorizes motion targets and filters irrelevant alarms.
- People Counting by Camera: Tracks human targets to provide accurate entry/exit statistics and generates reports.
- Smart Codec: Scene-adaptive rate control for higher efficiency than H.265/H.264.
- DMSS App: Enables remote monitoring, live video, push notifications, and playback on iOS/Android devices.
TECHNICAL DETAILS:
| Specification | Details |
| Main Processor | Industrial-grade embedded processor |
| Operating System | Embedded Linux |
| User Interface | Web; Local GUI |
| Perimeter Protection by Camera | 8 channels |
| Face Detection by Camera | 4 channels; 6 attributes (gender, age, glasses, expression, mask, beard) |
| SMD Plus by Camera | 8 channels |
| AI Search | Search by channel, time, event type, or face attributes |
| Video Access Channels | 8 |
| Network Bandwidth | 80 Mbps access; 80 Mbps storage; 60 Mbps forwarding |
| Supported Resolutions | 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1 |
| Decoding Capability | 8 × 1080p@30 fps |
| Video Output | 1 × VGA; 1 × HDMI (simultaneous, up to 4K) |
| Multi-Screen Display | 1, 4, 8, 9 views |
| Third-Party Camera Access | ONVIF; RTSP |
| Video Compression | Smart H.265/H.265/Smart H.264/H.264/MJPEG |
| Audio Compression | PCM; G711A; G711U; G726; AAC |
| Network Protocols | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search; P2P; Auto Registration |
| Mobile Access | Android; iOS |
| Interoperability | ONVIF (Profiles T/S/G); CGI; SDK |
| Browser Support | Chrome; IE9+; Firefox |
| Playback | Up to 8 channels simultaneously |
| Recording Modes | Manual; Alarm; SMD; Smart recording |
| Storage | 1 SATA III port (up to 10 TB); network storage |
| Backup | USB device |
| Playback Functions | Play, pause, stop, slow, fast, backward, frame-by-frame; full screen; backup; zoom; audio on/off |
| General Alarms | Motion detection; privacy masking; video loss; scene change; PIR alarm; IPC alarm |
| Anomaly Alarms | Camera disconnection; storage error; disk full; IP/MAC conflict; login lock; cybersecurity exception |
| Intelligent Alarms | Face detection; perimeter protection; IVS; people counting; heat map; SMD |
| Alarm Linkage | Recording; snapshot; audio; buzzer; log; preset; email |
| External Ports | 1 × RCA input; 1 × RCA output; 2 × USB 2.0 (front/back); 1 × HDMI; 1 × VGA; 1 × RJ-45 (10/100 Mbps); 8 × PoE |
| Power Supply | DC48 V/53 V, 2A/1.8A |
| Power Consumption | |
| Net Weight | 0.92 kg (2.03 lb) |
| Gross Weight | 2.07 kg (4.56 lb) |
| Product Dimensions | 260 × 232.5 × 50.3 mm (10.24″ × 9.15″ × 1.98″) |
| Package Dimensions | 117 × 373 × 307 mm (4.61″ × 14.69″ × 12.09″) |
| Operating Temperature | –10 °C to +55 °C |
| Storage Temperature | 0 °C to +40 °C |
| Operating Humidity | 10%–93% |
| Storage Humidity | 30%–85% |
| Operating Altitude | ≤ 3000 m |
| Installation | Desktop mounted |
| Certifications | CE (EN62368-1; EN55032; EN55024; EN55035; EN61000-3-2; EN61000-3-3; EN50130-4); FCC Part 15 Subpart B |

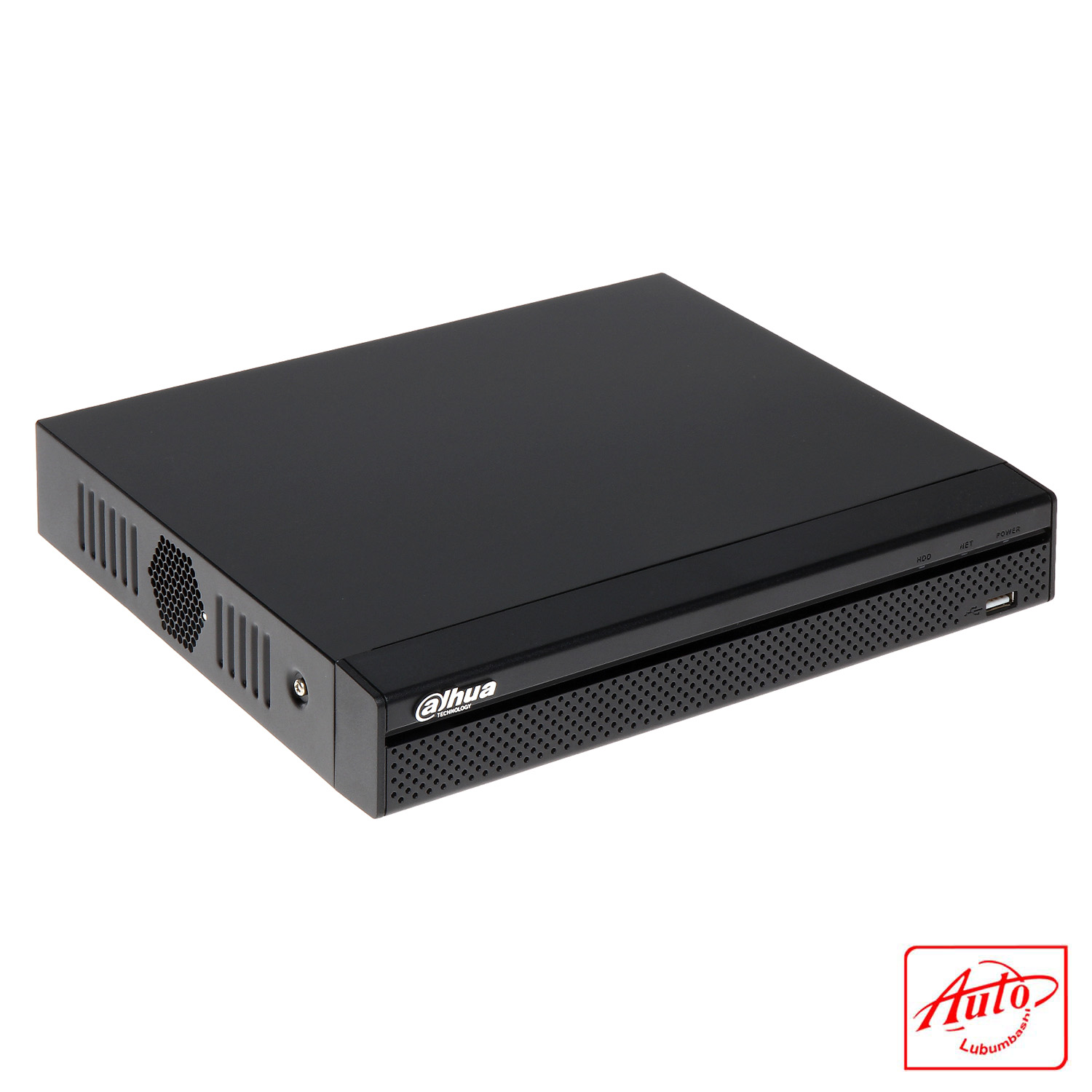

| Ordering Information | Model: DHI-NVR4108HS-8P-4KS2/L – 8 Channel Compact 1U 1HDD 8PoE NVR |
