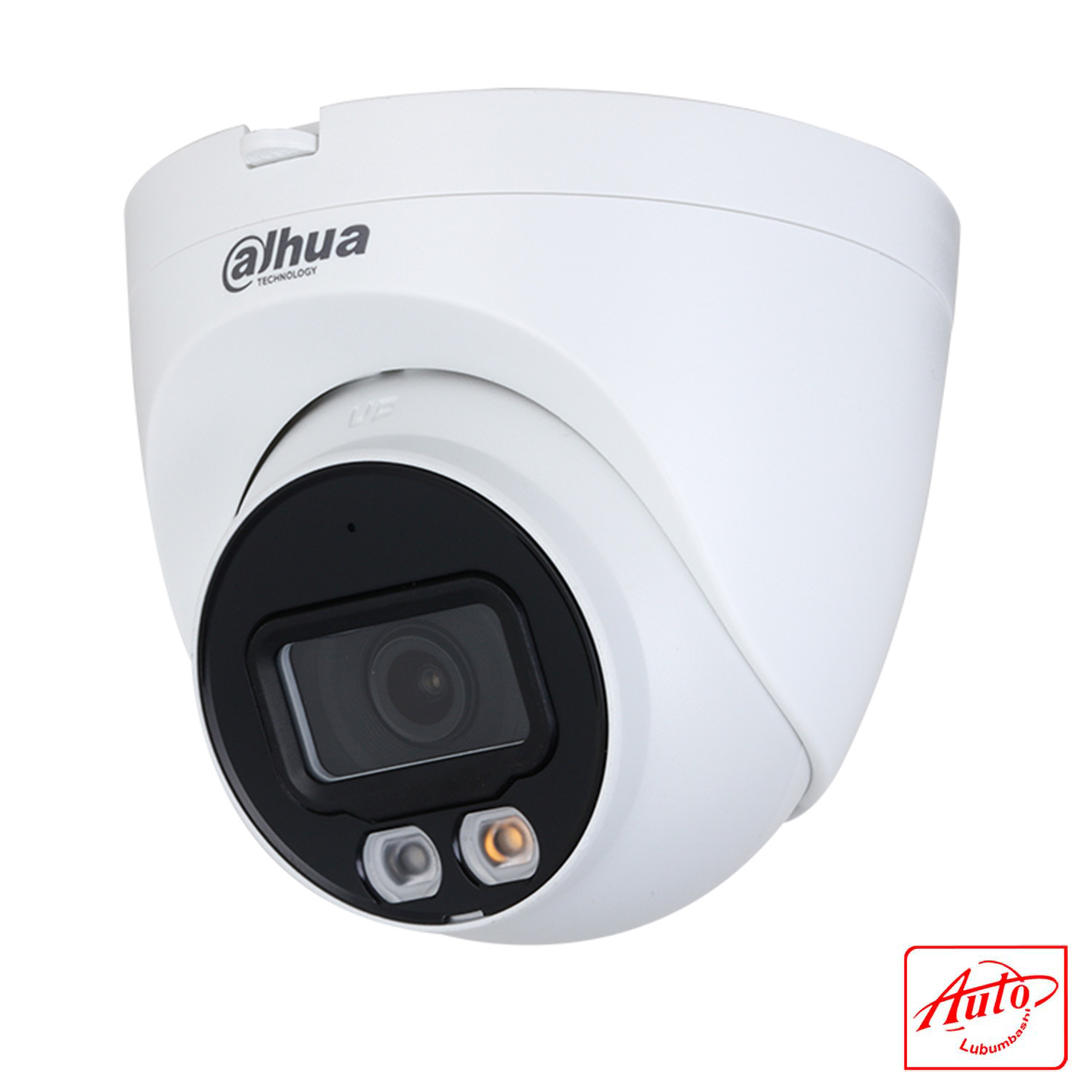

The Dahua DH-IPC-HDW2549TP-S-IL WizSense Eyeball Camera delivers sharp surveillance with a 1/2.7” CMOS sensor and 5MP resolution (2960 × 1668 @20 fps). It supports Smart H.265+/H.264+ compression, reducing bandwidth and storage while maintaining high-quality video.
Equipped with dual illumination (IR and warm light), the camera ensures clear imaging up to 30 meters in both color and monochrome modes. Advanced features include WDR, 3D noise reduction, BLC, HLC, ROI, digital watermarking, and image rotation.
Intelligent monitoring functions such as intrusion detection and tripwire support accurate classification of vehicles and humans. Abnormality detection includes motion detection, video tampering, audio detection, SD card errors, network disconnection, IP conflict, illegal access, and voltage detection.
With built-in microphone, Micro SD card support up to 256 GB, and PoE/DC12V power supply, installation is simple and flexible. The IP67-rated housing ensures durability in outdoor environments, while SMD Plus technology enhances detection accuracy.
TECHNICAL DETAILS:
| Specification | Value |
| Image Sensor | 1/2.7” CMOS |
| Max Resolution | 2960 × 1668 (5MP) |
| Supported Output | 2688 × 1520 @25/30 fps |
| Compression | H.265, H.264, MJPEG |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Illumination | IR LED + Warm light, up to 30m |
| Functions | WDR, 3D NR, BLC, HLC, ROI, Digital watermarking, Rotation mode |
| Intelligence | Intrusion, Tripwire (vehicle/human classification) |
| Abnormality Detection | Motion, video tampering, audio detection, SD card errors, network/IP issues, voltage detection |
| Audio | Built-in microphone; G.711a, G.711Mu, PCM, G.726 |
| Storage | Micro SD card (up to 256 GB), FTP, SFTP |
| Power Supply | DC12V / PoE (802.3af) |
| Protection | IP67 |
| Certifications | CE-LVD, CE-EMC, FCC |
