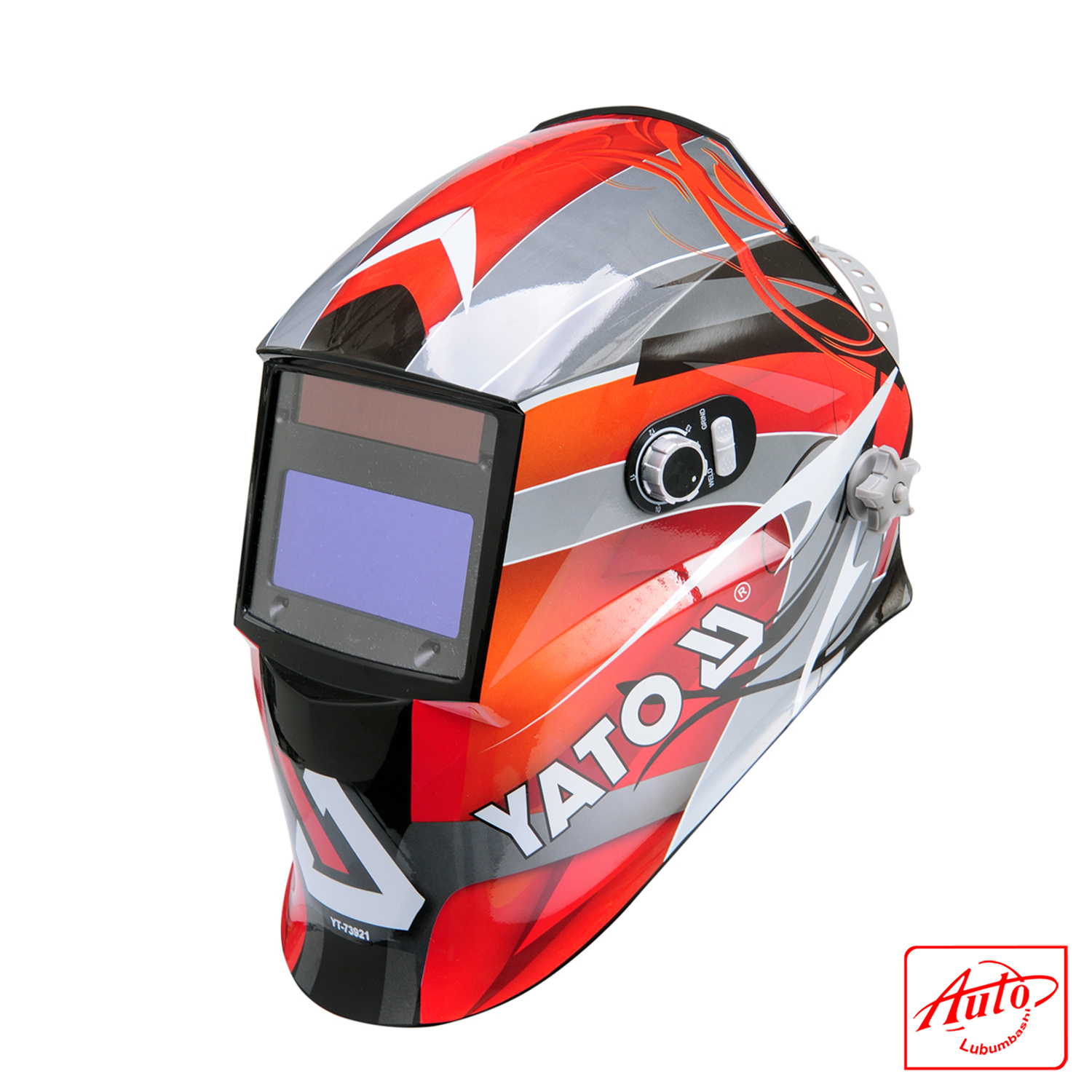

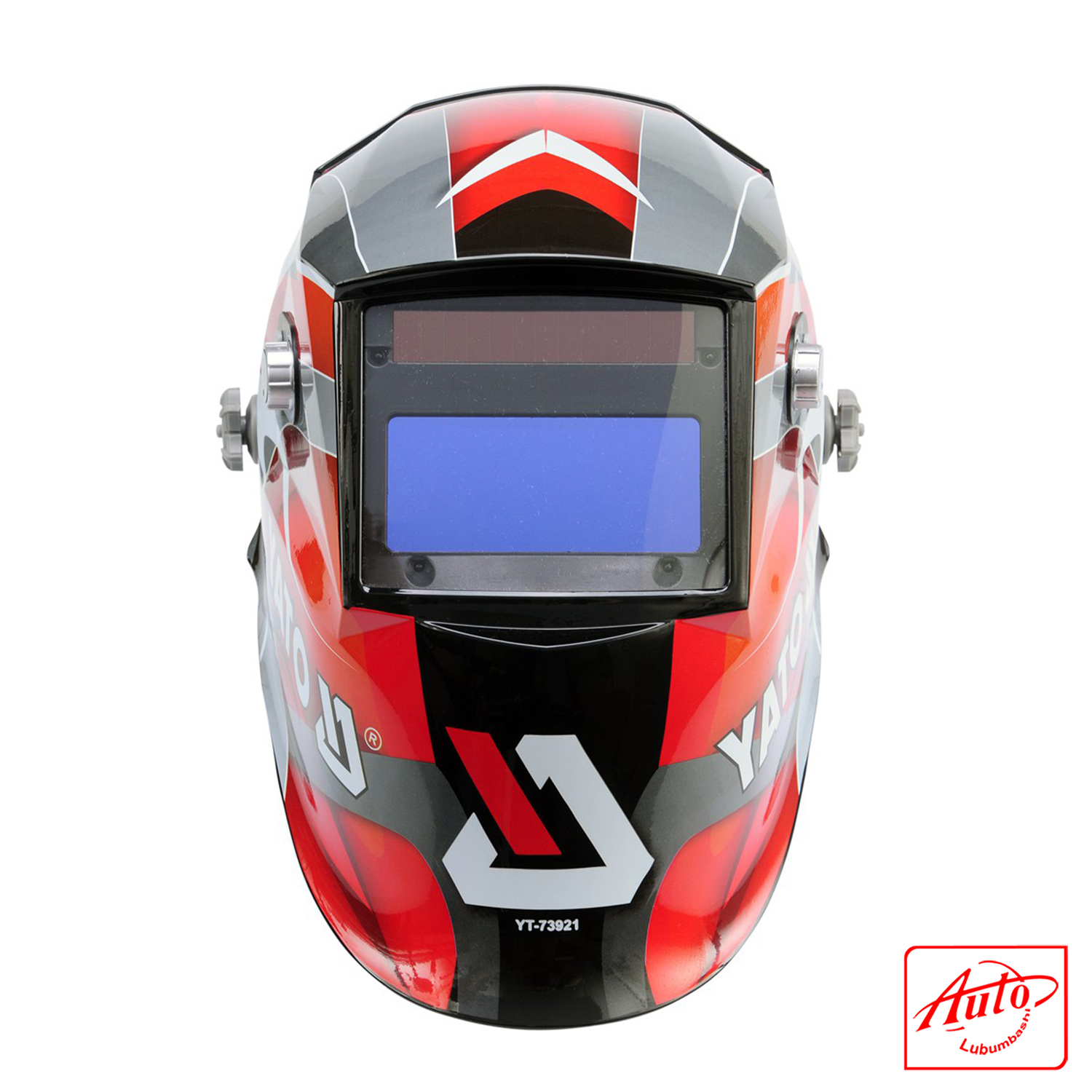

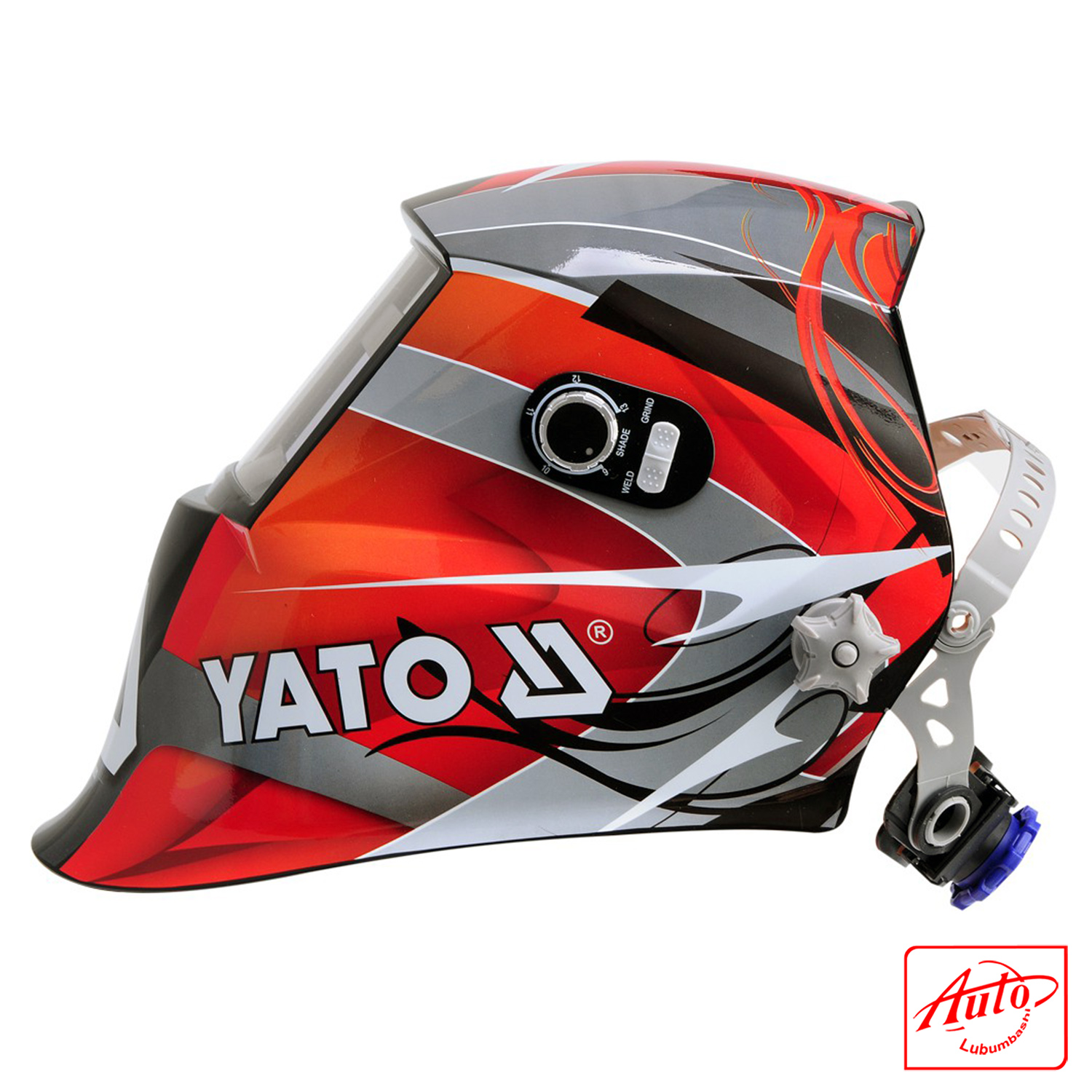

The Yato – YT-73921 Auto-Darkening Welding Helmet (DIN 5–13 / 99×56 mm) provides advanced protection and comfort for welders. Built from durable polypropylene (PP) with a polycarbonate (PC) lens, it features a TRUE COLOR auto-darkening filter with optical properties rated at 1/1/1/2. The helmet offers a wide viewing area of 99 × 56 mm and a filter size of 126 × 103 × 18 mm, ensuring clear visibility and precision during welding tasks.
Its dark state ranges from DIN 5–8 and DIN 9–13, while the light state is DIN 4. The helmet reacts in just 1/25,000 s, with adjustable dimming time (0.3–1 ms) and brightening time (0.1–1 s). Sensitivity adjustment is external via a knob, and the grind function disables dimming for use during cutting or grinding operations. The four-point headgear system ensures comfort and adaptability, while the TEST button allows routine checking of the filter’s self-dimming function.
Powered by a solar cell and two CR2450 3V batteries, the helmet includes a low-battery indicator and automatic power on/off. It is UV/IR proof, operates in temperatures from -5°C to +55°C, and can be stored between -20°C and +70°C. The set includes the helmet and five protective glasses (YT-73924).
Applications include MMA, MIG, MAG, and TIG welding, as well as grinding and cutting operations. With compliance to EN 175:1997 and EN 379:2003 + A1:2009 standards, the YT-73921 helmet ensures professional-grade safety and performance.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | Yato |
| Model | YT-73921 |
| Series | GRF |
| Standards | EN 175:1997 ; EN 379:2003 + A1:2009 |
| Optical Properties | 1 / 1 / 1 / 2 |
| Filter Type | Auto-darkening TRUE COLOR |
| Filter Size | 126 × 103 × 18 mm |
| Viewing Area | 99 × 56 mm |
| Dark State | DIN 5–8 ; DIN 9–13 |
| Light State | DIN 4 |
| Arc Sensors | 4 |
| Reaction Time | 1/25,000 s |
| Dimming Time | 0.3–1 ms |
| Brightening Time | 0.1–1 s |
| Shade Control | External knob |
| Sensitivity Adjustment | Yes, min–max knob |
| Functions | Welding, grinding |
| Helmet Material | PP |
| Lens Material | PC |
| Headgear | 4-point adjustable |
| Filter Test | Yes |
| Power Supply | Solar cell + 2 × CR2450 (3V) |
| Low Battery Indicator | Yes |
| Auto Power On/Off | Yes |
| UV/IR Protection | Yes |
| Working Temperature | -5°C to +55°C |
| Storage Temperature | -20°C to +70°C |
| Set Includes | Welding helmet + 5 protective glasses (YT-73924) |
| Welding Processes | MMA, MIG, MAG, TIG |
