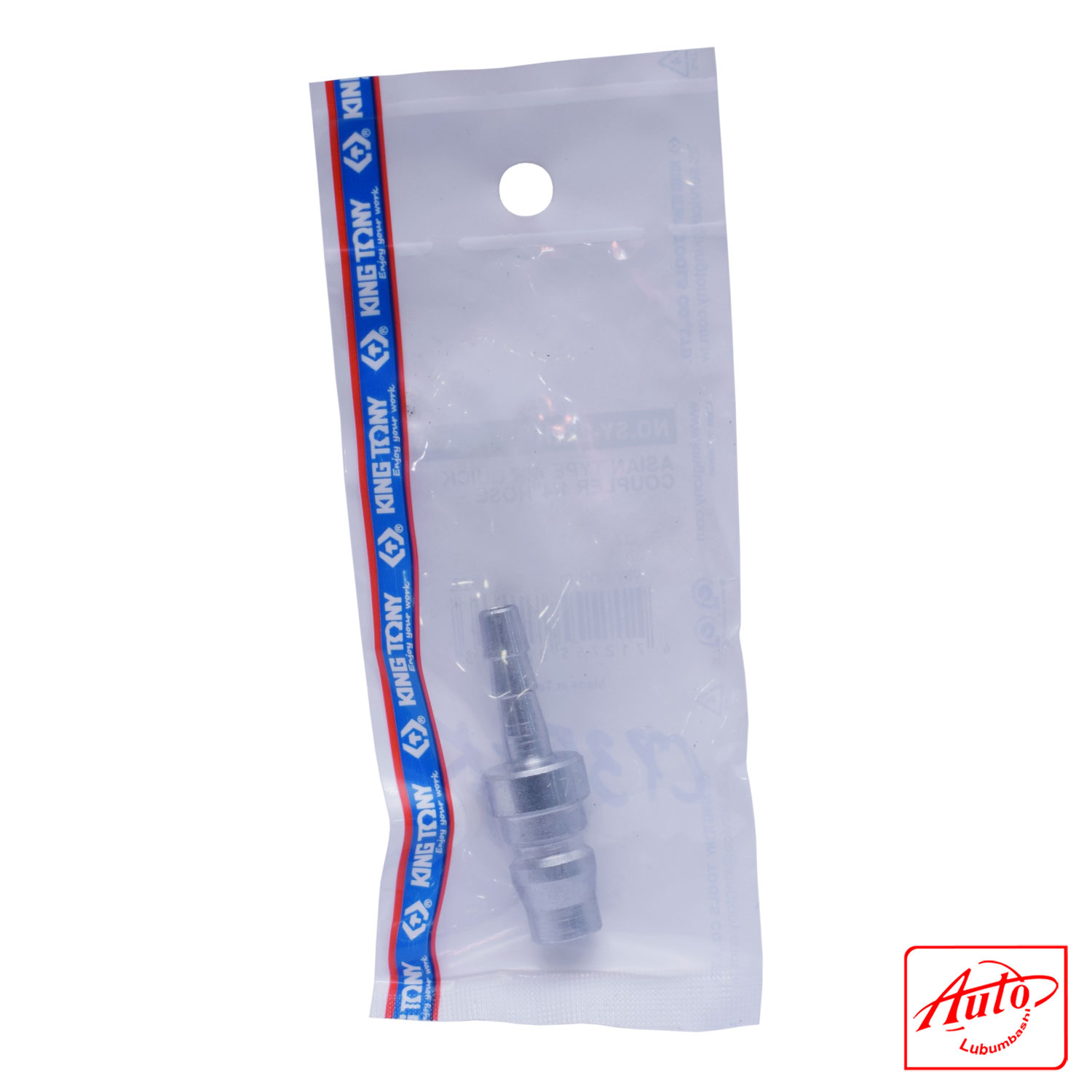

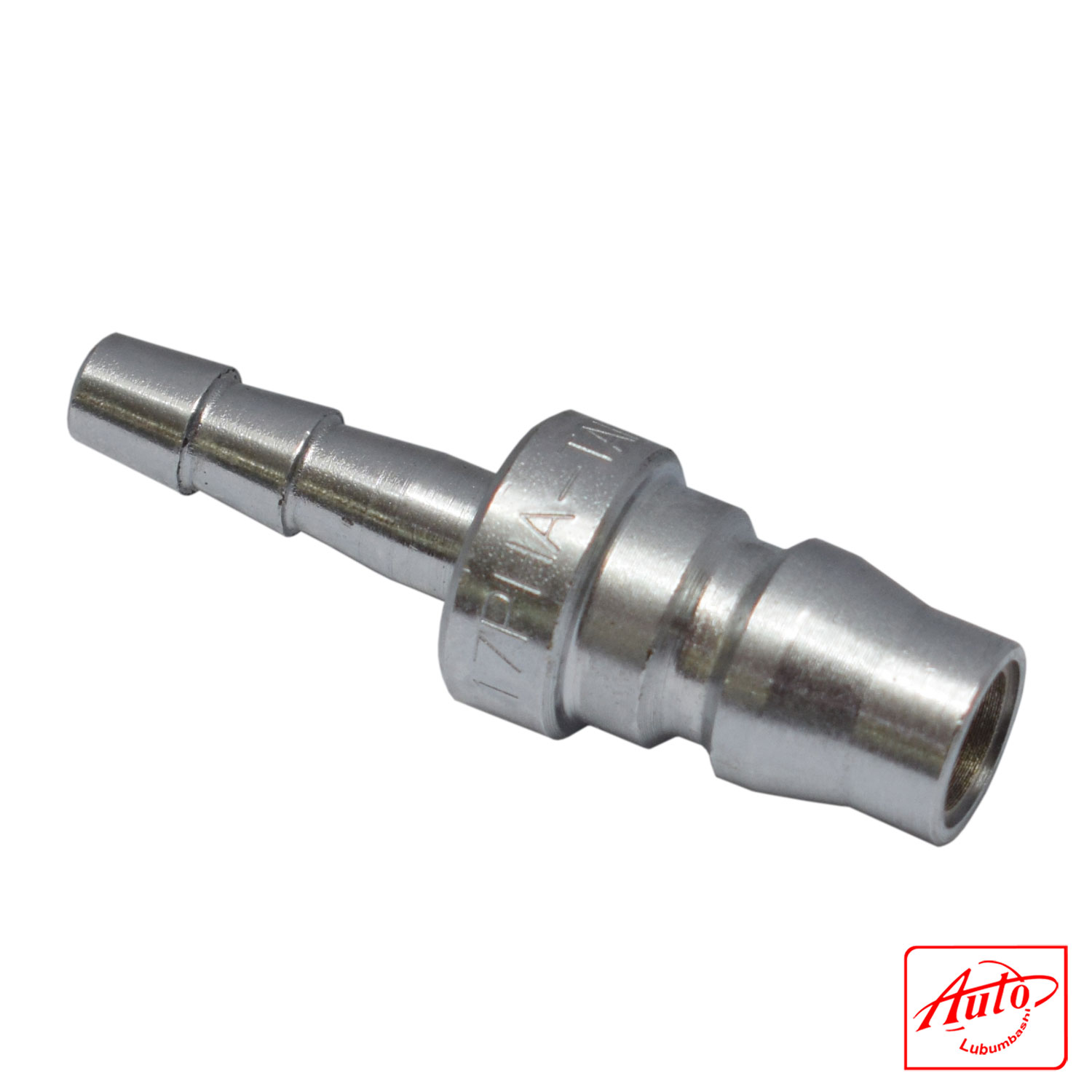

The 17PHA Air Quick Coupler Plug belongs to the Japanese-style “C-Type” (Hi-Cupla) series, widely used in pneumatic circuits. It features a one-way automatic shut-off valve in the socket, hardened wear-resistant parts, and has been tested over 100,000 cycles for durability and reliability.
Constructed from chrome-plated steel or stainless steel, this plug offers excellent corrosion resistance and mechanical strength. It is compatible with international standards (JIS B 0203) and designed for use with pneumatic tools, air piping, and air pressure equipment.
Operating at pressures up to 218 PSI (15 bar / 1.5 MPa) and temperatures from -20°C to +80°C (standard NBR seals), it is suitable for industrial compressed air applications.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | KING TONY |
| Product | Air quick couple |
| Type | Quick Connect Plug (Male Nipple) |
| Model | 17PHA |
| End Connection | 1/4″ Hose Barb (Ø6 mm) |
| Standard | Japanese Industrial Standard (Hi-Cupla compatible) |
| Material | Steel (chrome-plated) or Stainless Steel |
| Seal Material | NBR (standard) |
| Working Pressure | 218 PSI (15 bar / 1.5 MPa) |
| Maximum Pressure | 290 PSI (20 bar / 2 MPa) |
| Temperature Range | -20°C to +80°C (standard) / up to +180°C for high-temp versions |
| Size Options | 1/4″ (20 Type), 3/8″ (30 Type), 1/2″ (40 Type) |
| Norms | JIS B 0203 compliant |
| Applications | Pneumatic tools, Air piping, Air pressure equipment |
