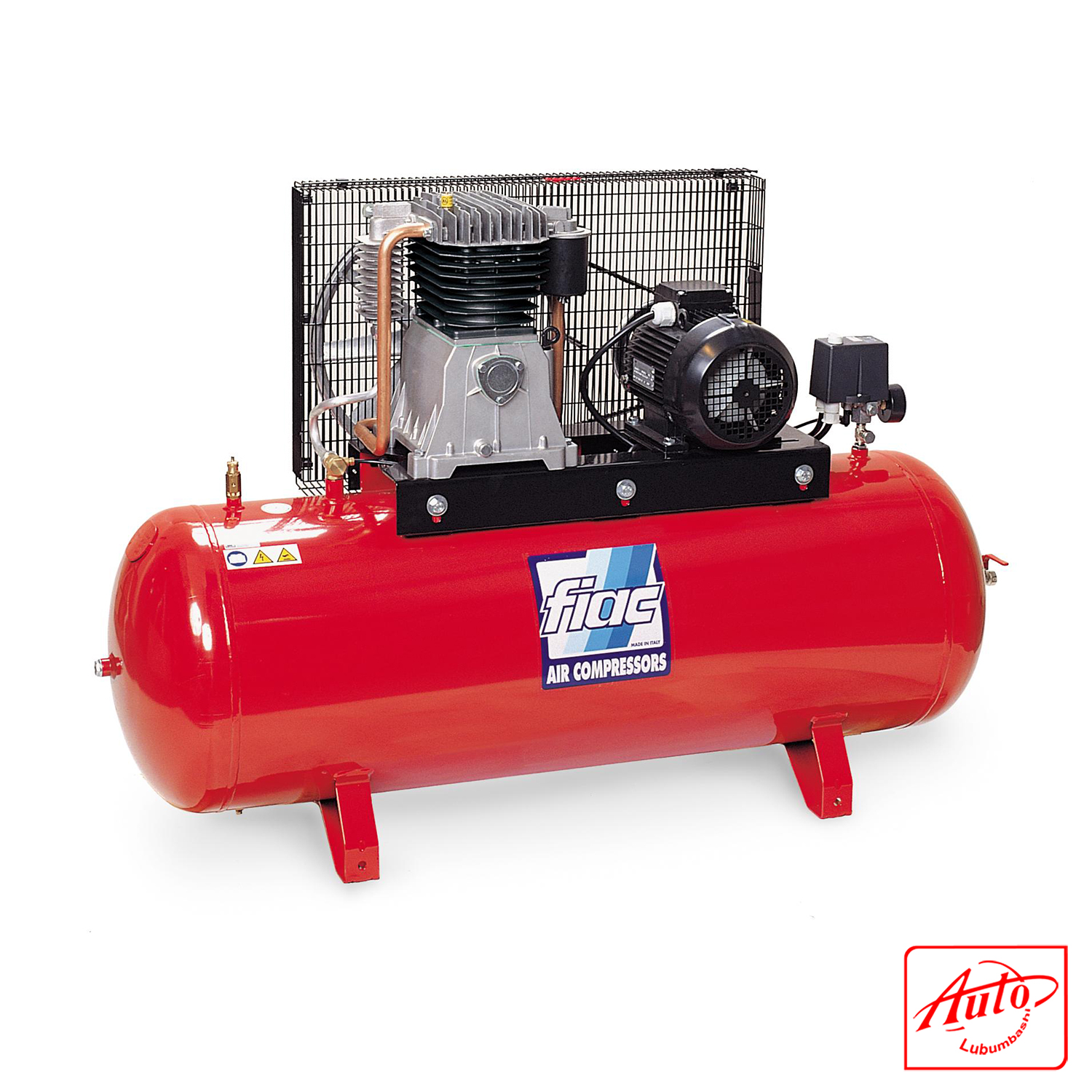

The Fiac AB 500-1280 is engineered for intensive use in industrial and workshop environments, combining robustness, efficiency, and durability. It features a 7.5 HP motor, a large 500-liter air tank, and a two-stage twin-cylinder pump, delivering high air displacement with consistent pressure.
The two-stage compression system enhances efficiency, while the low rotational speed minimizes component wear and reduces overheating, significantly extending the compressor’s service life. Built with cast iron cylinders and a reinforced frame, this model is designed to withstand continuous and demanding operations.
For improved usability and maintenance, all FIAC pumps are equipped with a large oil level indicator, an oil dipstick, and a large flywheel that enhances cooling performance. Additionally, a steel belt guard provides increased protection and ensures safe handling during operation and transportation.
This compressor is ideal for powering large sandblasters, multiple pneumatic impact wrenches, and other high air-demand tools. It is particularly suitable for installations limited to a 7.5 HP power supply, offering an optimal balance between power availability and air delivery.
TECHNICAL DETAILS:
| Specification | Details |
| Product Name | Air Compressor |
| Brand | Fiac |
| Model Number | AB 500-1280 |
| Motor Power | 7.5 HP (5.5 kW) |
| Air Displacement | 1280 L/min (≈ 45.2 CFM) |
| Tank Capacity | 500 Liters |
| Pump Type | Two-stage, twin-cylinder |
| Working Pressure | 10 bar (145 psi) |
| Voltage | 230–400 V / Three-phase |
| Frequency | 50 Hz |
| Weight | 253 kg |
| Construction | Cast iron cylinders, robust frame |
| Design Features | Low rotation speed, oil level inspection glass |
| Applications | Industrial workshops, automotive, manufacturing |
| Origin | Made in Italy |
| Usage Notes | Designed for intensive workshop use; apply oil regularly for pump longevity |
