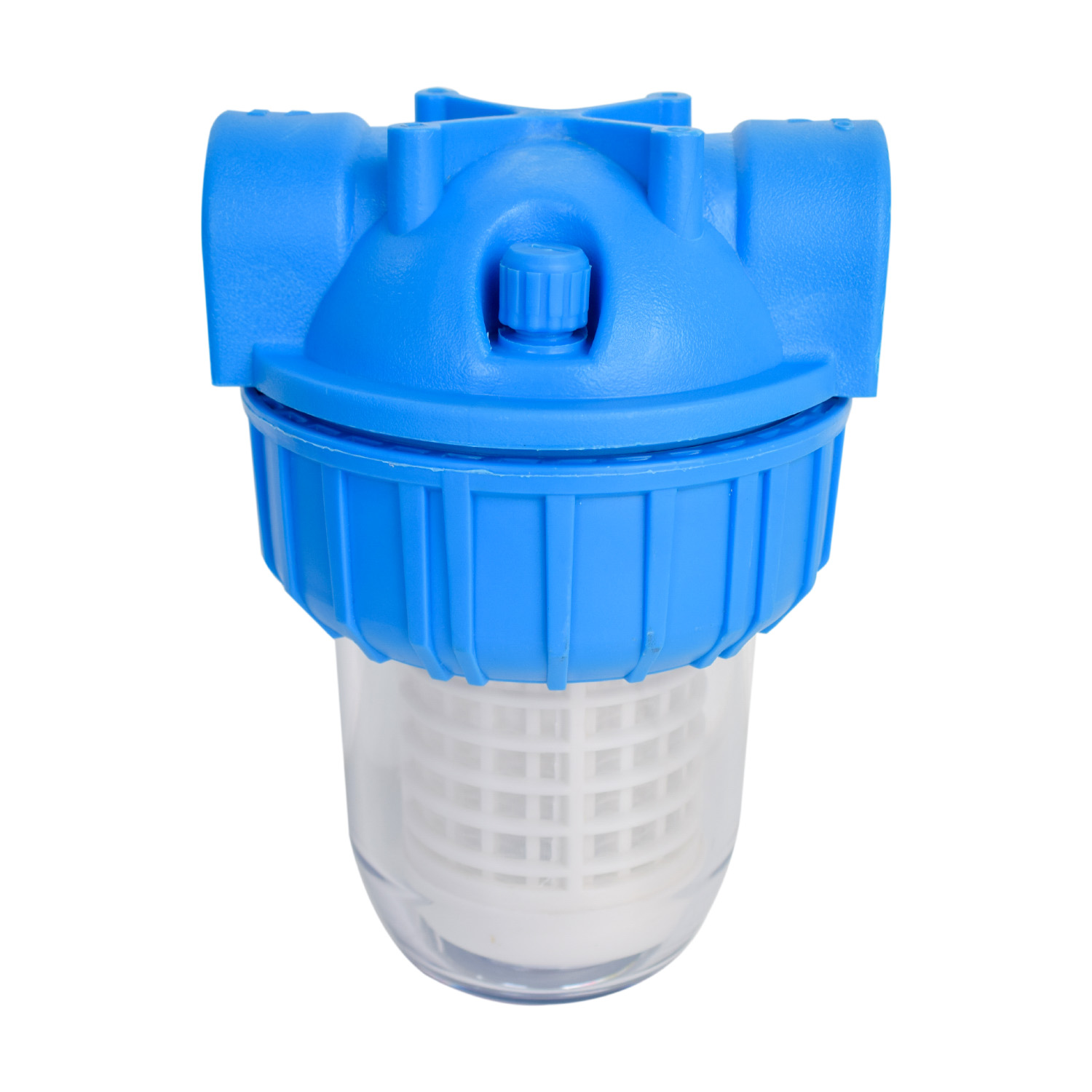

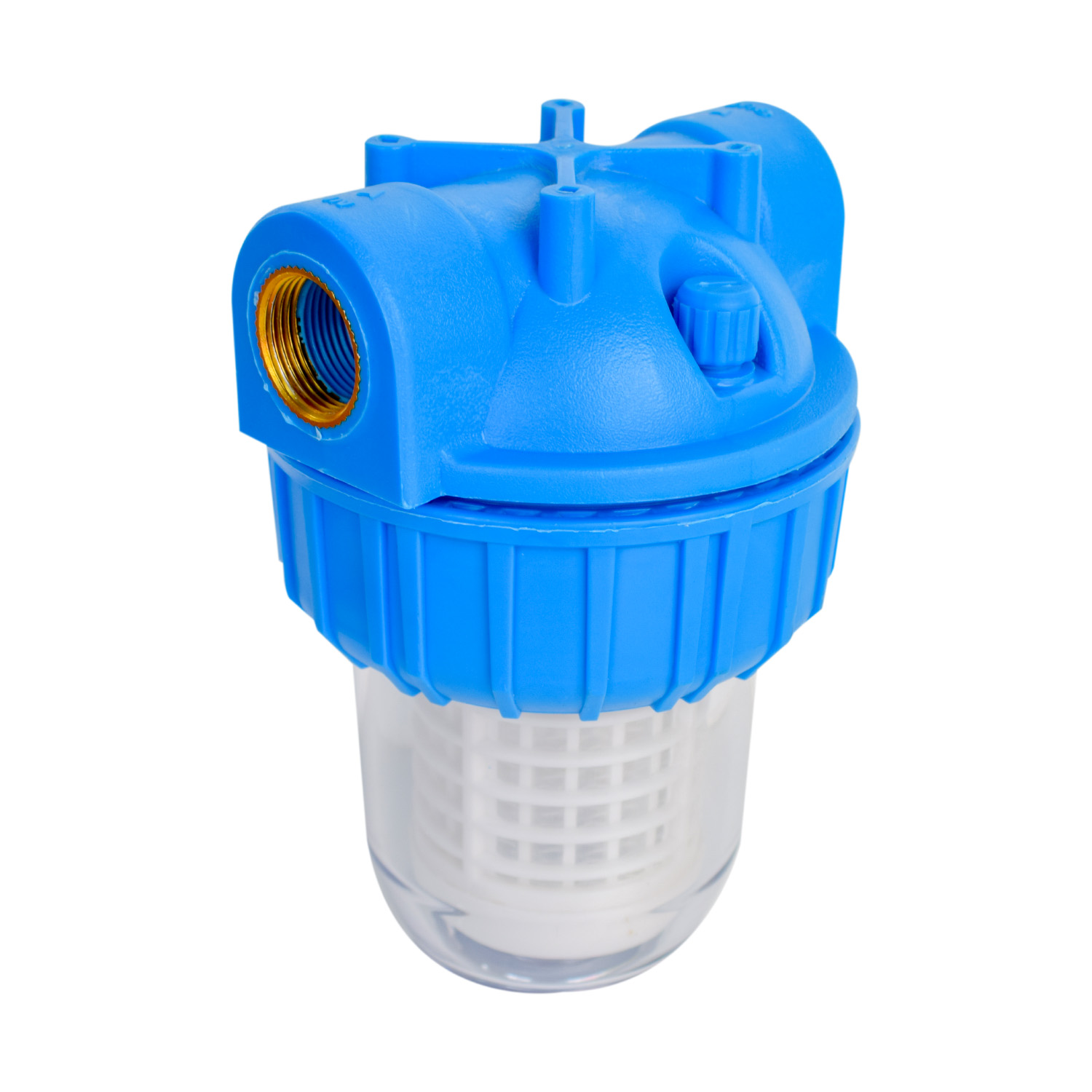

Constructed with a nylon (PA) filter body and a clear PV plastic bowl, this pre-filter allows quick visual monitoring of the filter element. The washable mesh cartridge (60–80 mesh) is reusable, reducing maintenance costs.
The filter includes a screw-off cap for easy cleaning and an air pressure release valve for safe operation. With 3/4-inch BSP/NPT brass female threads, it connects easily to larger garden hoses, pumps, or washer systems.
Rated for 6–10 bar (87–145 PSI) and suitable for cold water up to 60°C (140°F), this unit is ideal for pump protection, garden irrigation, RV water systems, and pressure washer setups.
TECHNICAL DETAILS:
| Specification | Details |
| Product Name | 5-Inch Inline Sediment Water Filter / Strainer |
| Body Material | Nylon (PA) molded with brass female collar |
| Bowl Material | Transparent PV plastic, framed screen |
| Filter Element | Washable mesh cartridge (60–80 mesh) |
| Connections | 3/4″ BSP/NPT brass female threads (≈ 33.25 mm) |
| Capacity | Approx. 1 liter |
| Flow Rate | 5000–6500 L/h (depending on brand) |
| Pressure Rating | 6–10 bar (87–145 PSI) |
| Temperature Rating | Max 60°C (140°F), cold water use |
| Applications | Pump protection, garden irrigation, RV water systems, pressure washers |
| Features | Transparent bowl for inspection, screw-off cap for easy cleaning, air pressure release valve, non-marking anti-abrasive cover |
