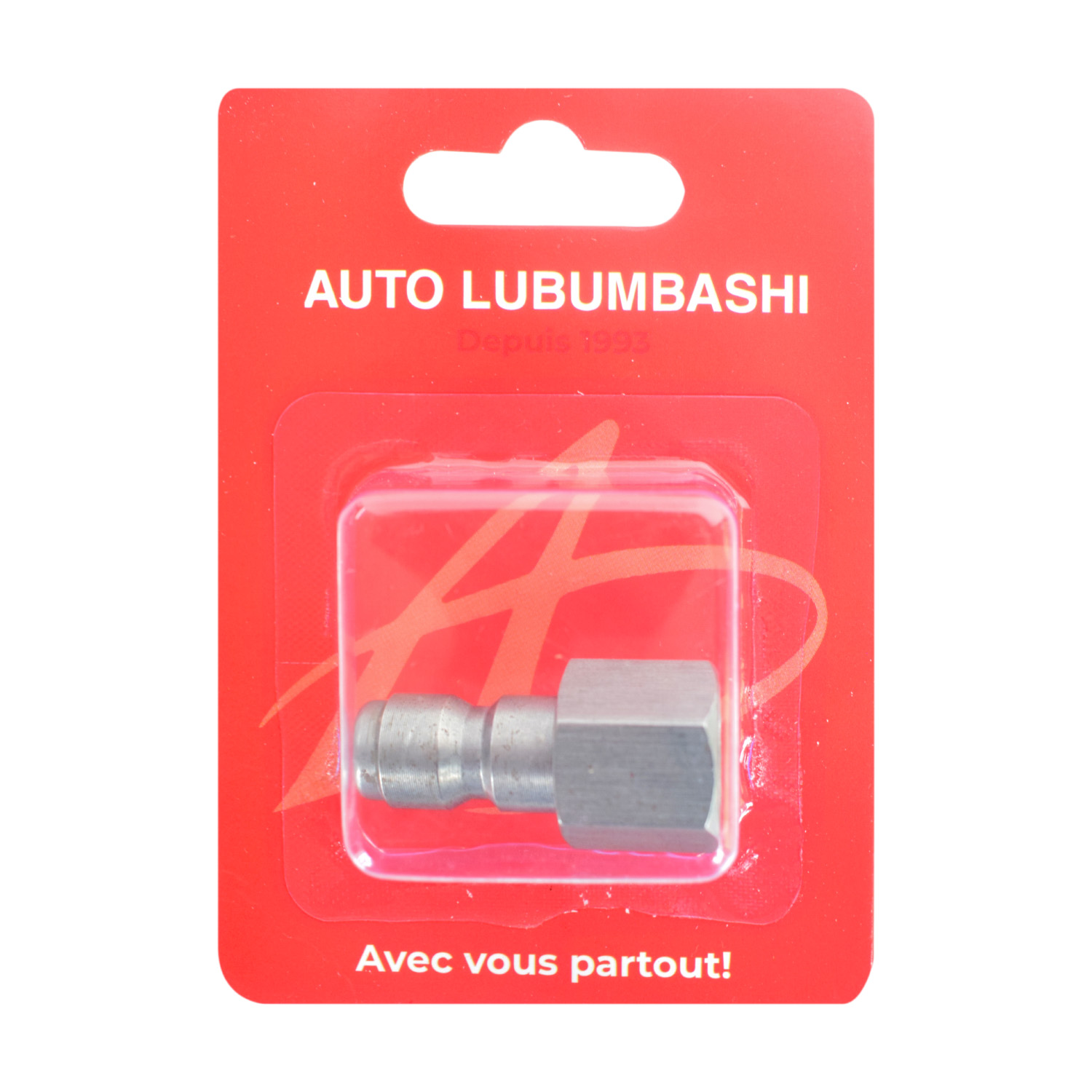

The Quick-Disconnect Coupler Plug is a standard component in pneumatic and high-pressure systems. Its female threaded design allows easy attachment to hoses or fittings, while the snap-in connection profile (Industrial, ARO, or V-Style High Flow depending on model) ensures compatibility with matching female couplers.
Constructed from heavy-duty zinc-plated steel or brass, it resists rust and corrosion, making it suitable for demanding environments. With a maximum working pressure of 3,500 PSI and temperature resistance up to 250°F, it is ideal for high-pressure washers, hydraulic systems, and chemical applications.
Quick-release functionality saves time during frequent assembly and disassembly, while maintaining a watertight seal for safety and efficiency.
TECHNICAL DETAILS:
| Specification | Details |
| Product Type | Pneumatic quick-disconnect coupler plug (air line adaptor) |
| Connection Type | 1/4″ female NPT thread |
| Material | Zinc-plated steel or brass (corrosion resistant) |
| Pressure Rating | High-pressure, up to 3,500 PSI (≈ 280 bar) |
| Temperature Rating | Up to 250°F (≈ 121°C) |
| Compatibility | Industrial, ARO, or V-Style high-flow couplers |
| Applications | Pneumatic systems, pressure washers, hydraulics, chemical applications |
| Features | Leak-proof, quick release, durable construction |
