The YATO YT-73131 Digital Detector is designed for precise detection of hidden objects in walls, plaster, or drywall, making it an essential tool for electricians, builders, and installers.
It detects live conductors up to 50 mm, ferromagnetic metals up to 80 mm, non-ferrous metals (e.g., copper pipes) up to 60 mm, and wooden structural components up to 20 mm.
Using this detector significantly speeds up work, increases safety, and minimizes the risk of accidental damage to electrical or plumbing systems hidden under plaster.
It allows users to safely drill holes or locate screw positions in wooden or metal profiles and supports technical documentation of buildings.

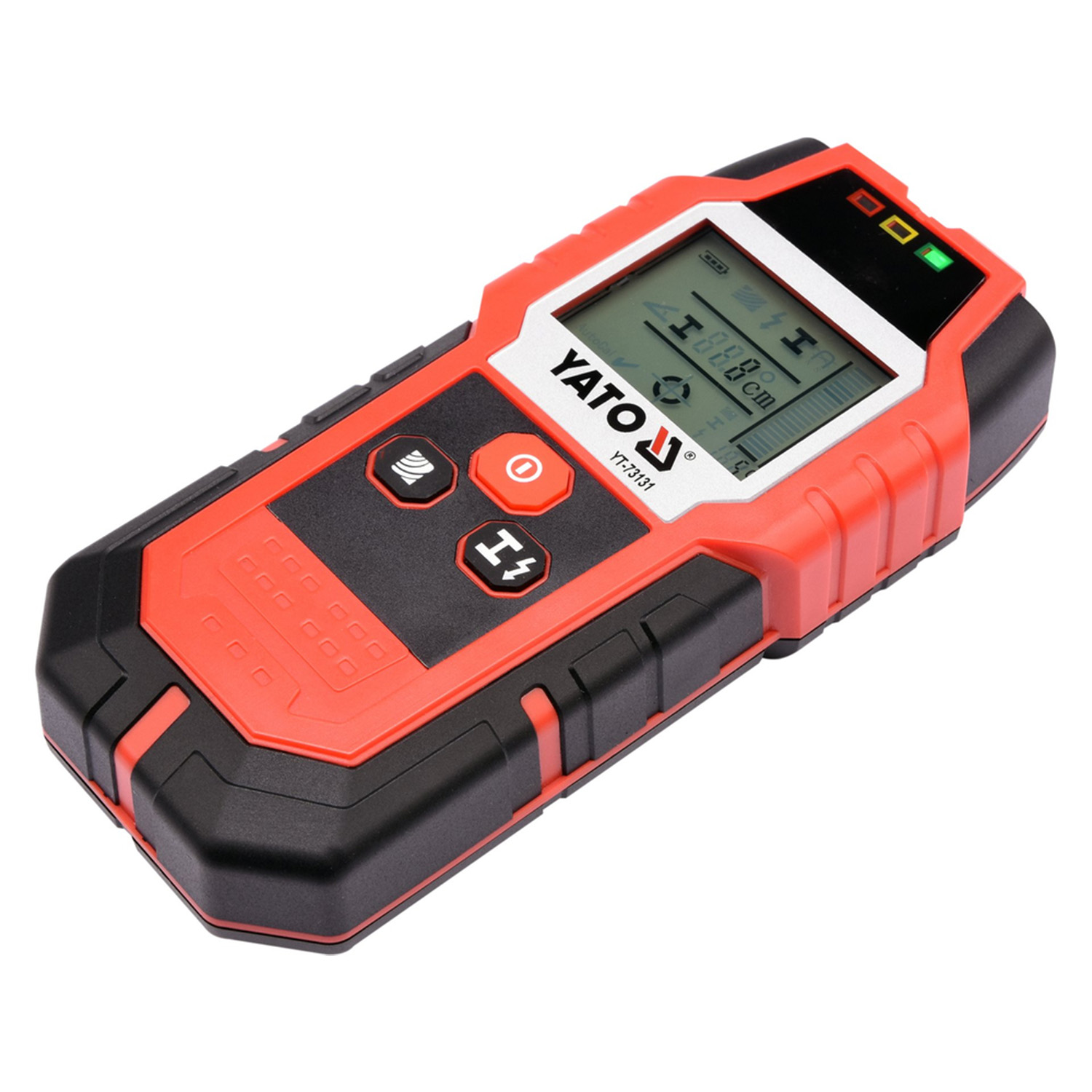

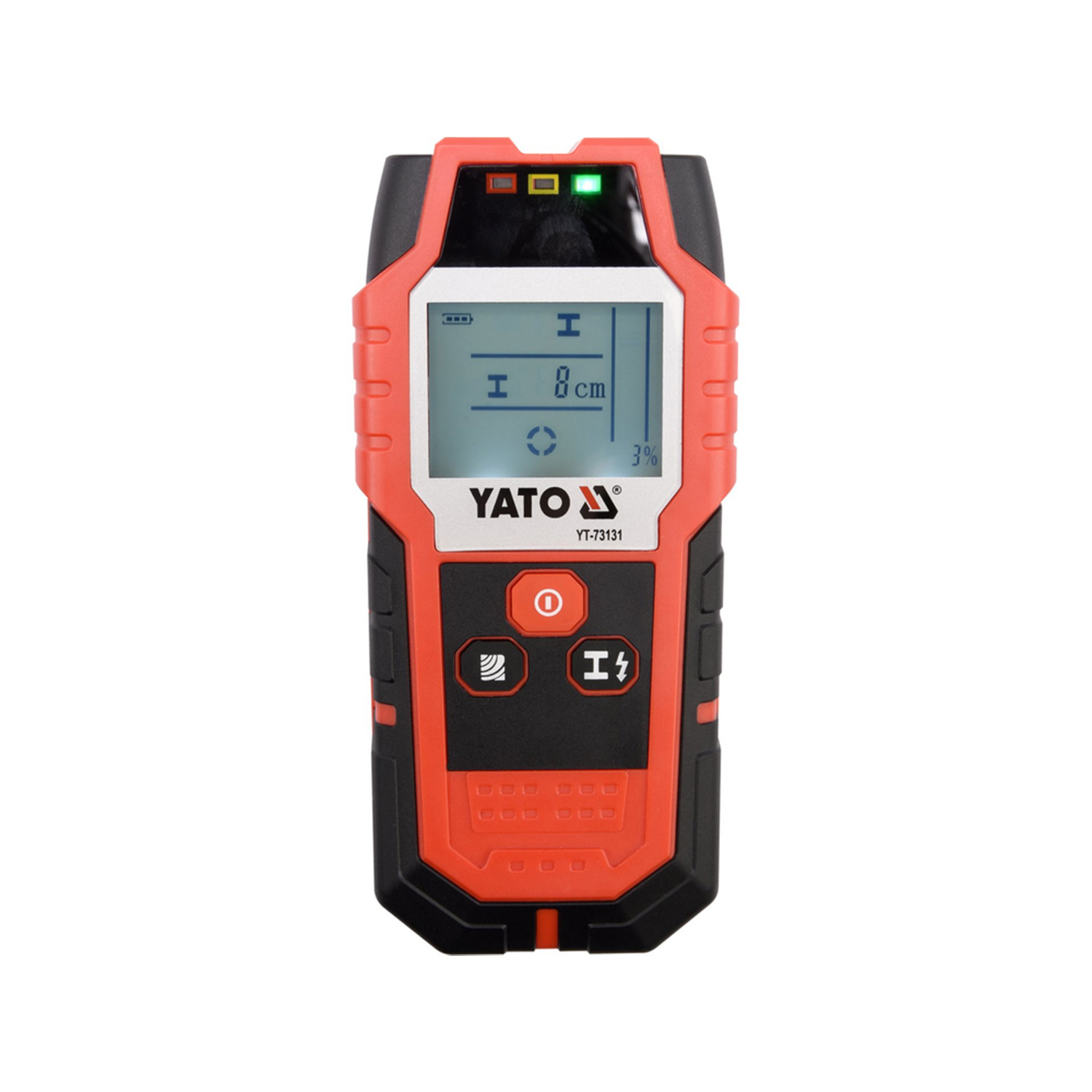

The large backlit LCD clearly shows the selected function, signal strength, distance to metal, and sensor position.

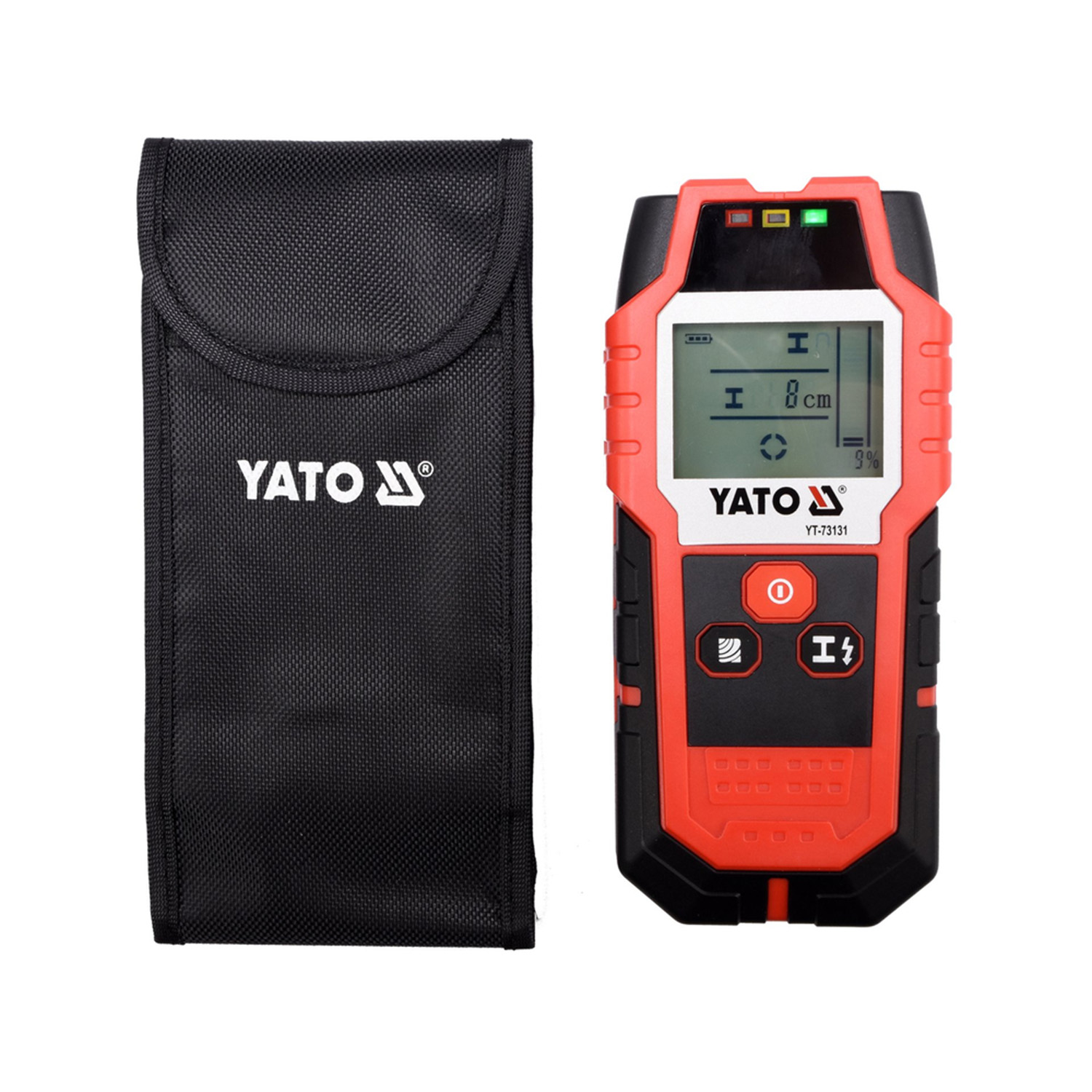

Features include: audible signal with three LED indicators (green/orange/red), adjustable live-wire detection, auto shut-off after 5 minutes, soft protective inserts to prevent scratches, and a durable carrying case.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | Yato |
| Product Type | Digital Detector |
| Detected Objects | Wood, ferromagnetic metals, diamagnetic metals, live A.C. wires |
| Wood Detection Range | 20 mm |
| Ferromagnetic Metals Range | 80 mm |
| Diamagnetic Metals Range | 60 mm |
| Live Wires (A.C.) Range | 50 mm |
| Power Supply | 9 V battery (6F22) |
| Dimensions | 145 × 67 × 25 mm |
| Weight | 0.13 kg |
| Display Type | LCD (with LED backlighting) |
| LED Indicators | Yes (green, orange, red) |
| Audible Signal | Yes |
| Working Temperature | 0–50 °C |
| Storage Temperature | –10 to +60 °C |
| Additional Features | Adjustable detection strength, auto shutdown, protective inserts, supplied case |
| Applications | Electrical work, construction, plumbing, building documentation |
