The YATO YT-7201 Digital Caliper (150 mm range) is designed for precise dimensional measurements in mechanical engineering, machining, and quality control.
It offers ±0.02 mm accuracy and a resolution of 0.01 mm / 0.005 inches, ensuring reliable and professional-grade performance.
Constructed from stainless steel, the caliper is durable, resistant to wear, and provides long service life.
It features both metric and inch scales, displayed on a clear liquid crystal LCD screen for easy reading.
The caliper uses a linear capacitive measuring system for consistent precision and repeatability (0.01 mm / 0.005 inches).
It supports a maximum measuring speed of 1.5 m/s (60 in/s), making it efficient for repeated measurements.
Powered by a 1.55 V SR44 silver battery (180 mAh capacity), the caliper offers long-lasting operation with low power consumption.
It operates within a temperature range of 5–40 °C (41–104 °F), with negligible humidity effects below 80% relative humidity.

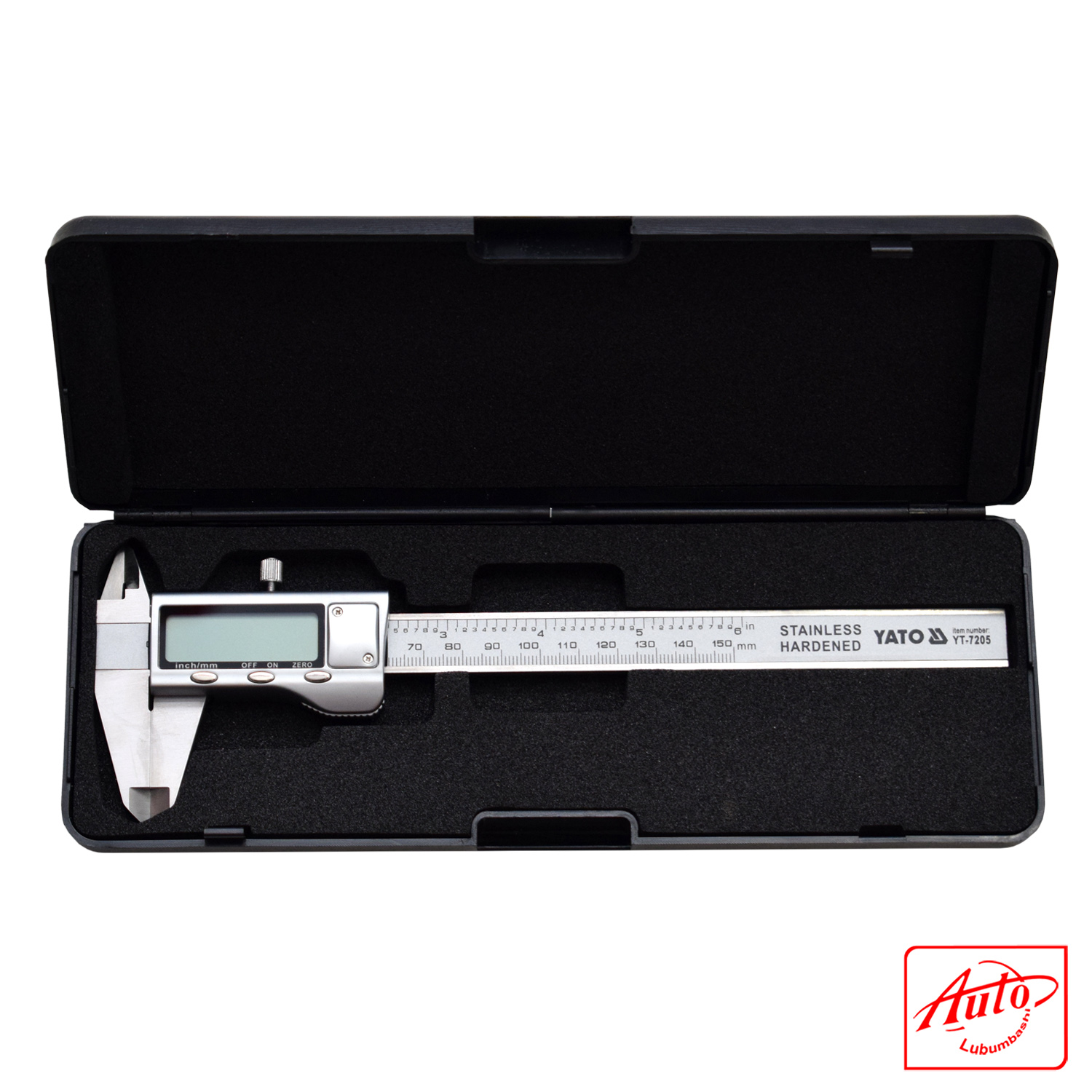

Packaged in a durable case, the YT-7201 is a reliable tool for professionals requiring accurate and versatile measurements up to 150 mm.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | Yato |
| Product Type | Digital Caliper |
| Measuring Range | 0–150 mm / 0–6 in |
| Measurement Accuracy | ±0.02 mm / ±0.001 in |
| Resolution | 0.01 mm / 0.005 in |
| Repeatability | 0.01 mm / 0.005 in |
| Measuring System | Linear capacitive |
| Material | Stainless steel |
| Metric Scale | Yes |
| Inch Scale | Yes |
| Reading Type | Electronic |
| Display Type | LCD (Liquid Crystal Display) |
| Power Supply | 1 × 1.55 V SR44 silver battery |
| Battery Capacity | 180 mAh |
| Max Measuring Speed | 1.5 m/s (60 in/s) |
| Working Temperature | 5–40 °C (41–104 °F) |
| Humidity Effect | Negligible below 80% RH |
| Applications | External, internal, and depth measurements |
| Packaging | Supplied in a protective case |
