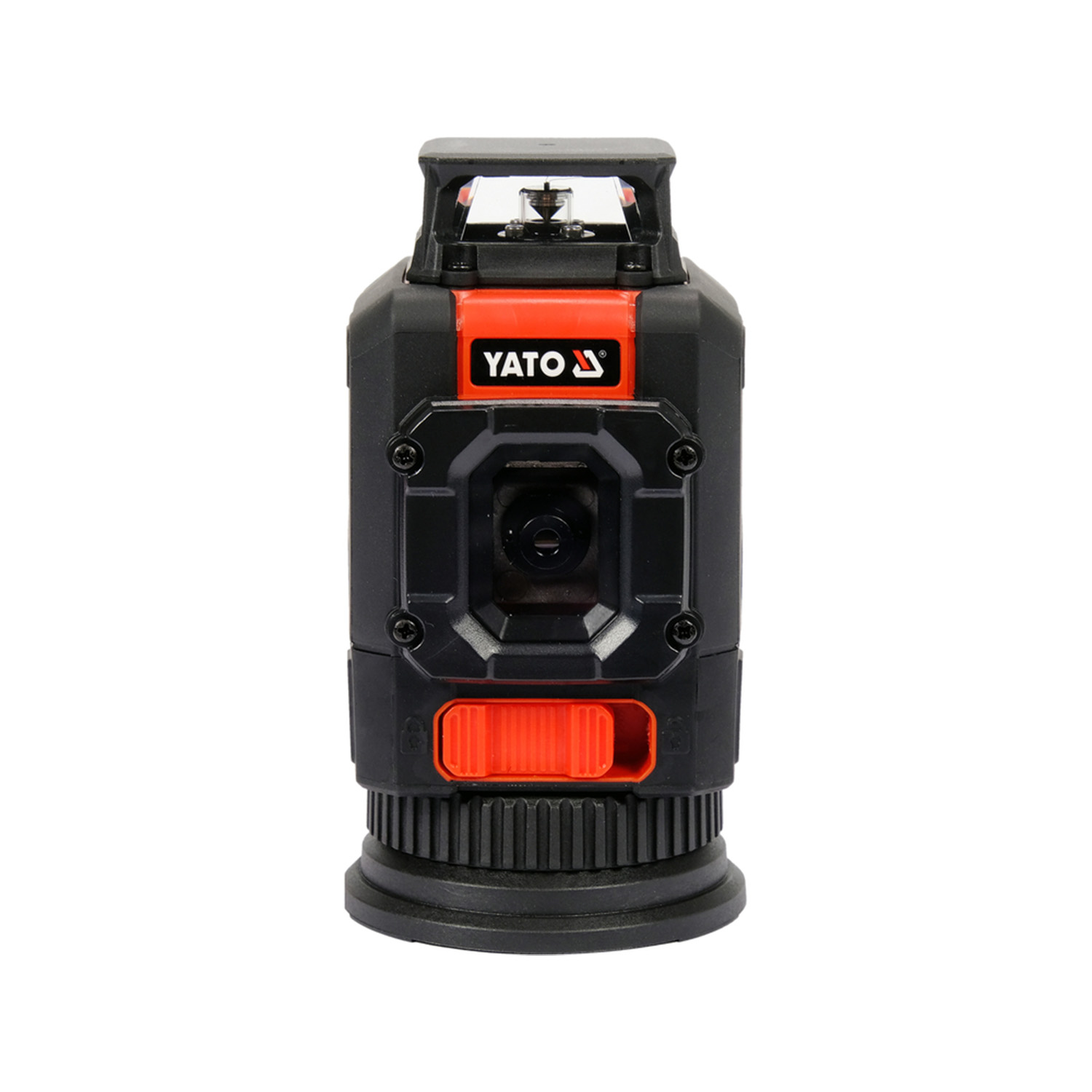

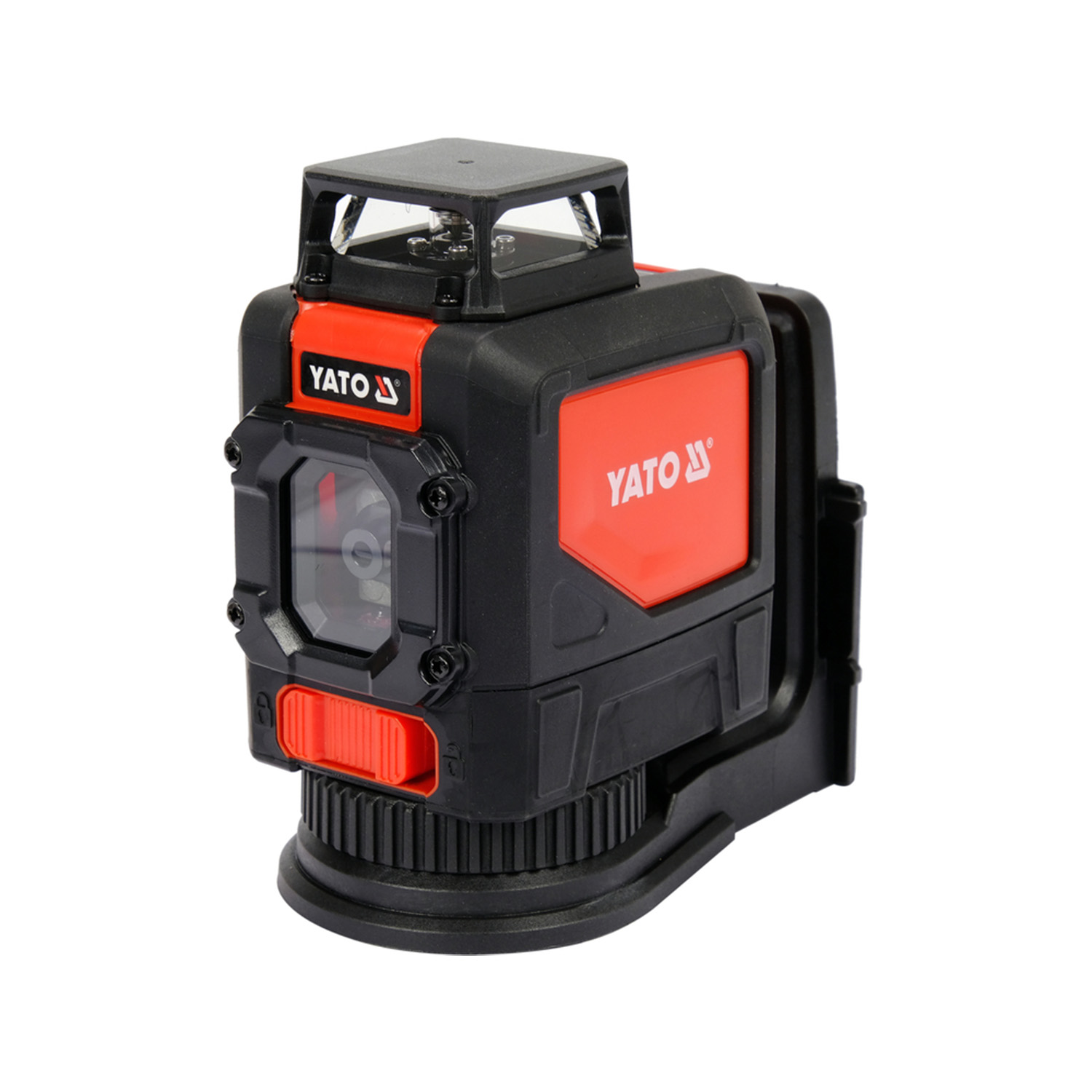

The YATO YT-30440 5-Line Green Laser 360 Set is a professional levelling tool designed for precise alignment and layout tasks.
It projects five green lines simultaneously: four horizontal lines around each wall for a 360° effect, plus one vertical line that functions as a cross-line laser.
With a working range of 30 m and accuracy of ±3 mm/10 m, it ensures reliable results in demanding projects.
The self-levelling system (±4°) stabilizes quickly, while the durable IP54 housing with rubber anti-slip overlays provides dust protection and resistance to drops.
Powered by 4× AA batteries (6 V total), it offers up to 8 hours of continuous operation.

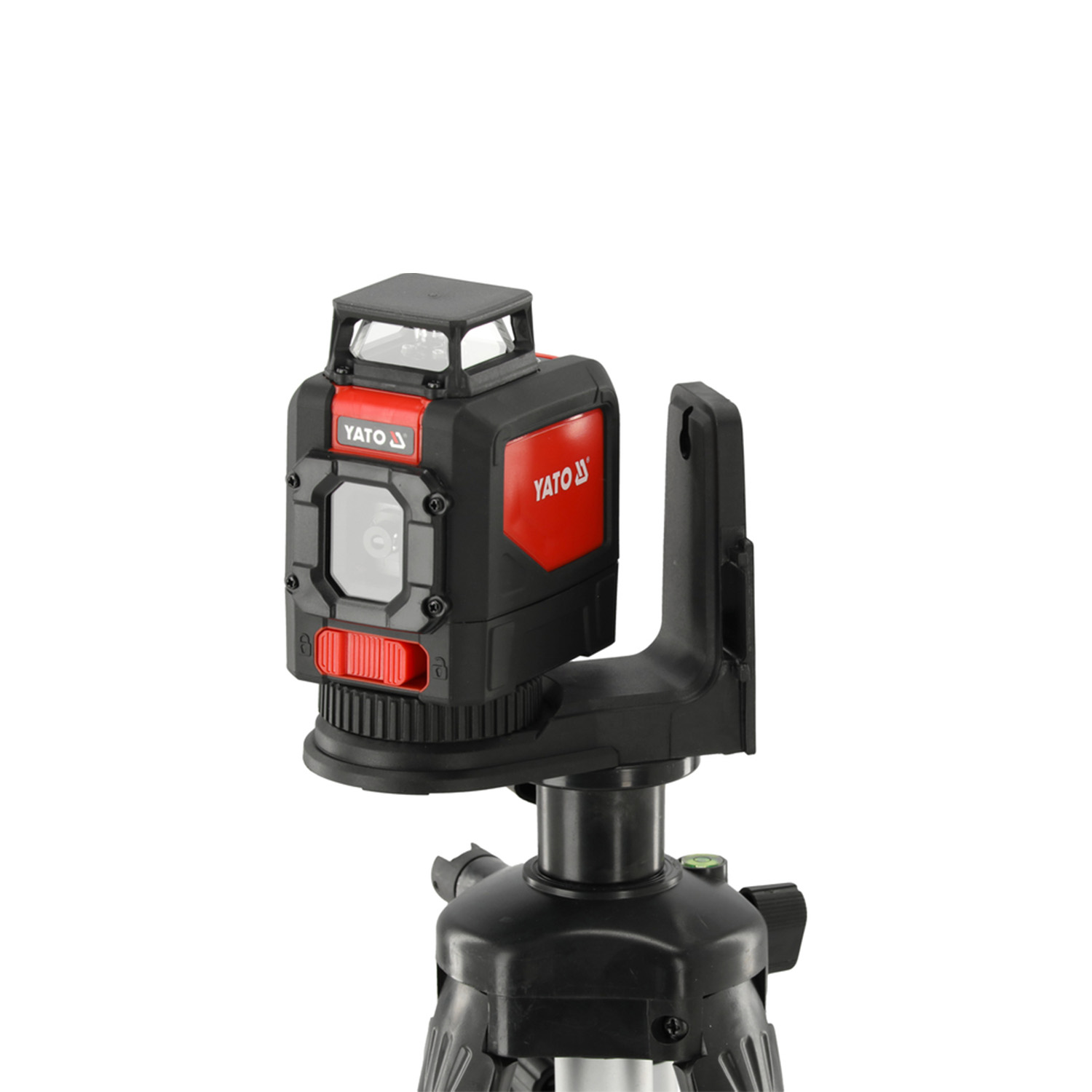

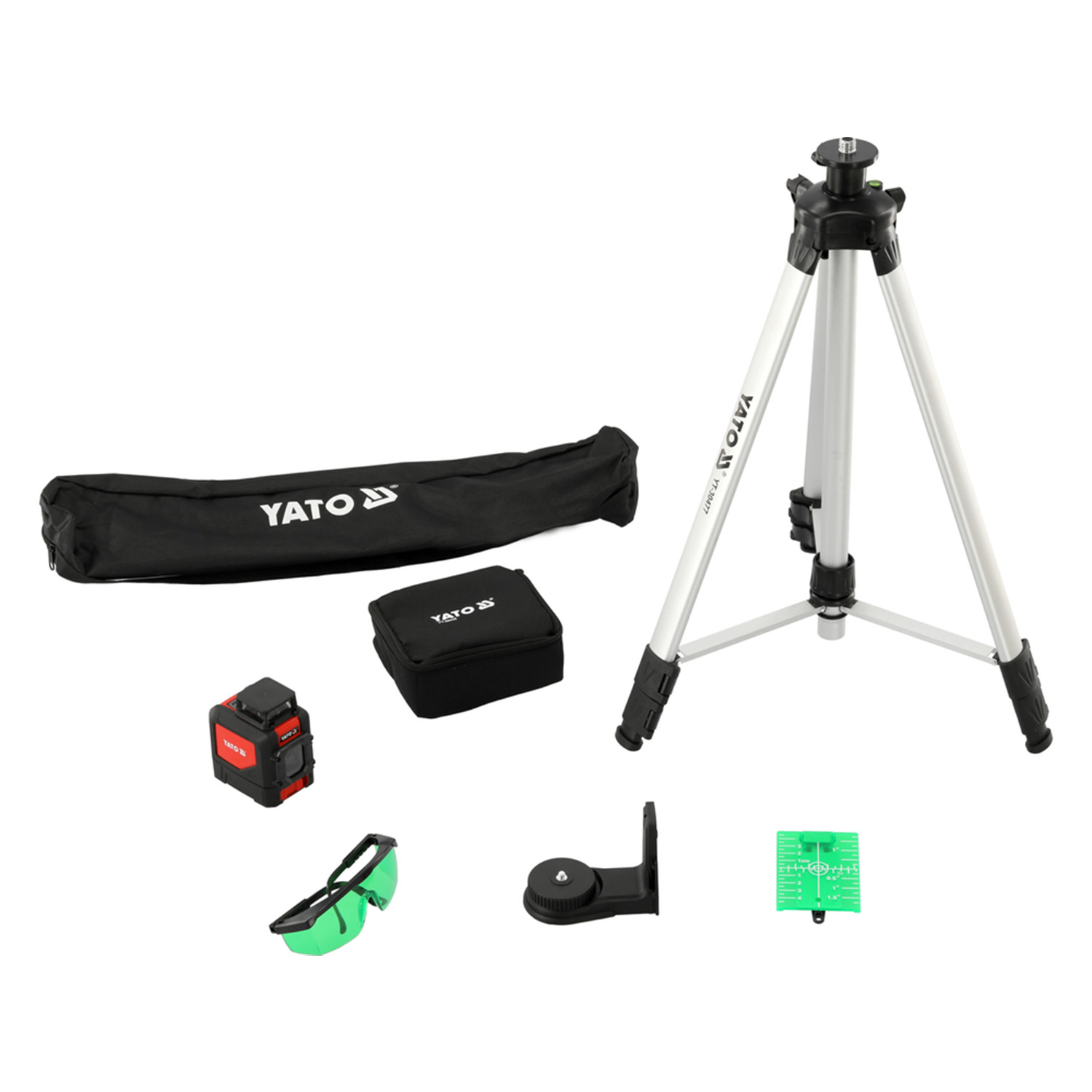

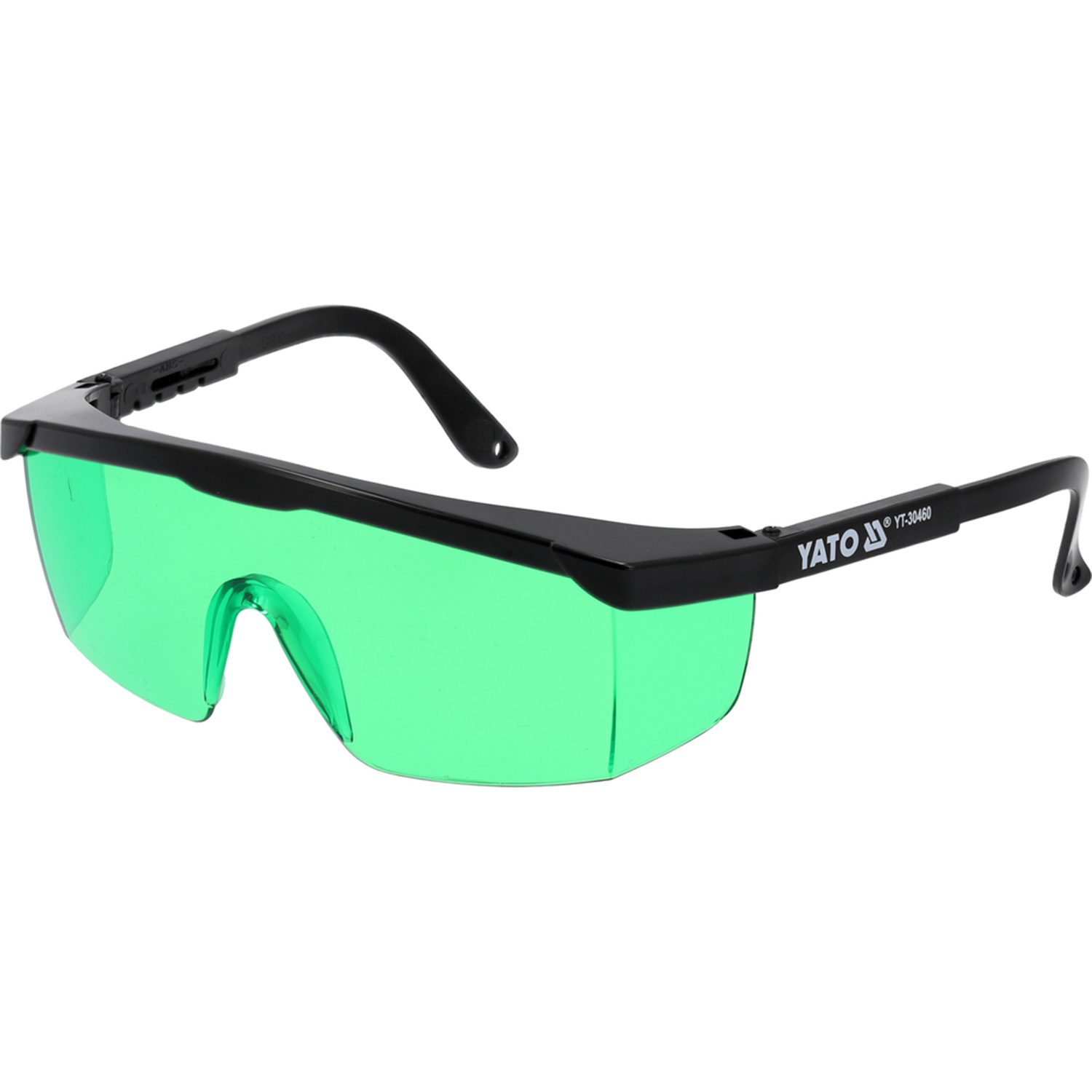

The set includes a telescopic aluminum tripod (470–1500 mm), mounting bracket, tripod adapter, metal plate, green glasses, and a protective carrying bag with vibration-damping padding.

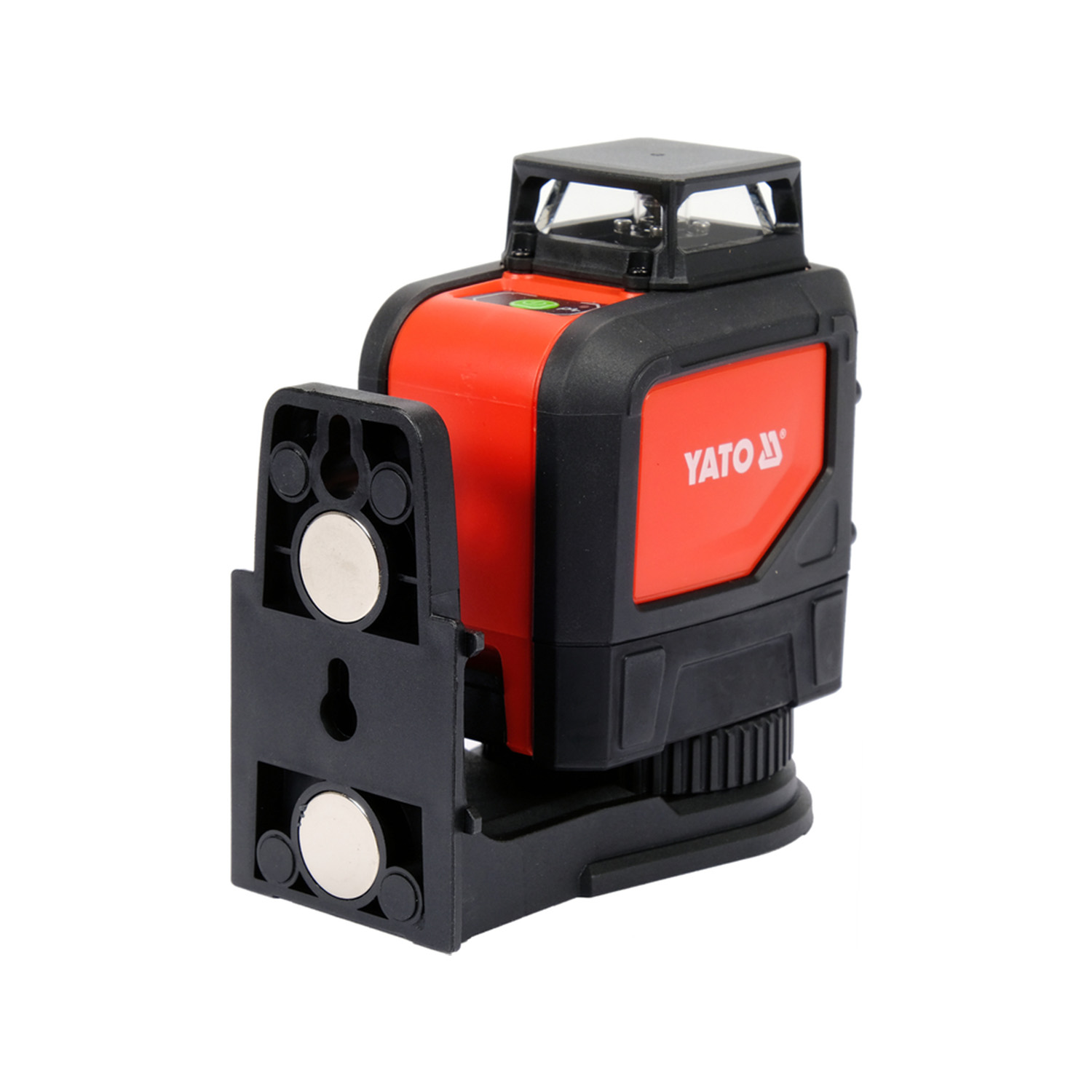

Two built-in rear magnets allow convenient attachment during work.
Compact and lightweight (0.43 kg), it is easy to transport and handle, making it ideal for construction, renovation, and finishing applications.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | Yato |
| Product Type | 5-Line Green Laser 360 Set |
| Laser Power | ≤1 mW |
| Laser Wavelength | 510–530 nm (green) |
| Accuracy | ±3 mm / 10 m |
| Self-Levelling Range | ±4° |
| Levelling Time | ≤3 s |
| Working Range | 30 m |
| Power Supply | 4 × 1.5 V AA batteries (6 V total) |
| Max. Working Time | 8 h |

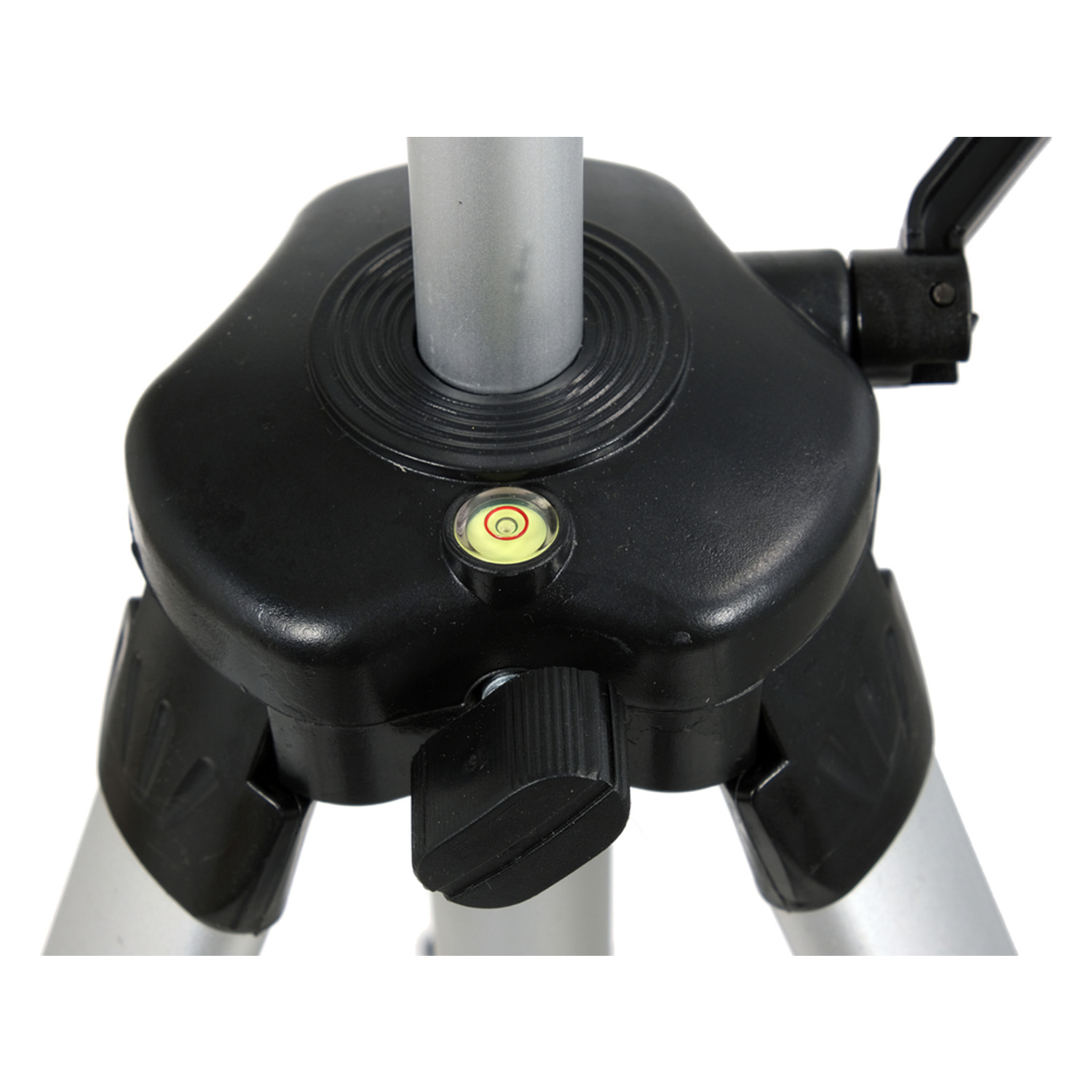

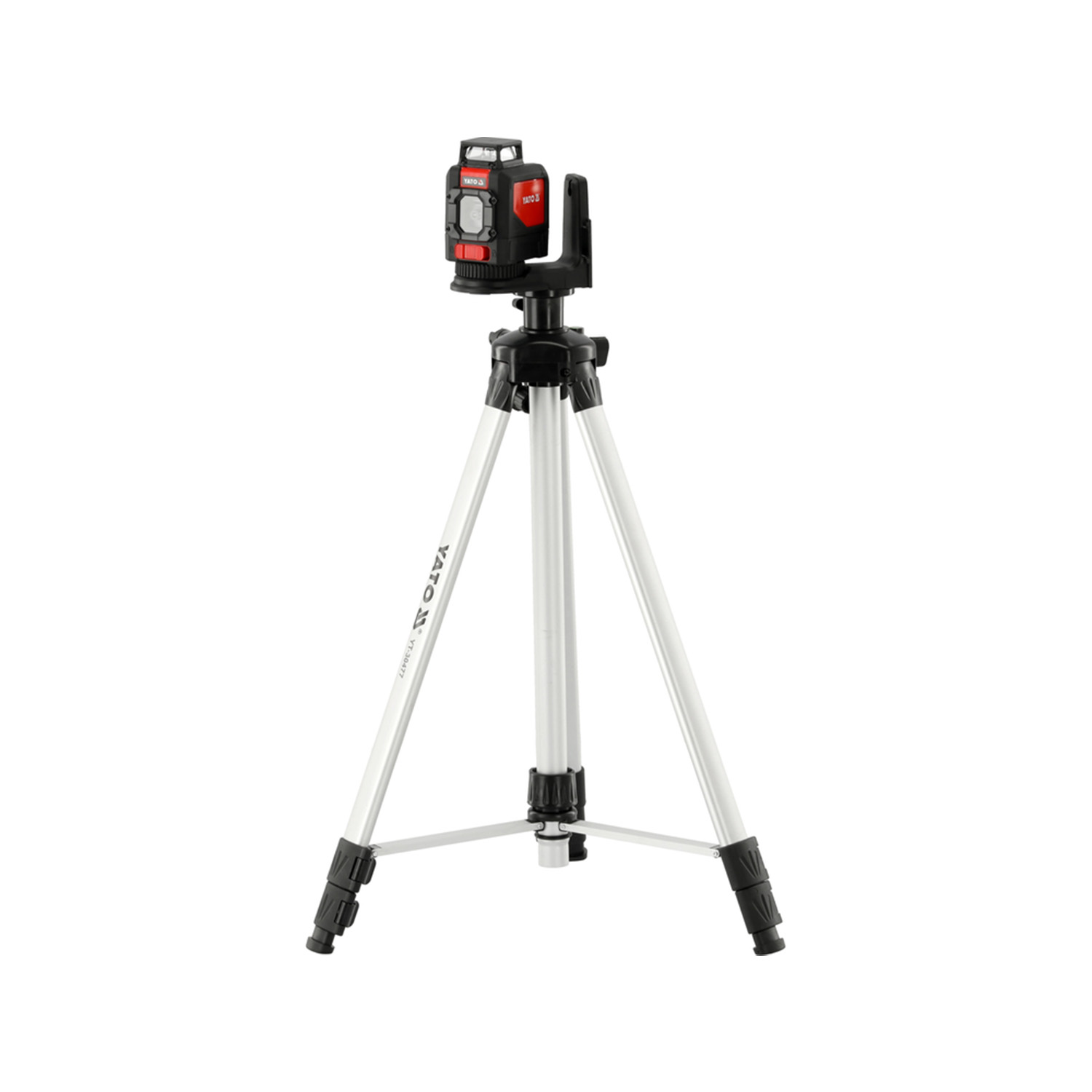

| Tripod Height | 470–1500 mm (telescopic aluminum) |
| Tripod Connection | 1/4″ (6.35 mm) 20UNC + 5/8″ thread |
| Tripod Included | Yes |
| Magnets | 2 (rear housing) |
| Operating Temperature | -10 to +50 °C |
| Protection Rating | IP54 |
| Weight | 0.43 kg |

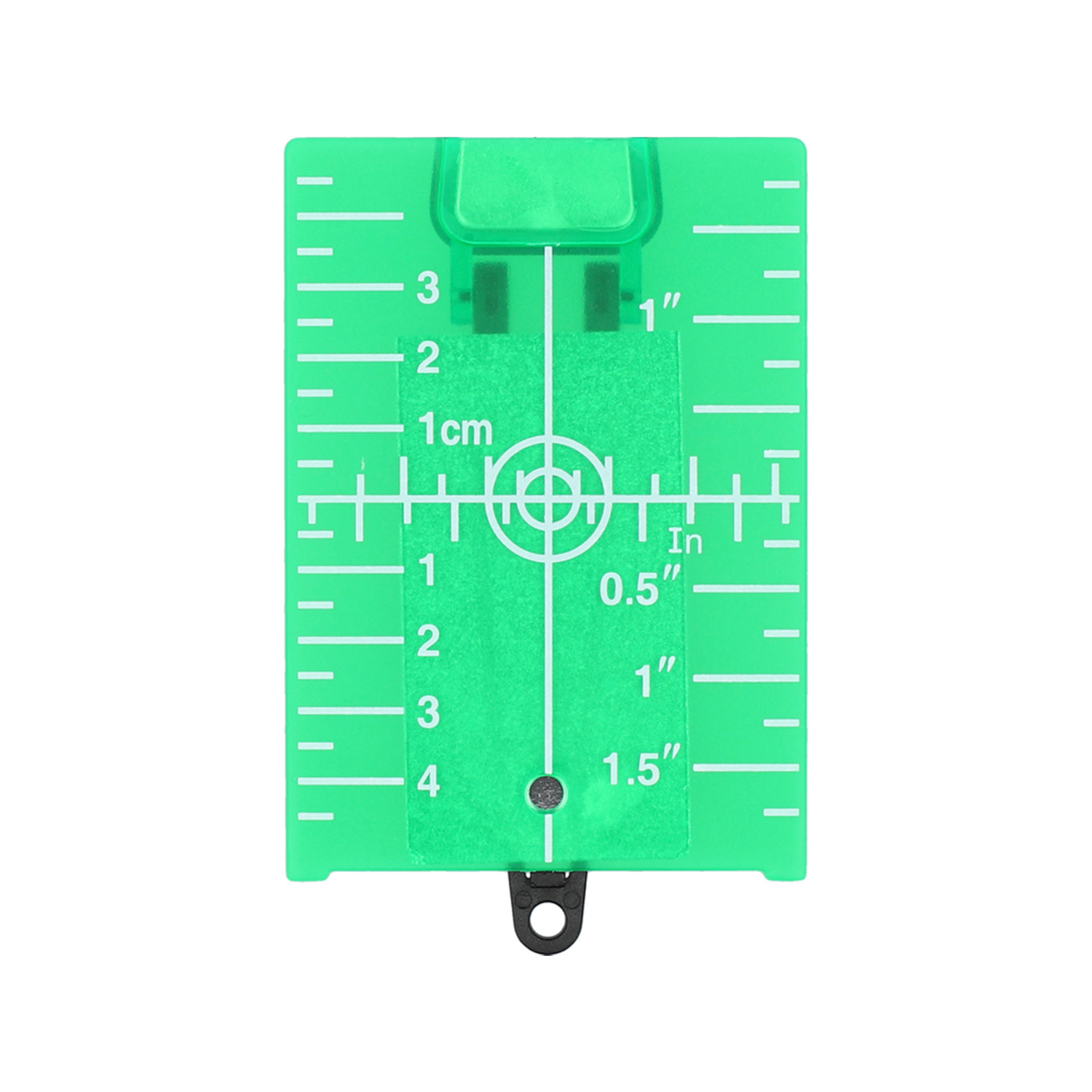

| Set Includes | Laser, wall bracket, tripod adapter, tripod, metal plate, green glasses, target plate, carrying bag with vibration-damping padding, additional handle |
| Applications | Construction, renovation, finishing work |
