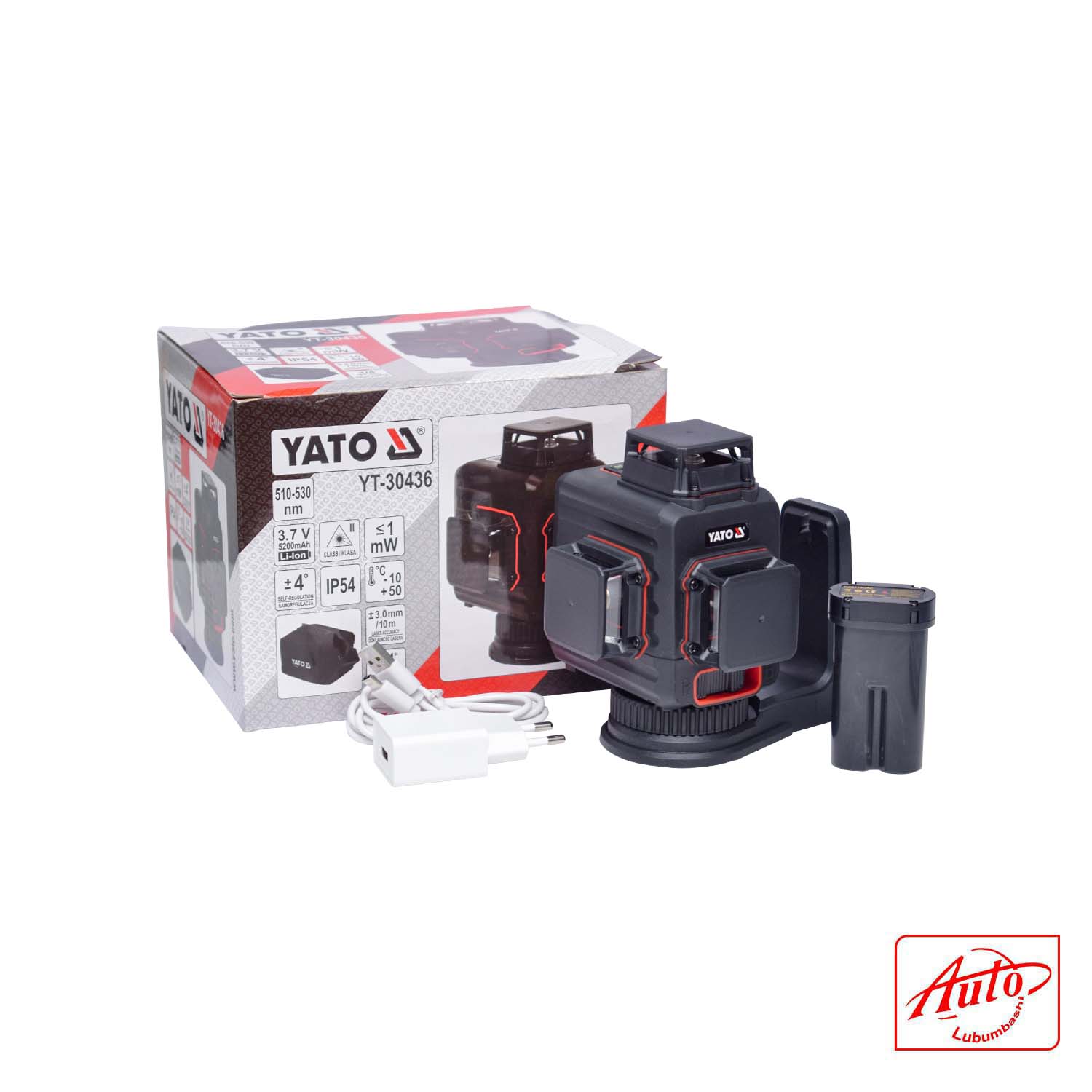

The YATO YT-30436 12-Line Green Laser 3D is a professional electronic level designed for multi-directional line marking and layout tasks.
It emits twelve clearly visible green lines with a precision of ±3 mm at 10 m, ensuring reliable results in complex projects.
Equipped with a self-levelling system (±4°) and a levelling time of ≤3 seconds, it guarantees fast and consistent setup.
Powered by an internal 3.7 V Li-Ion rechargeable battery (5200 mAh) with USB charging, it offers up to 8 hours of continuous operation.
The device features a 1/4″ tripod connection, a mounting bracket included in the set, and a robust IP54 protection rating, making it suitable for demanding site conditions.
Compact and lightweight (0.45 kg), it is easy to transport and handle, while its green laser lines provide superior visibility compared to red lasers.
Applications include construction, renovation, and finishing work, where precise 3D line projection is essential.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | Yato |
| Part No. | YT-30436 |
| Product Type | 12-Line Green Laser 3D |
| Laser Class | 2 |
| Laser Power | ≤1 mW (max output 20 mW) |
| Laser Wavelength | 510–530 nm (green, ~520 nm) |
| Accuracy | Line H/V ±3 mm / 10 m |
| Self-Levelling Range | ±4° (levelling range 3° ±1°) |
| Levelling Time | ≤3 s |
| Laser Indicator Type | Twelve-line |
| Power Supply | Internal Li-Ion rechargeable battery |
| Battery Voltage | 3.7 V d.c. |
| Battery Capacity | 5200 mAh |
| Max. Working Time | 8 h |
| Tripod Connection | 1/4″ (6.35 mm) 20UNC |
| Operating Temperature | -10 to +50 °C |
| Protection Rating | IP54 |
| Weight | 0.45 kg |
| Set Includes | Laser unit, mounting bracket |
| Applications | Construction, renovation, finishing work |
