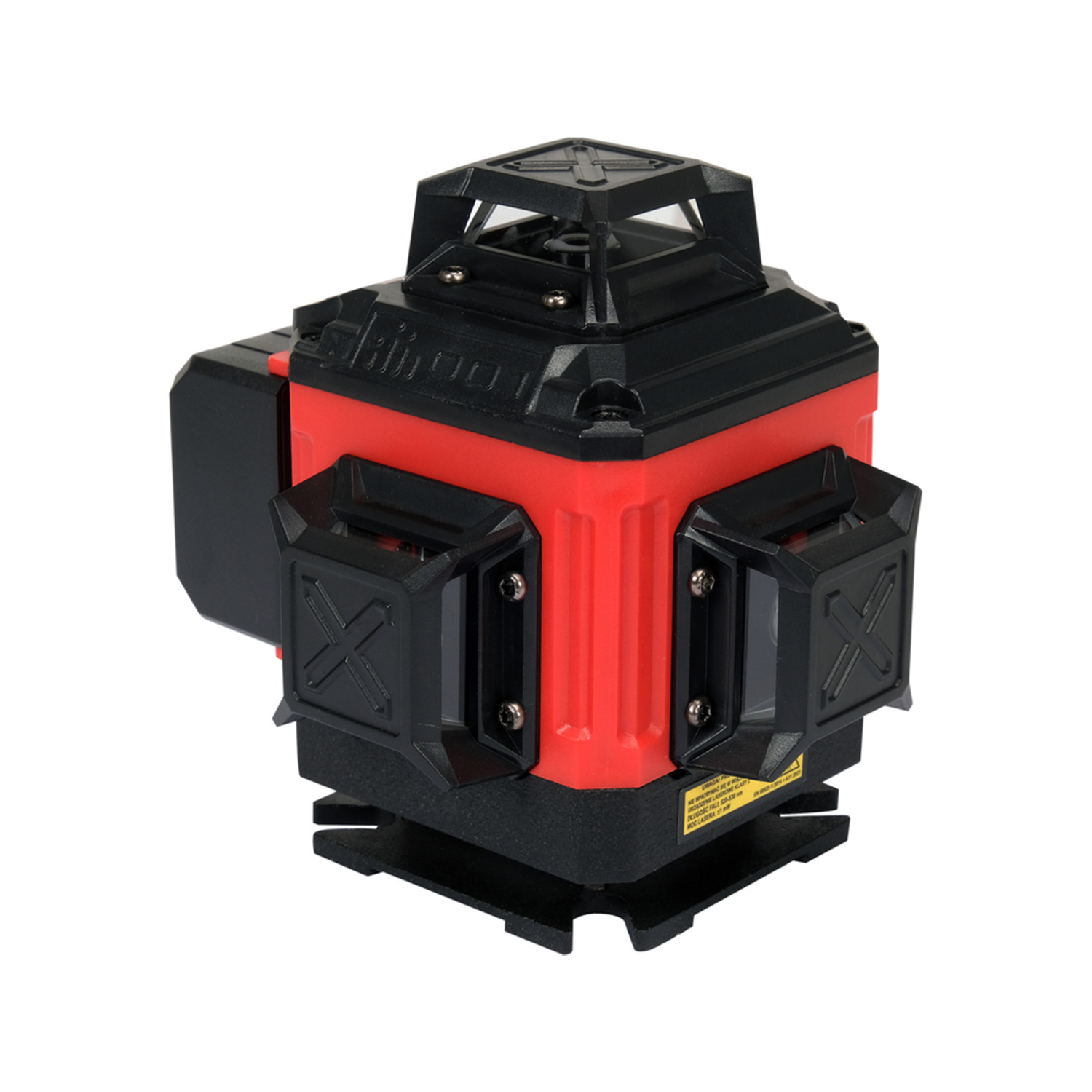

The YATO YT-30415 4D Green Laser is a professional levelling tool designed for comprehensive coverage and precise alignment.
It emits 16 green laser lines for simultaneous determination of levels and plumbs on all walls in real time, with excellent visibility up to 25 m indoors.
Equipped with a self-levelling system (±3°) and a quick levelling time ≤3 seconds, it ensures fast and reliable setup.
Powered by two Li-Ion rechargeable batteries (3.7 V, 2400 mAh, 8.88 Wh), it offers up to 8 hours of continuous operation.

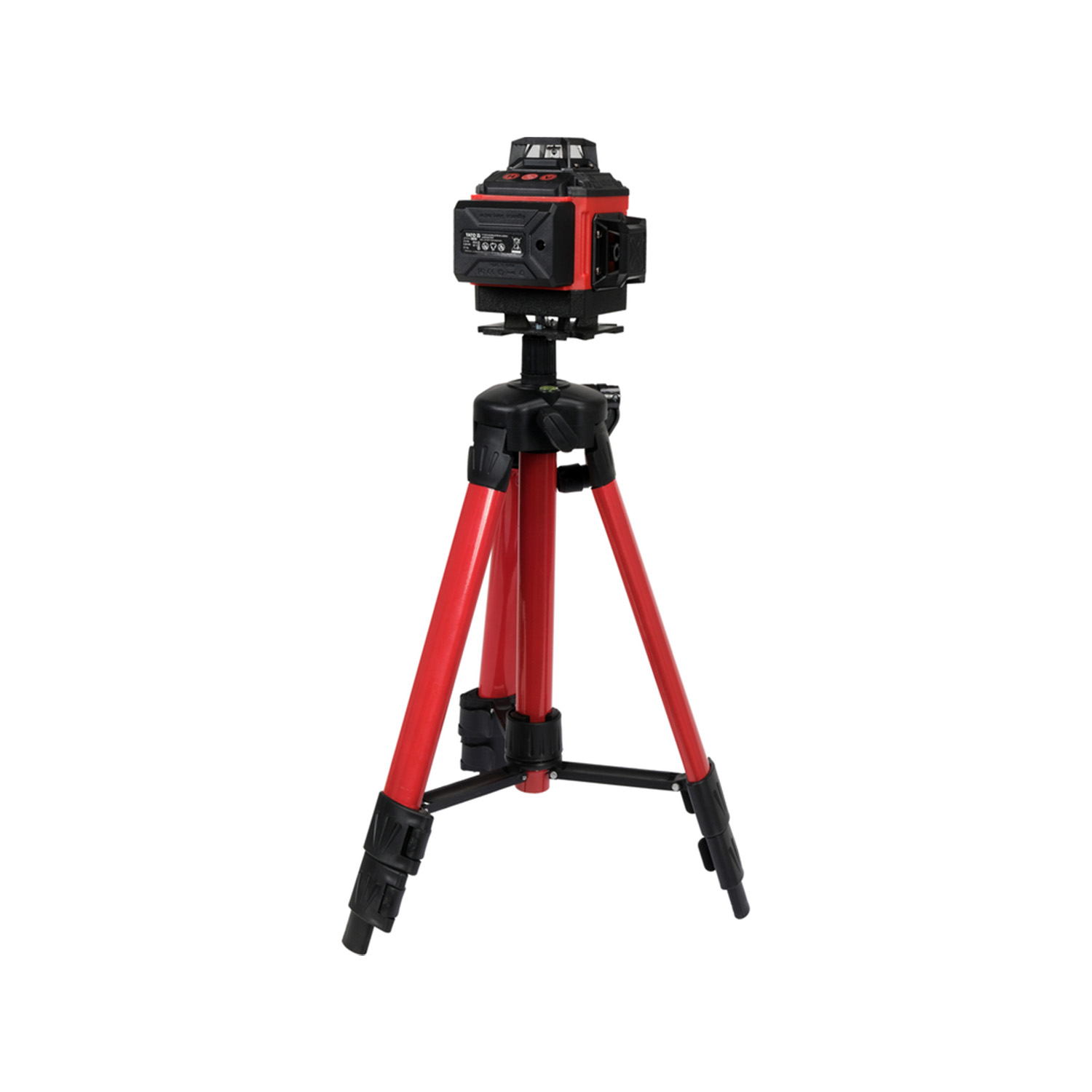

The set includes a 1.2 m aluminum tripod, remote control, wall mount, tripod adapter, adjustable platform, metal plate, and protective goggles, all stored in a durable transport case with vibration-damping padding.
Compact and lightweight (0.57 kg), it is easy to handle while delivering professional-grade accuracy of ±3 mm/10 m.
Applications: construction, renovation, and finishing work requiring precise 4D line projection.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | Yato |
| Product Type | 4D Green Laser |
| Laser Power | ≤1 mW (max output 20 mW) |
| Laser Wavelength | 520–530 nm (green) |
| Accuracy | ±3 mm / 10 m |
| Self-Levelling Range | ±3° |
| Levelling Time | ≤3 s |
| Laser Lines | 16 (4D coverage) |
| Working Range | 25 m |
| Power Supply | Rechargeable Li-Ion battery |
| Battery Voltage | 3.7 V d.c. |
| Battery Capacity | 2400 mAh (2 included) |
| Battery Energy | 8.88 Wh |
| Max. Working Time | 8 h |
| Dimensions | 110 × 100 × 135 mm |
| Weight | 0.57 kg |

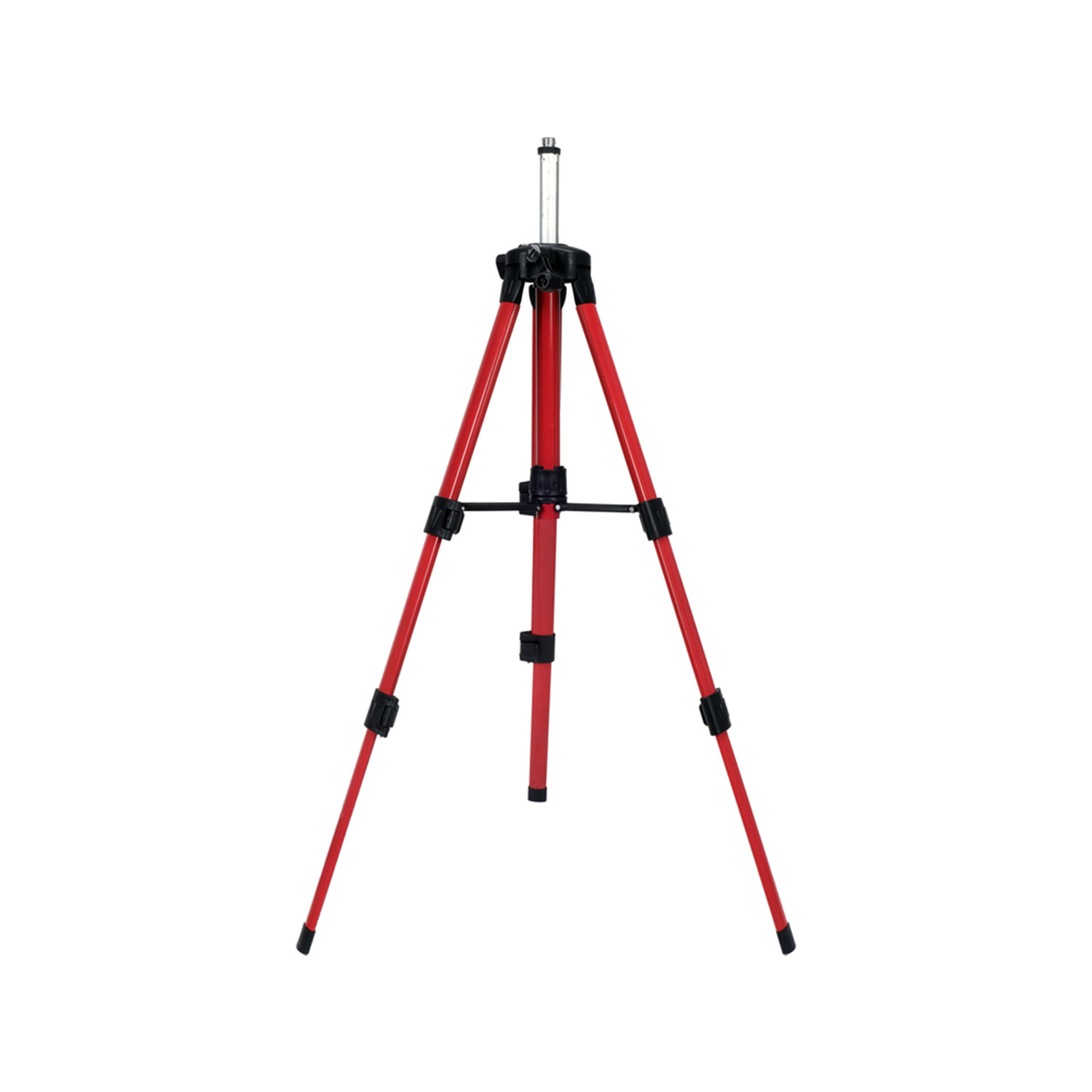

| Tripod Height | 1.2 m |
| Tripod Connection | 1/4″ (6.35 mm) 20UNC |
| Tripod Included | Yes |
| Protection Rating | IP52 |
| Set Includes | Laser, 2 batteries, charger, remote control, wall mount, tripod adapter, tripod, metal plate, adjustable platform, goggles, durable case |
| Appliations | Construction, renovation, finishing work |
