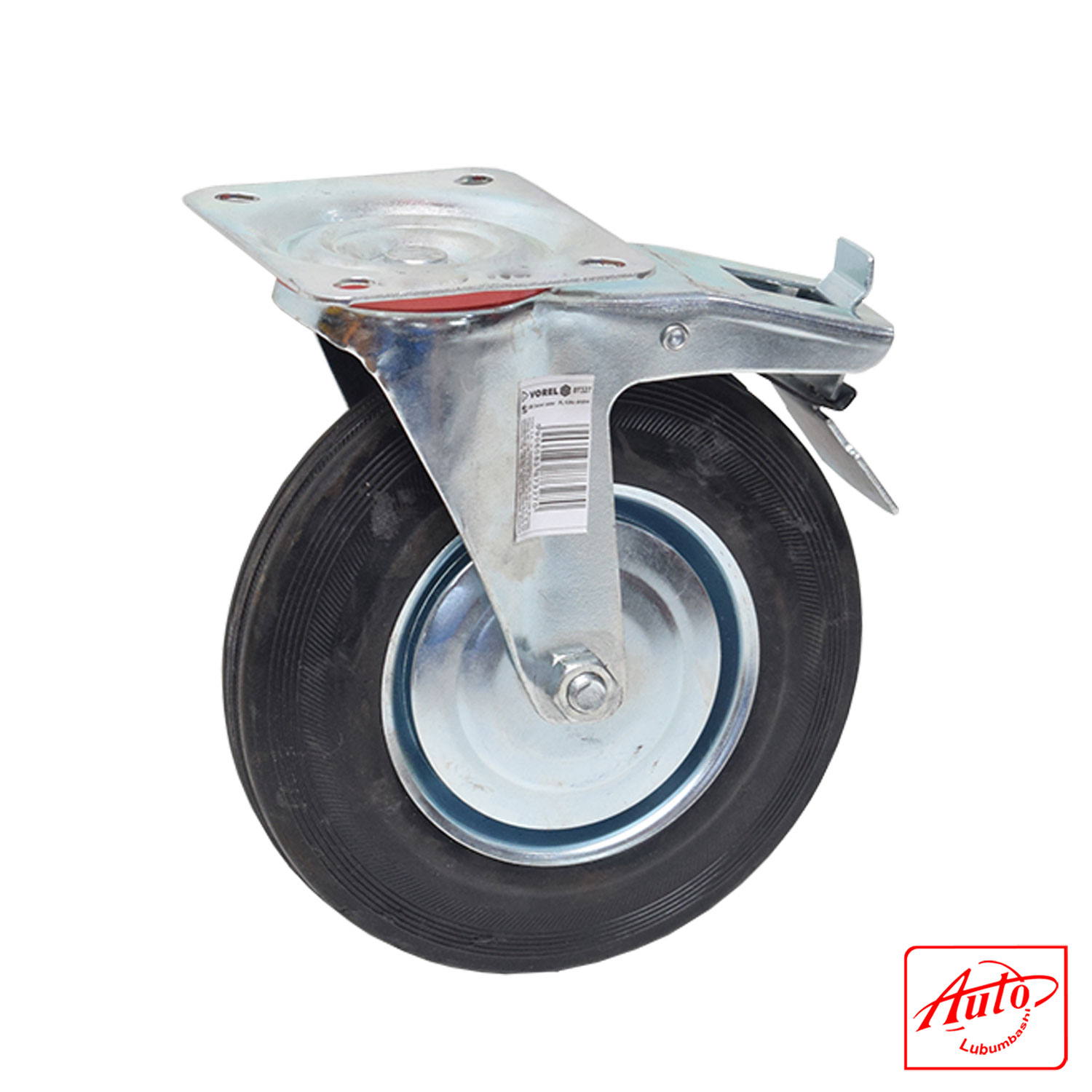

The Swivel Caster Wheel with Brake – Ø 200 mm is a versatile component for transport trolleys, carts, furniture, and handling equipment.
Its black rubber wheel ensures quiet rolling, shock absorption, and floor protection, making it suitable for smooth and slightly uneven surfaces.
The galvanized steel swivel bracket allows 360° rotation, providing excellent maneuverability.
Equipped with a foot-operated brake system, it locks both the wheel and swivel action, ensuring safe and stable positioning when required.
This wheel is ideal for industrial, warehouse, office, and domestic applications, where both mobility and stability are essential.
Often combined with fixed caster wheels, it provides a balance of directional control and maneuverability.
TECHNICAL DETAILS:
| Specification | Details |
| Product Type | Heavy-duty swivel castor with brake |
| Wheel Diameter | 200 mm |
| Wheel Width | ≈ 50 mm |
| Wheel Material | Solid rubber, non-marking |
| Hub Material | Steel |
| Bracket Material | Strong steel, zinc plated |
| Mounting Plate Size | 235 × 110 mm (overall product dimensions) |
| Bolt Hole Spacing | 75 × 55 mm (standard for plate fitting) |
| Load Capacity | 200 kg |
| Wheel Hardness | ~80° Shore A |
| Brake Type | On/off locking brake |
| Operating Temperature | -10 °C to +50 °C |
| Features | 360° swivel rotation, ball bearing, non-marking tyre, robust steel plate |
| Applications | Heavy-duty dollies, transport trolleys, warehouse carts, direct load attachment |
