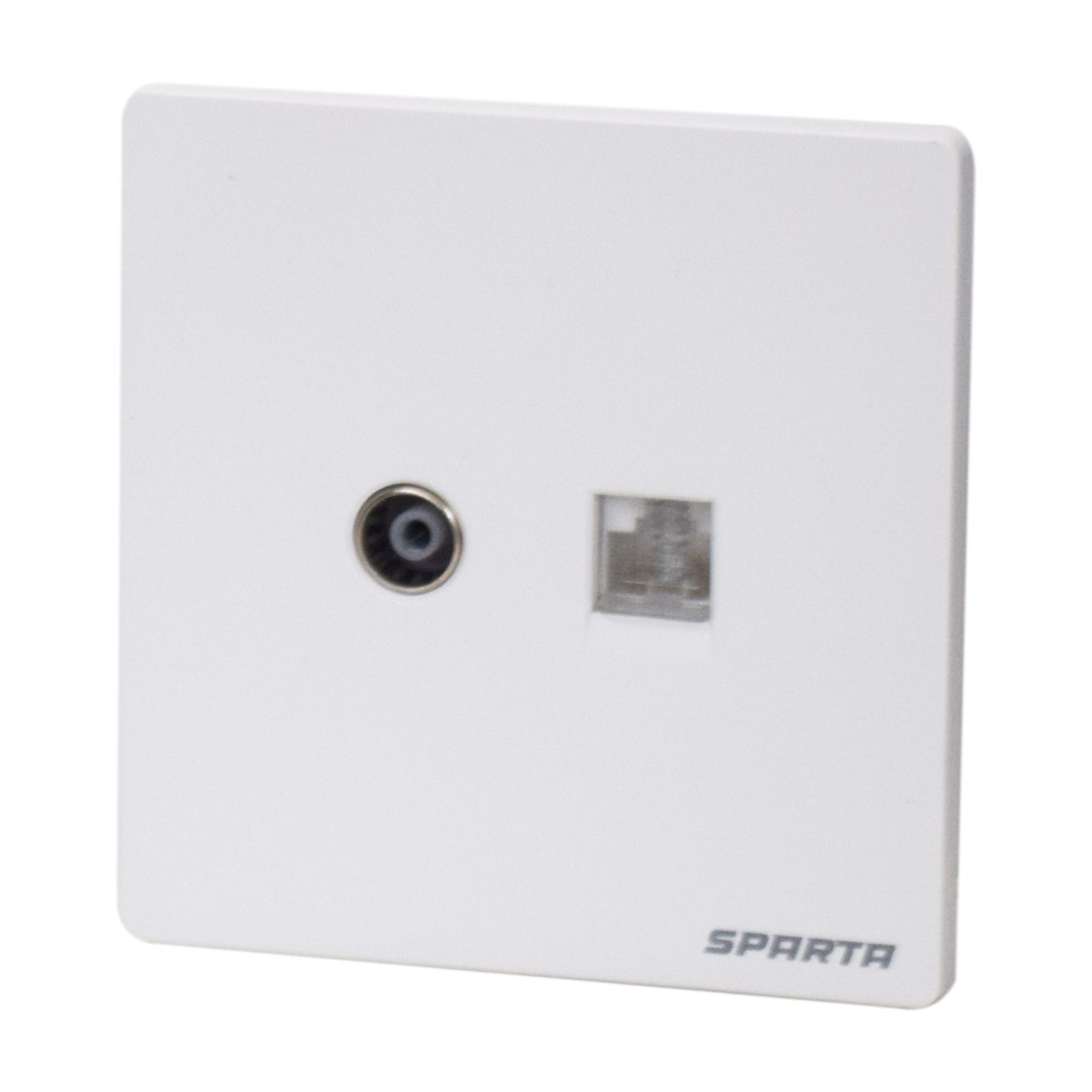

This wall plate is part of the CN80 Series by Sparta Electrical, offering a sleek, slim-profile design that integrates seamlessly with other switches and sockets in the range.
The coaxial TV socket supports aerial, cable, or satellite connections, while the RJ45 data port supports Category 5e (Cat 5e) cabling for high-speed Ethernet connections up to 1,000 Mbps (Gigabit speeds).

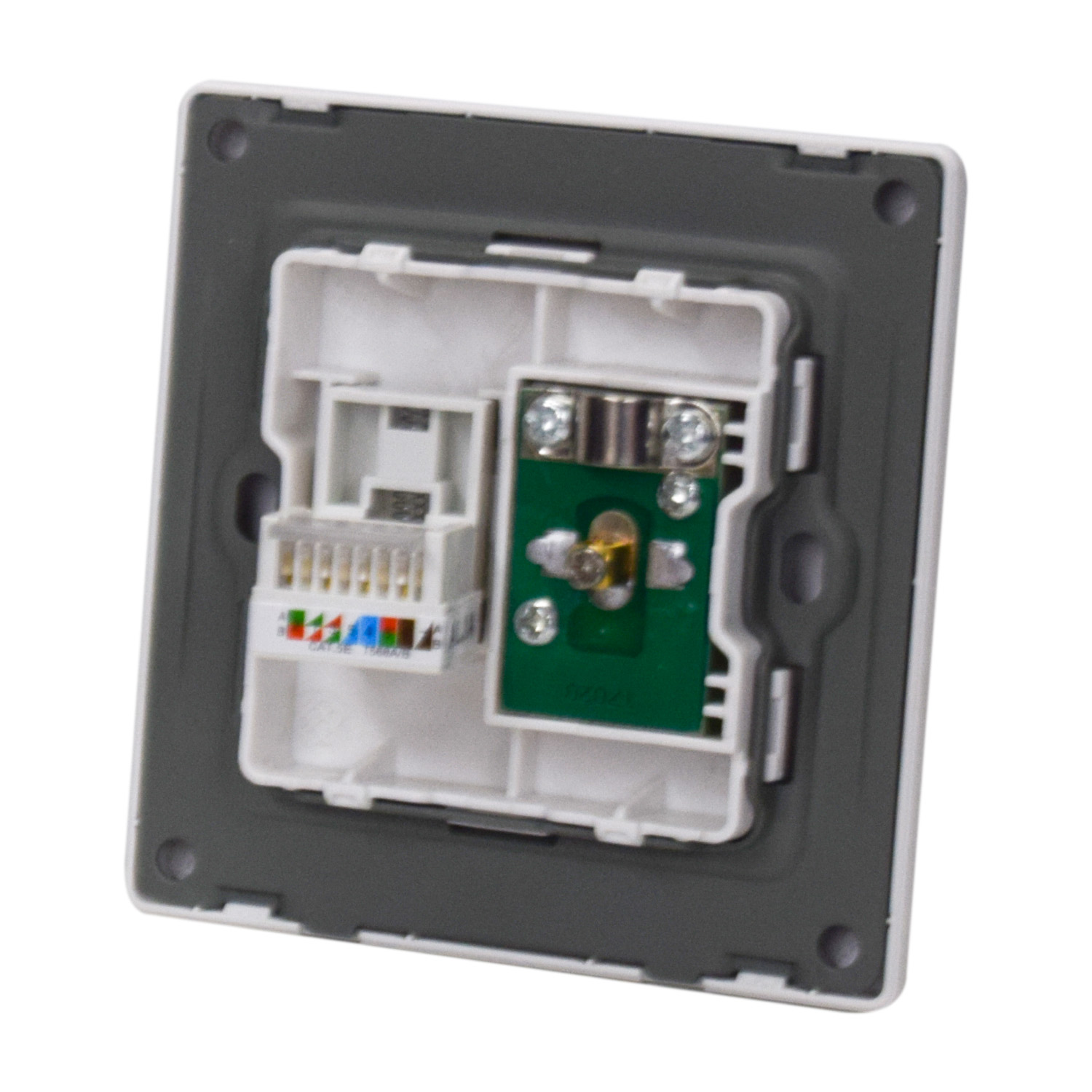

The RJ45 port is compatible with EIA/TIA T568A and T568B wiring standards, ensuring flexibility during installation. The plate is built with flame-retardant PC material and features shielding to minimize interference between TV and data signals, ensuring a clear picture and stable internet performance.
Its square footprint and 10 mm slim profile depth align with CN80 architectural standards, providing a modern flush-mounted appearance. This makes it ideal for living rooms, bedrooms, and home offices where both TV and internet connectivity are required.
TECHNICAL DETAILS:
| Specification | Details |
| Brand | Sparta Electrical |
| Series | CN80 |
| Product Type | TV and Data Socket Wall Plate |
| Connectors | Coaxial TV socket + RJ45 Ethernet port |
| Data Standard | Cat 5e (supports up to 1 Gbps, 100 MHz bandwidth) |
| Wiring Standards | EIA/TIA T568A and T568B |
| TV Connector Type | Standard female F-Type or IEC |
| Voltage/Power | Passive connectors (no direct load rating) |
| Shape | Square |
| Profile Depth | Slim, approx. 10 mm |
| Construction Materials | Flame-retardant PC (polycarbonate) |
| Shielding | Designed to minimize crosstalk between TV and data signals |
| Applications | Residential, commercial, home offices, hotels |
| Features | 2-in-1 solution, modern slim design, high-speed data + TV connectivity |
