self-healing oxygen cylinder for underground miners – 45min Black and yellow

SKU: OXY001

$4.00

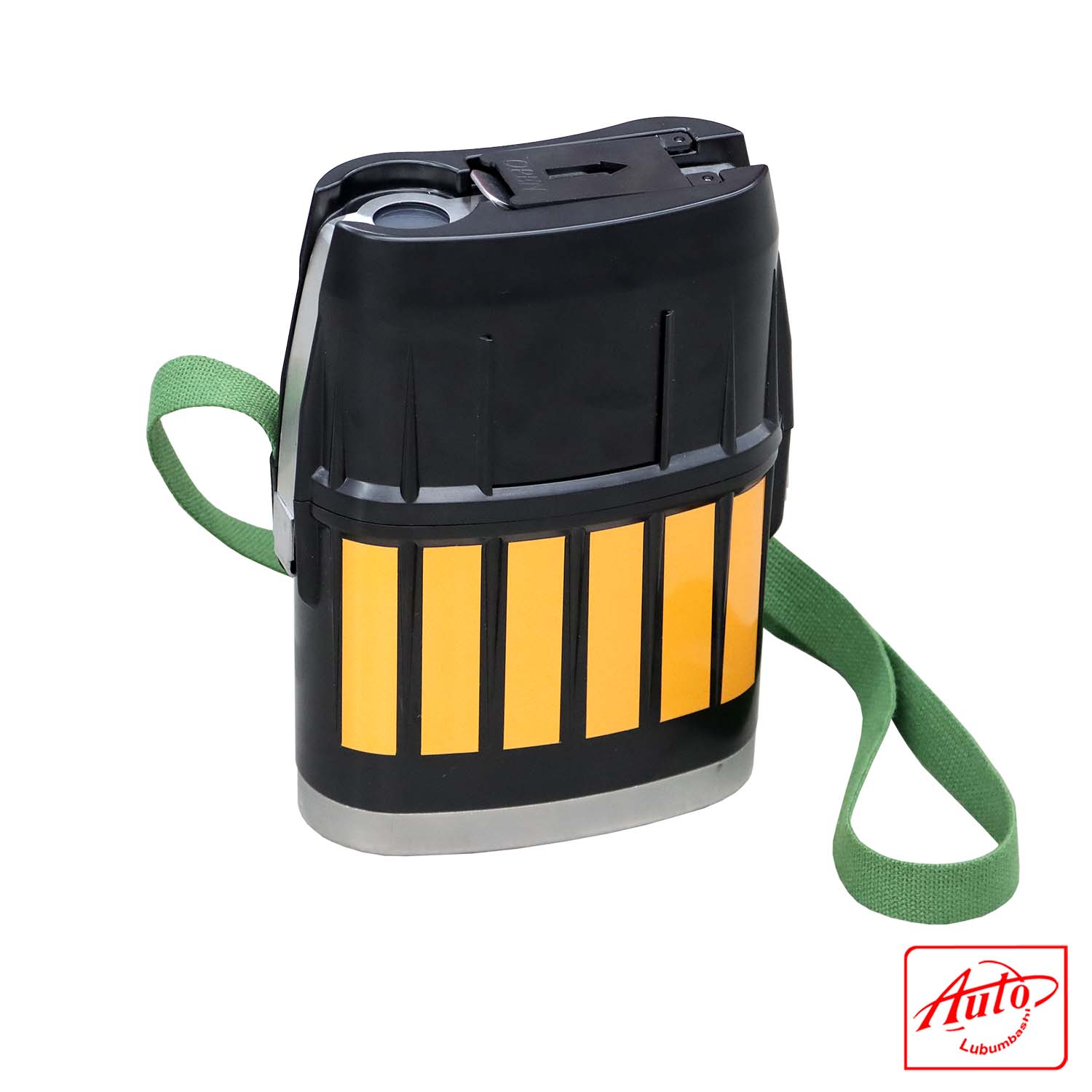

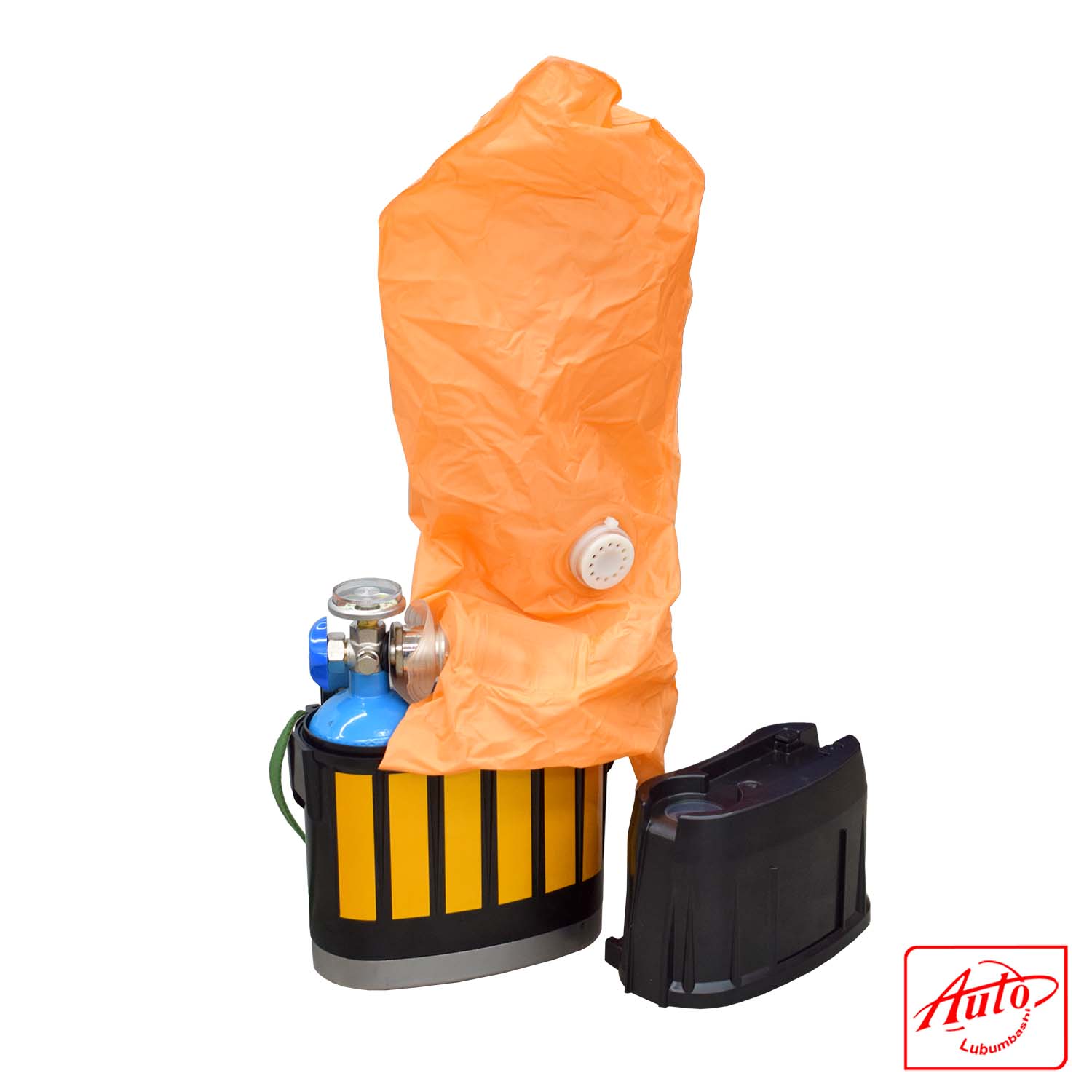

The Isolated Compressed Oxygen Self-Rescuer ZYX45(A) is a breathing apparatus that uses compressed oxygen to form isolated oxygen in a closed circuit, providing the wearer with clean oxygen. It is primarily used in mines or environments with toxic gases or oxygen deficiency.

The Isolated Compressed Oxygen Self-Rescuer ZYX45(A) is a life-saving breathing apparatus designed for use in hazardous environments where toxic gases are present or where there is an oxygen deficiency. It utilizes compressed oxygen to create isolated oxygen in a closed circuit, ensuring the wearer has a continuous supply of clean oxygen. This self-rescuer is mainly used under mines and in various industrial applications to protect workers from inhaling harmful substances. The apparatus is compact, lightweight, and easy to use, making it an essential piece of safety equipment in challenging environments.



TECHNICAL DETAILS:



Feature Description
Rated Protective Time ≥45 minutes
Filling Pressure for Oxygen Bottle 19-21 MPa
Oxygen Storage Capacity ≥80L
Inhalation Oxygen Concentration ≥25% (by volume)
Inhalation Carbon Dioxide Concentration ≤2.0% (by volume)
Inhaling Temperature (at ambient temperature of (20±3) ºC) <50ºC
Oxygen-Supplying Modes Quantitative Oxygen Supply: >1.2L/min

Oxygen Delivery by Demand Valve: >60L/min

Oxygen Delivery by Manual Switch: >60L/min

Opening Pressure of Safety Valve ≤1 MPa
Opening Force of Sealing Belt (40-120) N
Automatic Opening Pressure of Automatic Supply Valve (-100 ~ -400) Pa
Exhaust Pressure (150~300) Pa
Dimensions (244183102) mm
Weight 2.3 Kg
