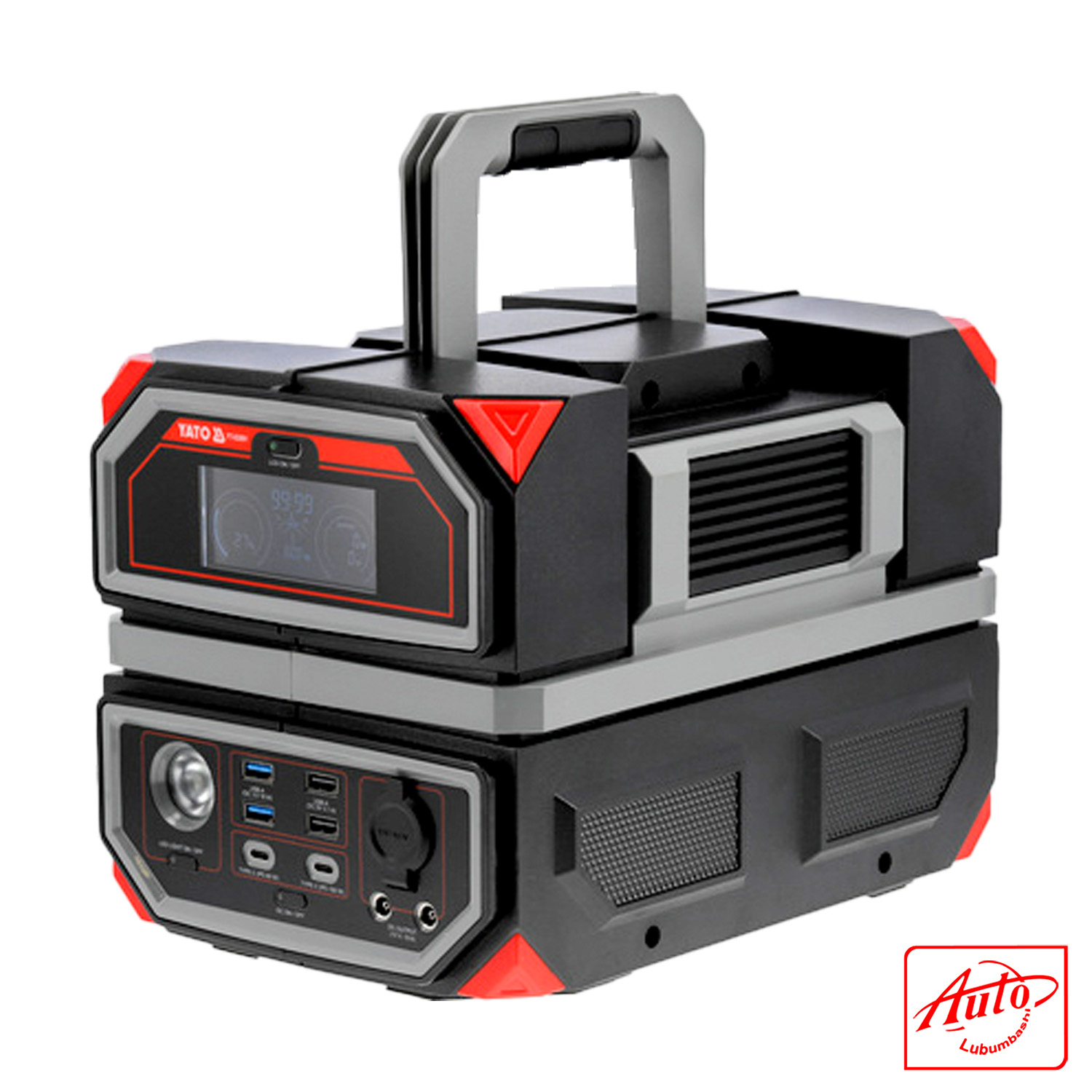

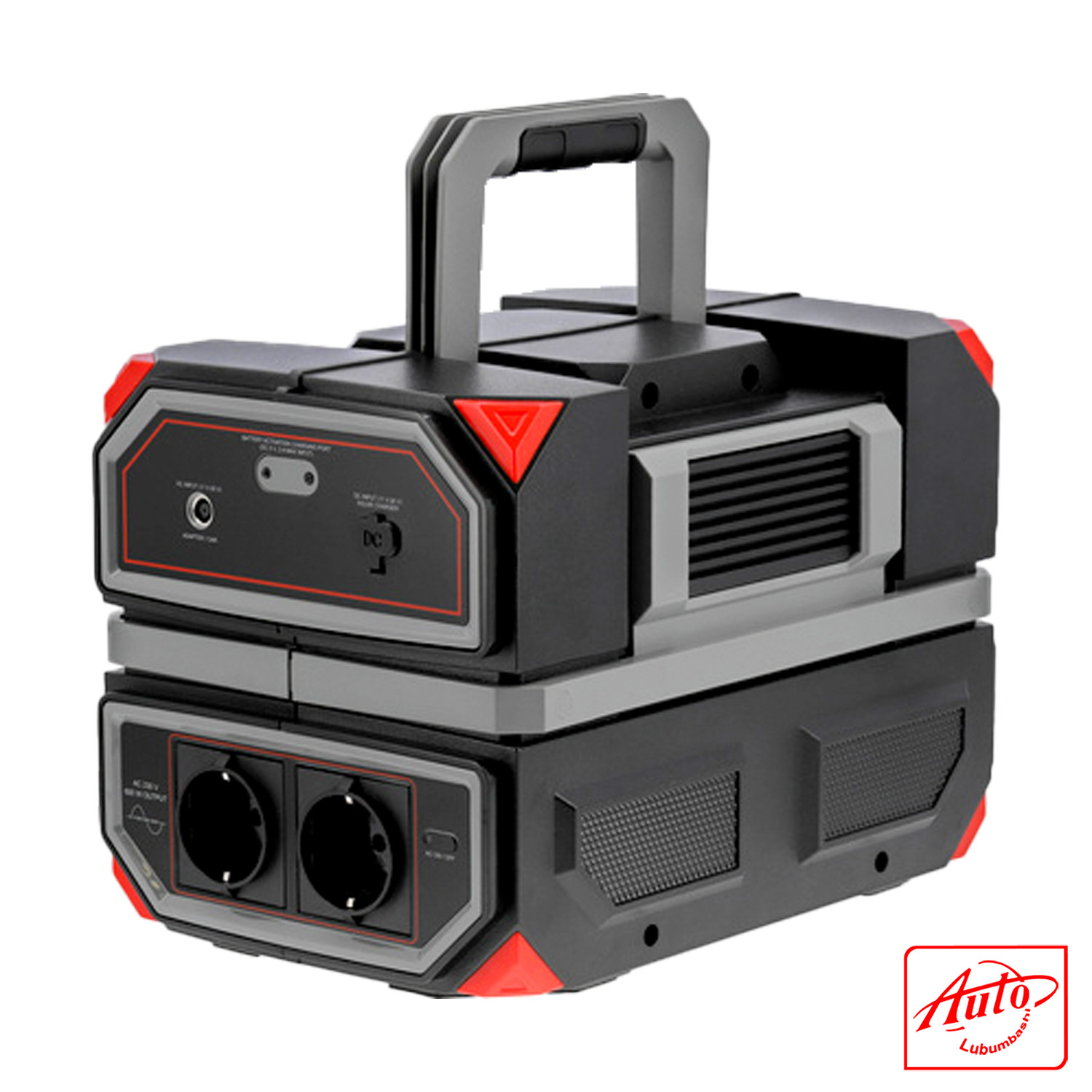

The Yato YT-83091 Portable Battery Station is a versatile power solution for home backup, outdoor activities, and emergency use. It delivers 600W continuous AC output (1200W peak) with a pure sine wave inverter, ensuring compatibility with sensitive electronics such as laptops, routers, desktop computers, and furnace controllers.
Key features include:
- 504Wh Li-Ion battery pack (25.2V, 20,000mAh) with 56 high-discharge cells in NMC/INR 18650 housing.
- Capacity retention ≥80% after 500 cycles.
- Advanced BMS with protections against overcurrent, short circuit, over-discharge, over-voltage, and overheating.
- Cell balancing system to extend battery life.
- USB-C excitation port to restore operation if fully discharged to 0%.
- Multiple charging options: mains (110–240V), 12V car socket, or external solar panels (max 180W).
- Six USB ports:
- 2 × USB-A (5V/3.1A)
- 2 × USB-A with QC 3.0 (18W)
- 2 × USB-C PD (60W & 100W)
- 12V outputs: cigarette lighter socket (12V/10A) + 2 jack sockets (12V/10A).
- LED front light with 3 modes (including SOS).
- LCD display for real-time monitoring.
- Manufactured to automotive standards.
Performance:
- Operating time at 600W load: ~40 minutes.
- Charging time: ~4h (mains), 5–8h (car), ~8h (solar).
- THD ≤3% at full load.
TECHNICAL DETAILS:
| Specification | Details |
| Model | YT-83091 |
| Brand | Yato |
| Series | GRF |
| Battery Type | Li-Ion (NMC/INR 18650) |
| Battery Voltage | 25.2V DC |
| Battery Capacity | 20,000mAh |
| Energy Capacity | 504Wh |
| Rated Power | 600W |
| Peak Power | 1200W |
| Output Waveform | Pure sine |
| AC Input | 110–240V, 50/60Hz |
| Charging Options | Mains, 12V car, solar panels |
| Max. Charging Power | 180W |
| Operating Temp. (Charge) | 0–45°C |
| Operating Temp. (Discharge) | –20 to +60°C |
| Storage Temp. | 10–30°C |
| Protection Grade | IP20 |
| Insulation Class | II |
| Dimensions | 287 × 205 × 198 mm |
| Weight | 6.2 kg |
| Display | LCD |
| Lighting | LED (3 modes, incl. SOS, 2W) |
| Set Includes | Station, mains charger, 12V car charging cable, solar charging cable |
| Responsible Entity (EU) | TOYA S.A. |
