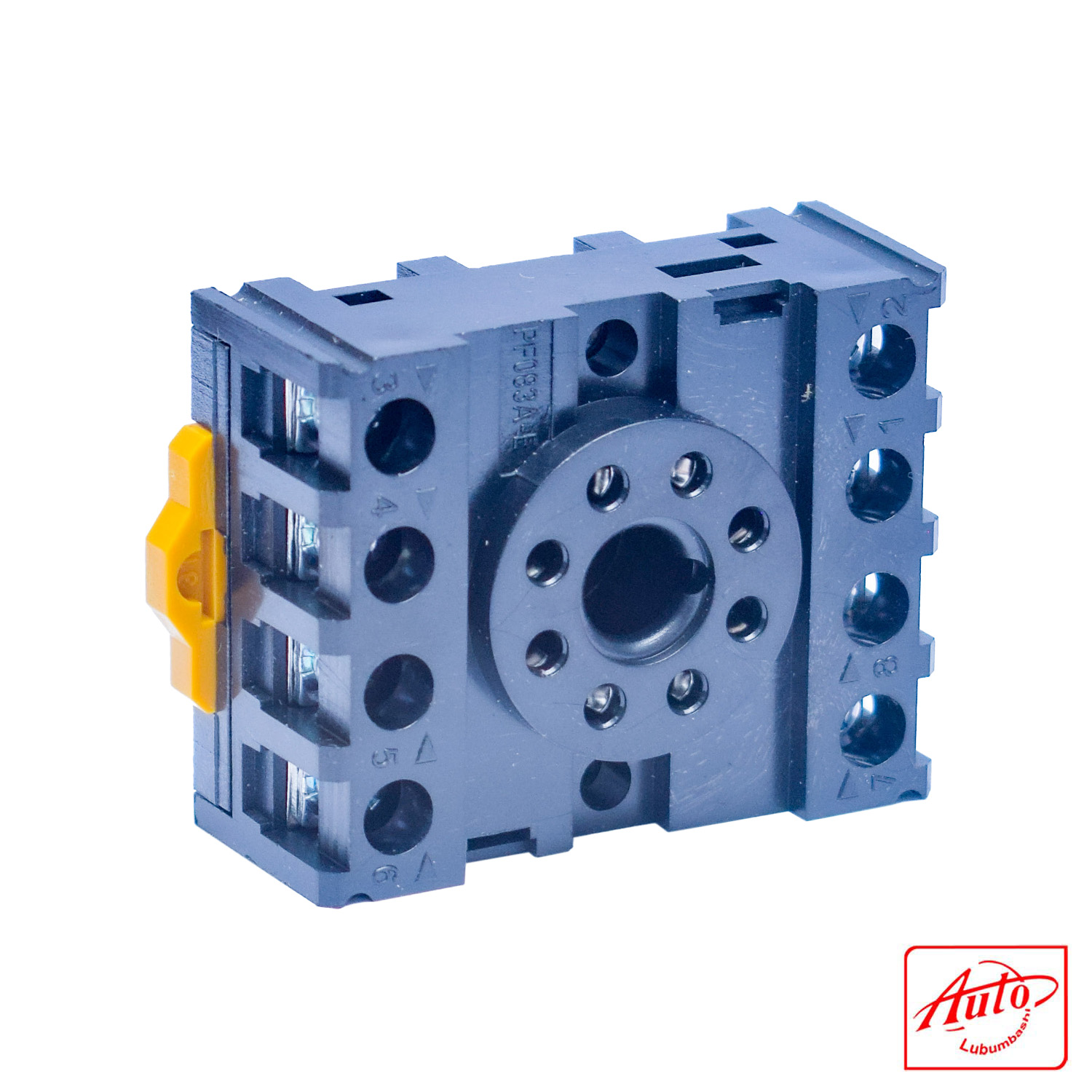

The PF083A-E relay socket by Omron is a robust and versatile base designed for general-purpose plug-in relays, especially the MK-S series. It features 8 straight-position contacts, DPDT configuration, and screw terminal connections for secure wiring.
This socket supports DIN rail (EN/IEC 60715) or surface mounting, offering flexibility in installation. It includes a hold-down clip and release lever for secure relay retention and easy removal. With a current rating of 10A and voltage rating of 250VAC, it’s ideal for industrial automation, control panels, and machinery.
The PF083A-E complies with UL, CSA, and CE standards, and is RoHS compliant, ensuring safety and environmental reliability.
TECHNICAL DETAILS:
| Specification | Value |
| Model | PF083A-E |
| Manufacturer | Omron |
| Compatible Relays | MK-S series (e.g., MK2P, MK2PI) |
| Contact Configuration | DPDT |
| Number of Pins | 8 |
| Terminal Type | Screw |
| Mounting Type | DIN rail or surface mount |
| Rated Current | 10A |
| Rated Voltage | 250VAC |
| Dimensions (W×H×D) | 41 × 52 × 21 mm |
| Orientation | Straight |
| Certifications | UL, CSA, CE |
| Compliance | RoHS |
| Accessories Included | Hold-down clip, release lever |
