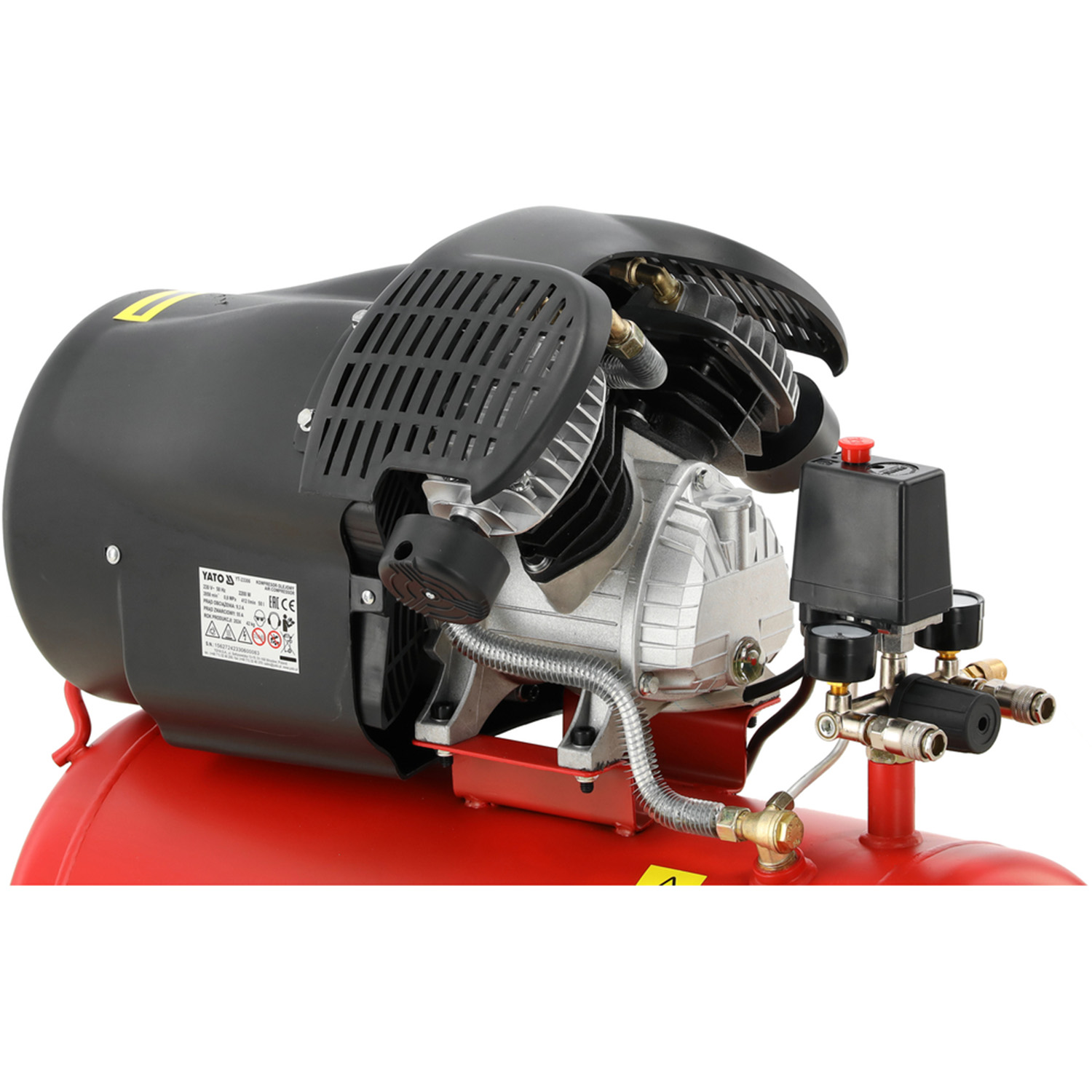

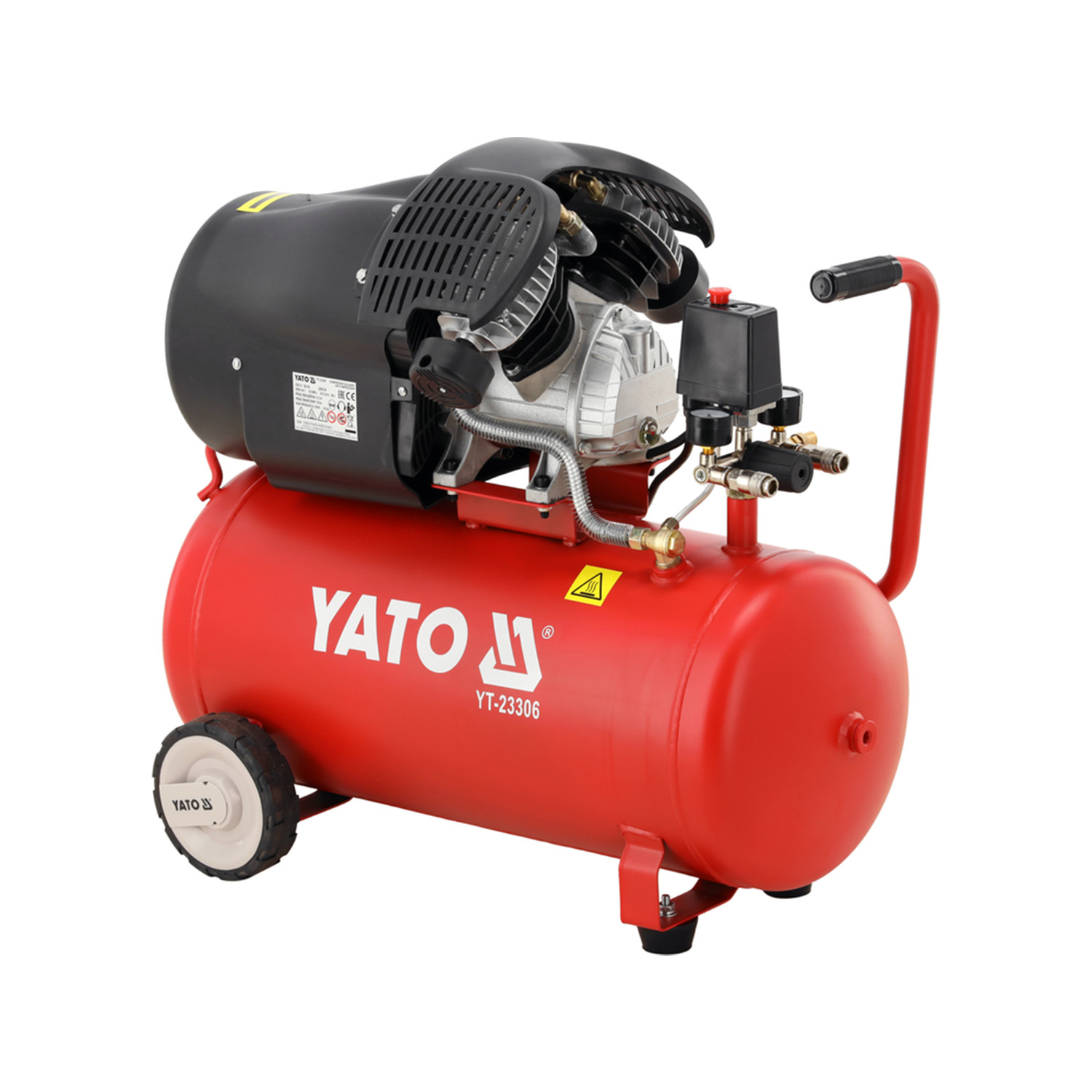

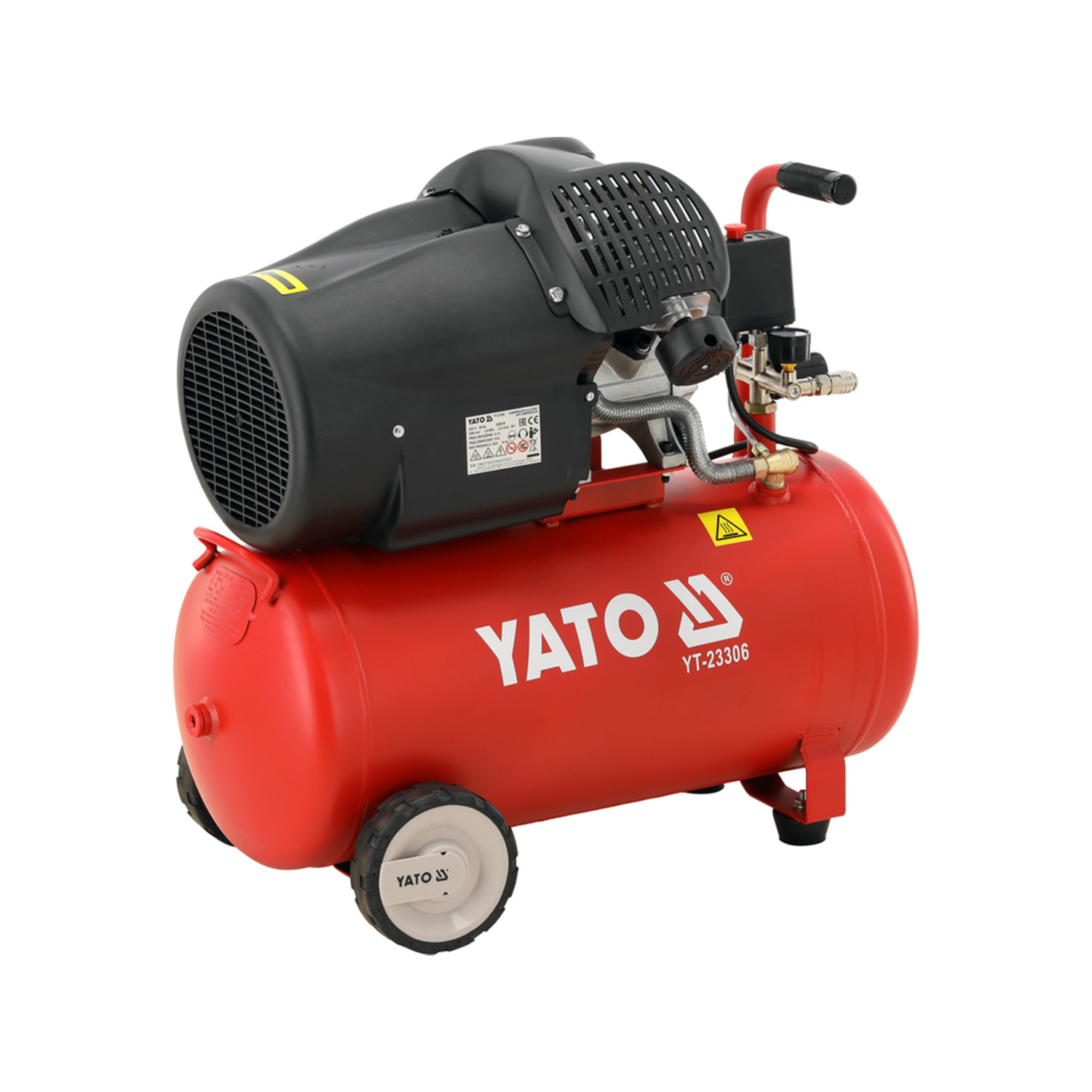

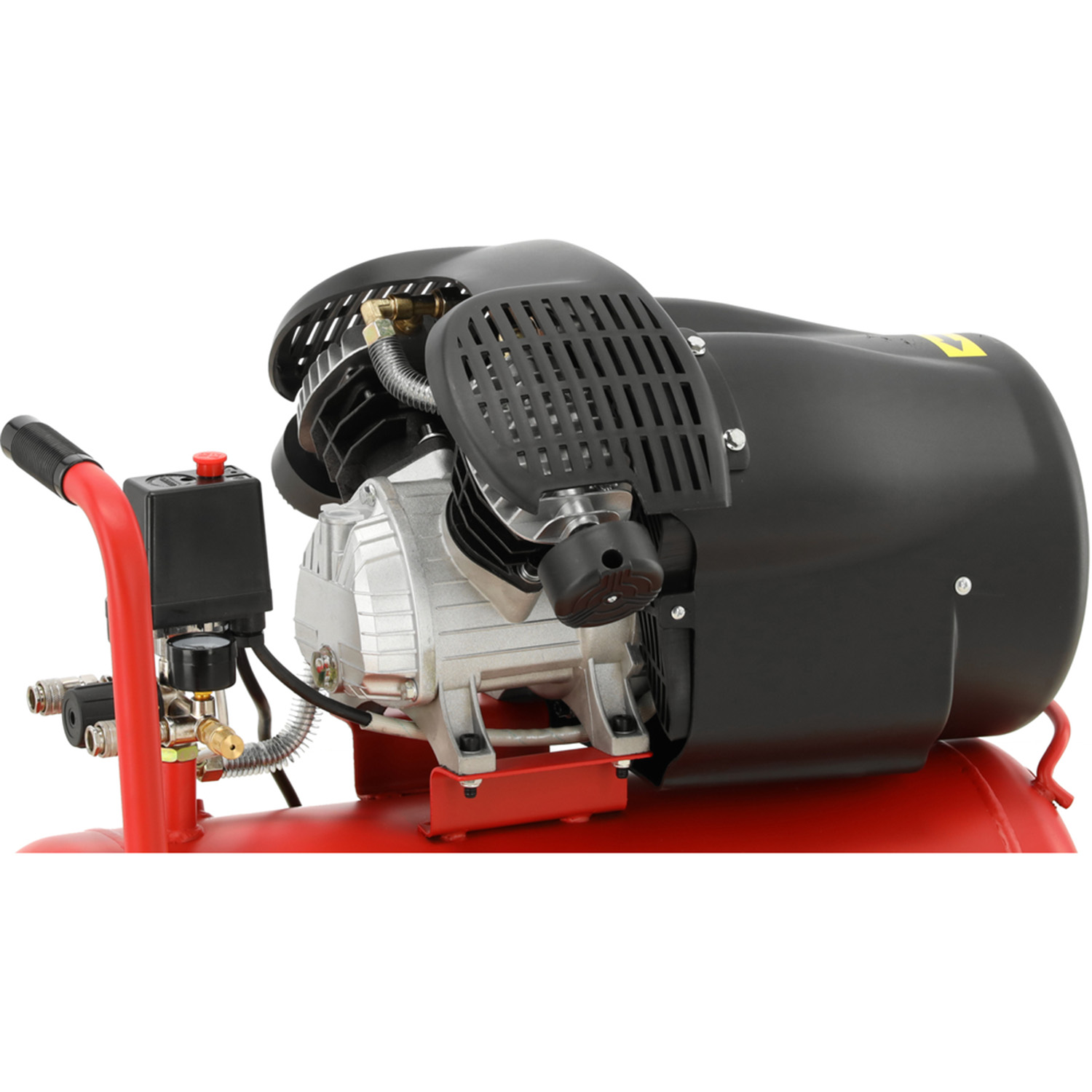

The Oil Compressor – 50L, Two Cylinders (Model YT-23306) is a robust and efficient machine engineered for professional and industrial applications. Equipped with a two-cylinder engine and a 3 hp (2200 W) motor, it delivers a maximum pressure of 8 bar (116 PSI) and an efficiency of 412 l/min, ensuring consistent airflow for demanding tasks.
Its 50-liter tank provides sufficient capacity for extended operation, while the manometer allows precise monitoring of pressure. The compressor is fitted with two wheels for mobility and a quick coupler set (x2) for easy tool connection.
Built with durability and safety in mind, it features electrical insulation class I, IPX0 protection grade, and operates at a noise level of 75.1 dB(A) sound pressure. Weighing 42 kg, the compressor balances portability with solid construction, making it ideal for workshops, garages, and industrial environments.
TECHNICAL DETAILS:
| Specification | Value |
| Model Number | YT-23306 |
| Type | Oil compressor, two cylinders |
| Tank Capacity | 50 liters |
| Power | 3 hp / 2200 W |
| Max Pressure | 0.8 MPa / 8 bar / 116 PSI |
| Efficiency | 412 l/min |
| Speed | 2850 min⁻¹ |
| Voltage/Frequency | 230 V AC / 50 Hz |
| Short Circuit Current | 55 A |
| Load Current | 9.3 A |
| Cylinders | 2 |
| Cooling | Yes |
| Wheels | 2 |
| Manometer | Yes |
| Insulation Class | I |
| Protection Grade | IPX0 |
| Sound Pressure | 75.1 ± 2.11 dB(A) |
| Sound Power | 95.1 ± 2.11 dB(A) |
| Weight | 42 kg |
| Contents of Set | Compressor, quick coupler x2 |
