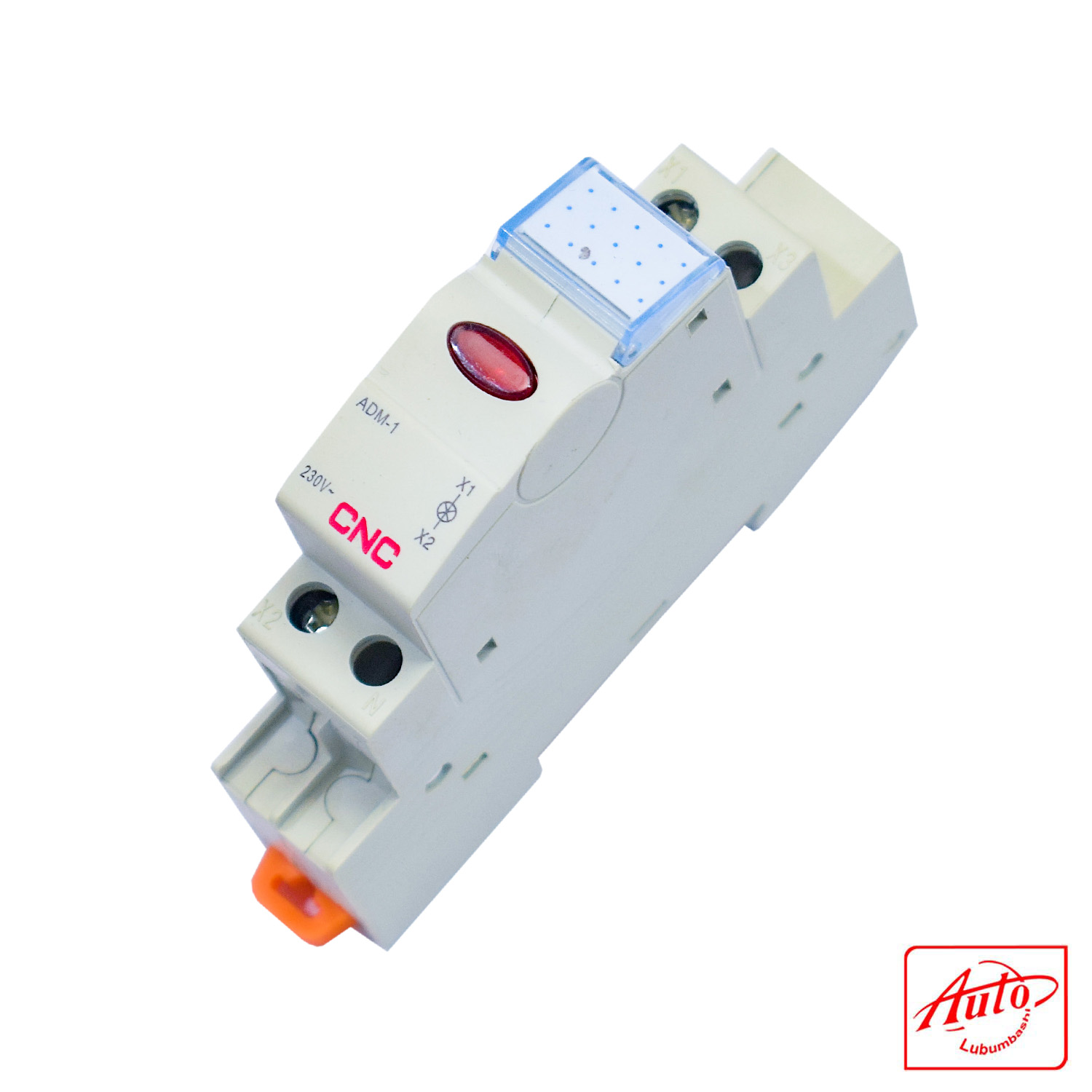

Modular Signal Lamp – ADM-1 R 220V-CNC RED, LED, DIN Rail Mounted

SKU: ELC3050

$2.00

Red LED signal lamp for 220V AC circuits. Compact modular design with low power consumption and easy DIN rail installation.

Category:

The ADM-1 R 220V-CNC RED modular signal lamp provides clear visual indication in electrical panels operating at 220V AC. Featuring a bright red LED, it is ideal for status signaling in control cabinets, distribution boards, and automation systems. Its compact CNC housing ensures space efficiency, while the DIN rail mounting allows for quick and secure installation. Built to comply with IEC 60947-5-1, it offers long service life, minimal power usage, and reliable performance in residential, commercial, and industrial environments.



TECHNICAL DETAILS:



Attribute Specification
Model ADM-1 R 220V-CNC RED
Rated Voltage 220V AC
Rated Frequency 50/60Hz
Illumination LED
Color Red
Max Power 0.6W
Service Duration 30,000 hours
Housing Type CNC modular
Installation Symmetrical DIN rail 35mm
Terminal Type Pillar terminal with clamp
Connection Capacity Rigid conductor 1.5mm²
Standard IEC 60947-5-1
Application Residential, commercial, industrial
