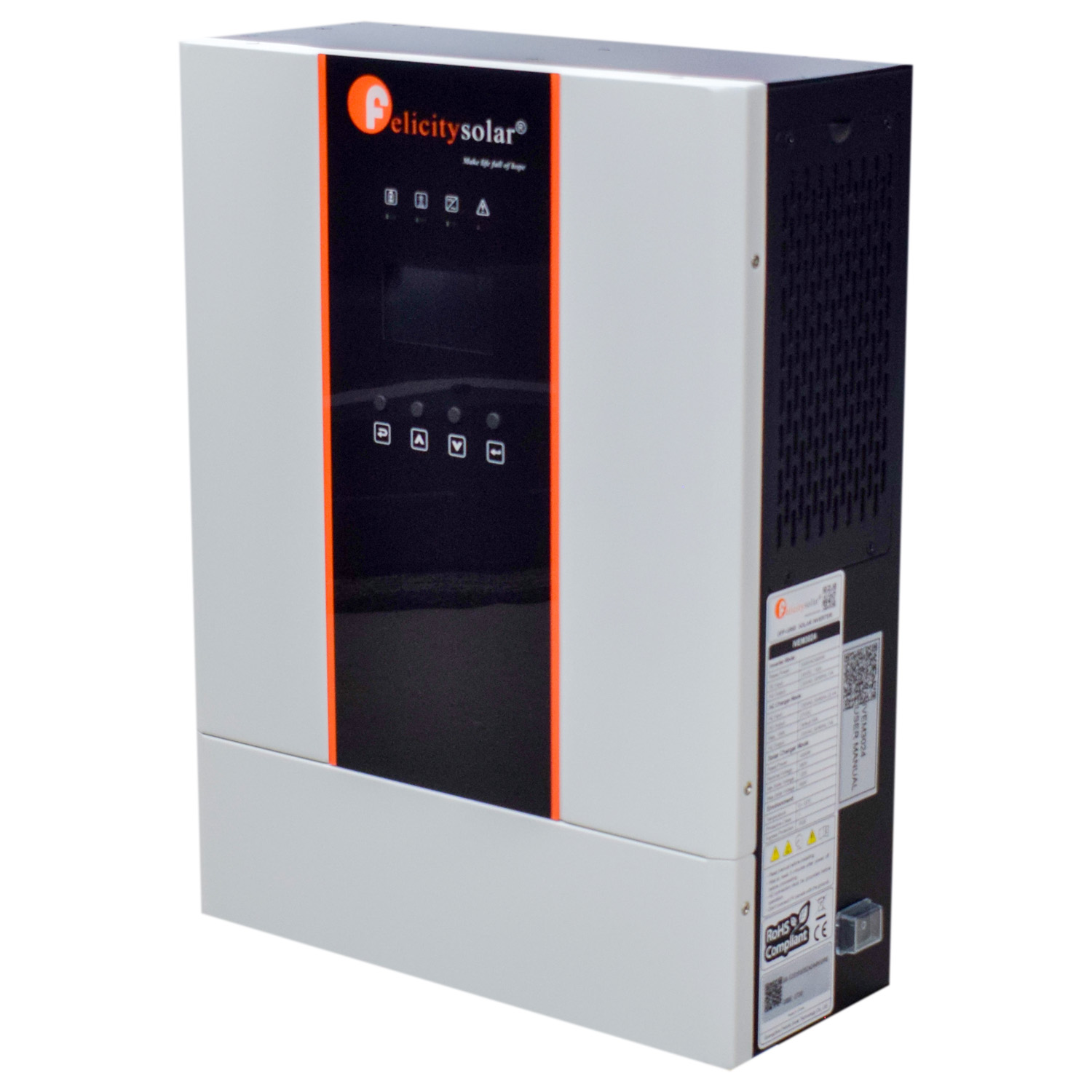

The FelicitySolar FL-VEM3024 is a pure sine wave hybrid inverter designed for residential and small commercial solar systems. It ensures automatic transfer between battery and line mode, providing uninterrupted power supply.
Key features include:
- High-reliability microprocessor control
- Intelligent charging control with adjustable battery type and charge current
- Bypass with AVR function (optional)
- Remote control and BTS terminal
- RS232 and SNMP card communication (optional)
- Selectable input voltage range and battery protection via DIP switch
- Charge and output priority setting via front button
With PV input up to 6000W, maximum charging current of 80A, and efficiency >95%, it delivers stable and optimized energy conversion. Compact and lightweight, it is ideal for homes, small offices, and off-grid sites, offering reliable and scalable power solutions.
TECHNICAL DETAILS:
| Specification | Details |
| Model | FL-VEM3024 |
| Rated Power | 3KVA / 3000W |
| AC Input Voltage | 230V |
| Selectable Voltage Range | 170–280V (UPS) / 90–280V (Appliances) |
| Frequency Range | 50/60 Hz (auto sensing) |
| Battery Voltage | 24VDC |
| AC Output Regulation | 230V ± 5% |
| Efficiency (Peak) | >95% |
| Waveform | Pure sine wave |
| Transfer Time | 10 ms (UPS) / 20 ms (Appliances) |
| Max. Solar Charge Current | 80A |
| Max. AC Charge Current | 80A |
| Max. Total Charge Current | 80A |
| PV Rated Power | 6000W |
| Max. PV Circuit Voltage | 450VDC |
| PV MPPT Voltage Range | 120–450VDC |
| Min. Battery Voltage for PV | 24VDC |
| Operating Temperature | 0 °C to +55 °C |
| Storage Temperature | –15 °C to +60 °C |
| Humidity | |
| Dimensions | 395 × 295 × 129 mm |
| Net Weight | 13.2 kg |
| Brand | FelicitySolar |
