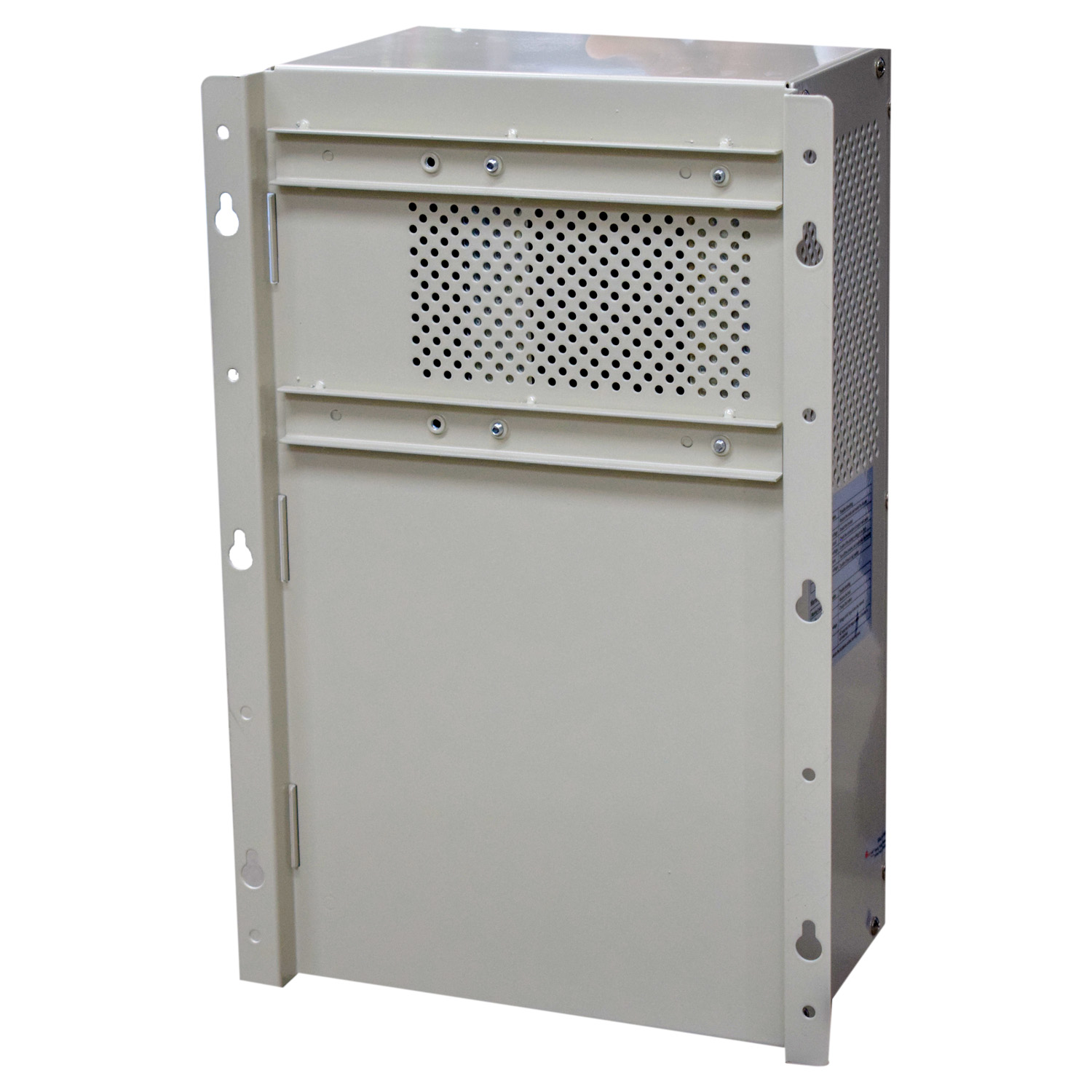

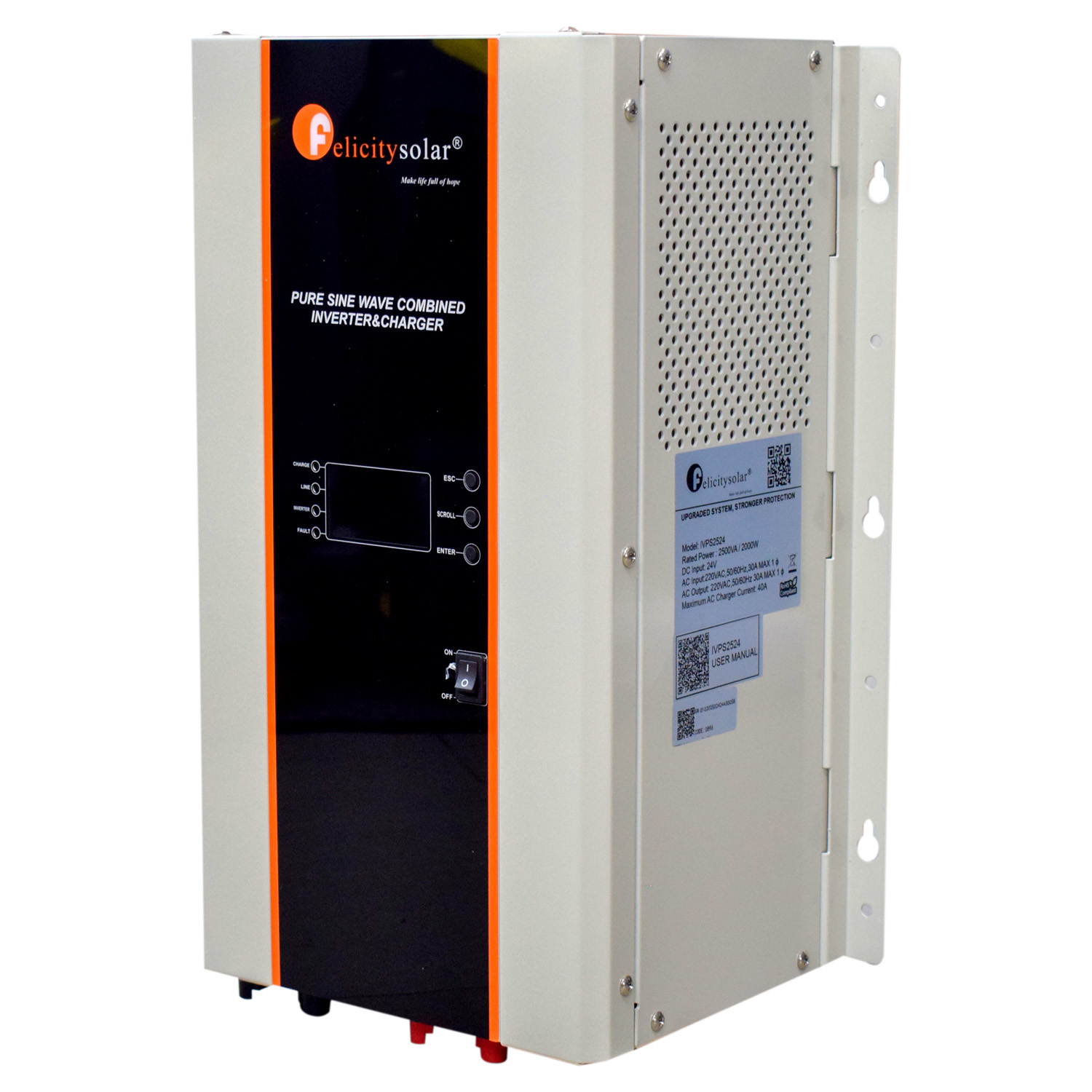

The FelicitySolar FL-IVPS2524 Li is a low frequency inverter charger designed for reliable off-grid and backup power applications. It delivers 2000W continuous output with a peak surge capacity of 2× rated power (≈5KVA for 5 seconds), making it suitable for homes, small offices, and isolated sites.
Key features include:
- Lithium battery wake-up function for seamless operation with modern batteries.
- Bypass charging function for convenient AC power supply.
- Wide AC input voltage range (90–280V) for reliable performance.
- Selectable grid or battery priority modes.
- Three-stage intelligent charging system to maximize battery life.
- Overload, short circuit, and overcharge protection for enhanced safety.
- Pass-through operation without battery supported.
Compact and robust, this inverter charger combines intelligent power management with eco-friendly design, ensuring efficient and safe energy conversion.
TECHNICAL DETAILS:
| Specification | Details |
| Model | FL-IVPS2524 Li |
| Rated Output Power (VA) | 2500VA |
| Rated Output Power (W) | 2000W |
| Nominal DC Input Voltage | 24V |
| Nominal AC Input Voltage | 220V AC |
| AC Input Voltage Range | 90–280V AC |
| Low Line Disconnect | 90V ± 7V |
| High Line Disconnect | 280V ± 7V |
| Low Line Reconnect | 100V ± 7V |
| High Line Reconnect | 270V ± 7V |
| Nominal Output Voltage | 220V ± 5% |
| Output Waveform | Pure sine wave |
| Output Frequency | 50Hz ± 0.3 / 60Hz ± 0.3 (adjustable) |
| Efficiency (Line Mode) | ≥95% |
| Transfer Time (AC to DC) | 15 ms typical |
| Transfer Time (DC to AC) | 15 ms typical |
| Max. AC Input Current | 30A |
| Max. DC Input Current | 40A |
| Max. Charging Current | 0A, 10A, 20A, 30A, 40A (adjustable) |
| Battery Types Supported | AGM / Flooded / Self-defined |
| Surge Rating | 2 × rated power for 5 seconds |
| Pass Through Without Battery | Yes |
| Protections | Overload, short circuit, overcharge |
| Dimensions | 395 × 295 × 129 mm |
| Net Weight | ~13.2 kg |
| Brand | FelicitySolar |
