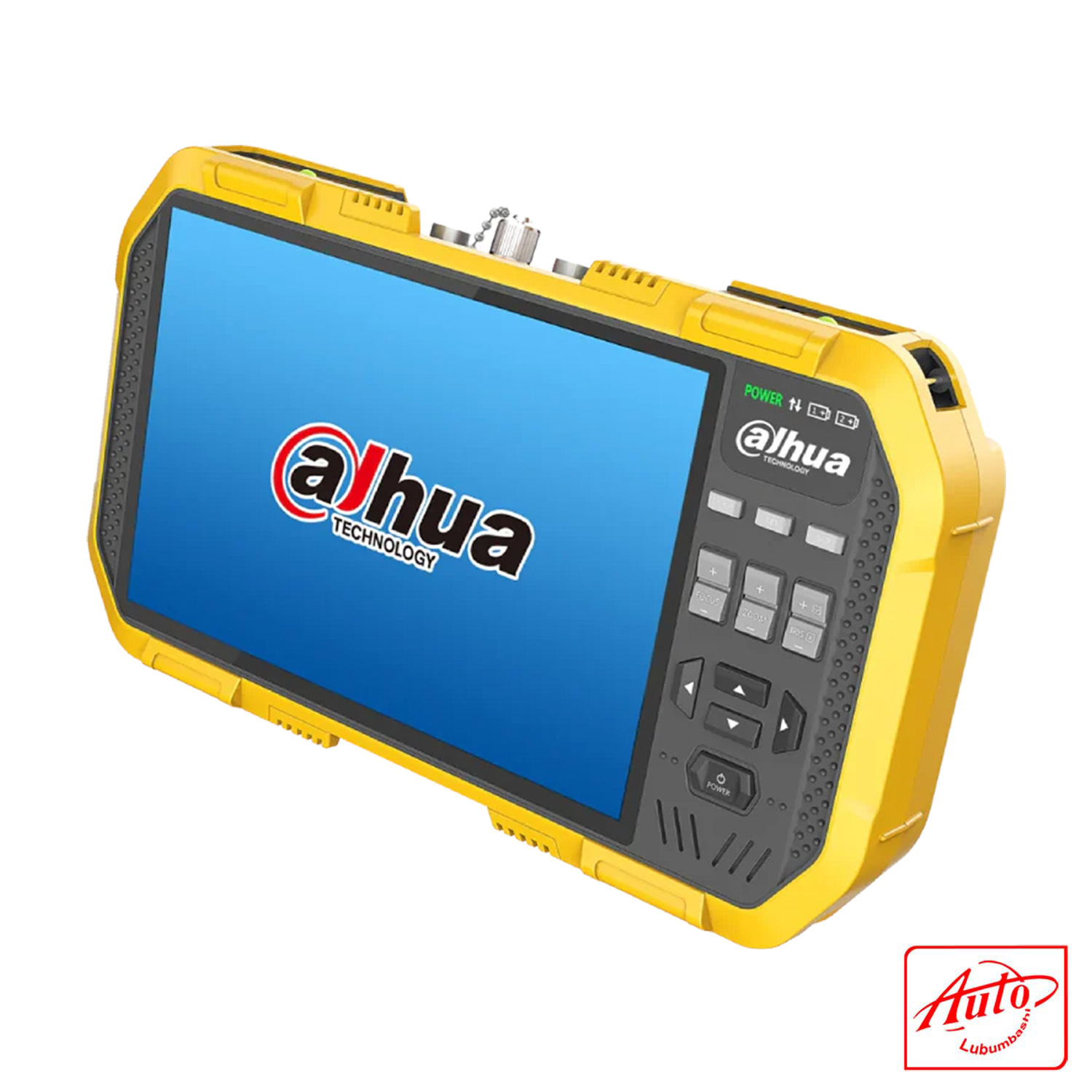

The PFM907-E is a versatile multifunction tester designed for surveillance system installers and technicians. It supports HDCVI, AHD, HDTVI, CVBS, and IP video signals, offering live view, snapshot, recording, zoom, and H.264/H.265 decoding.
Equipped with a 7-inch TFT touchscreen (1920 × 1200 resolution) and Linux operating system, it provides an intuitive interface with support for 10 languages. The tester integrates PoE and 12VDC camera power supply, RS485/PTZ control, audio input/output, and digital multimeter functions (voltage, current, resistance, capacitance, diode, continuity).
Additional features include TDR network cable testing, Wi-Fi spectrum analysis, HDMI input/output, optical power meter, and protocol code acquisition. Its compact design, robust build, and 10-hour battery life make it an indispensable tool for installation, troubleshooting, and maintenance of surveillance systems.
TECHNICAL DETAILS:
| Specification | Details |
| Model | PFM907-E |
| OS | Linux |
| Display | 7″ TFT touchscreen, 1920 × 1200 |
| Languages | 10 (incl. English, Chinese) |
| Video Signals Supported | HDCVI, AHD, HDTVI, CVBS, IP |
| Video Decoding | H.264 / H.265 |
| Camera Access | ONVIF, Dahua private protocol |
| Camera Power Supply | 12VDC 2A or PoE |
| PTZ Control | RS485 (30+ protocols) |
| Audio | 1 input, 1 output |
| Multimeter Functions | DC/AC voltage & current, resistance, capacitance, diode, continuity |
| Cable Test | TDR network cable length, attenuation, delay |
| Wi-Fi Test | IEEE802.11 b/g/n/ac; 2.4/5 GHz spectrum |
| HDMI | 1 input (720p/1080p), 1 output (1080p) |
| Optical Power Meter | InGaAs detector, –70 dBm to +10 dBm |
| Network Ports | 2 × RJ45 10/100/1000 Mbps |
| USB Ports | 1 × USB, 1 × Micro-USB |
| Dimensions | 235 × 135 × 45 mm |
| Weight | 0.93 kg |
| Operating Temperature | –10 °C to +55 °C |
| Operating Humidity | 30%–90% RH |
| Battery | Dual lithium packs, 18.5Wh each, ~10h runtime |
| Certifications | CE, FCC |
