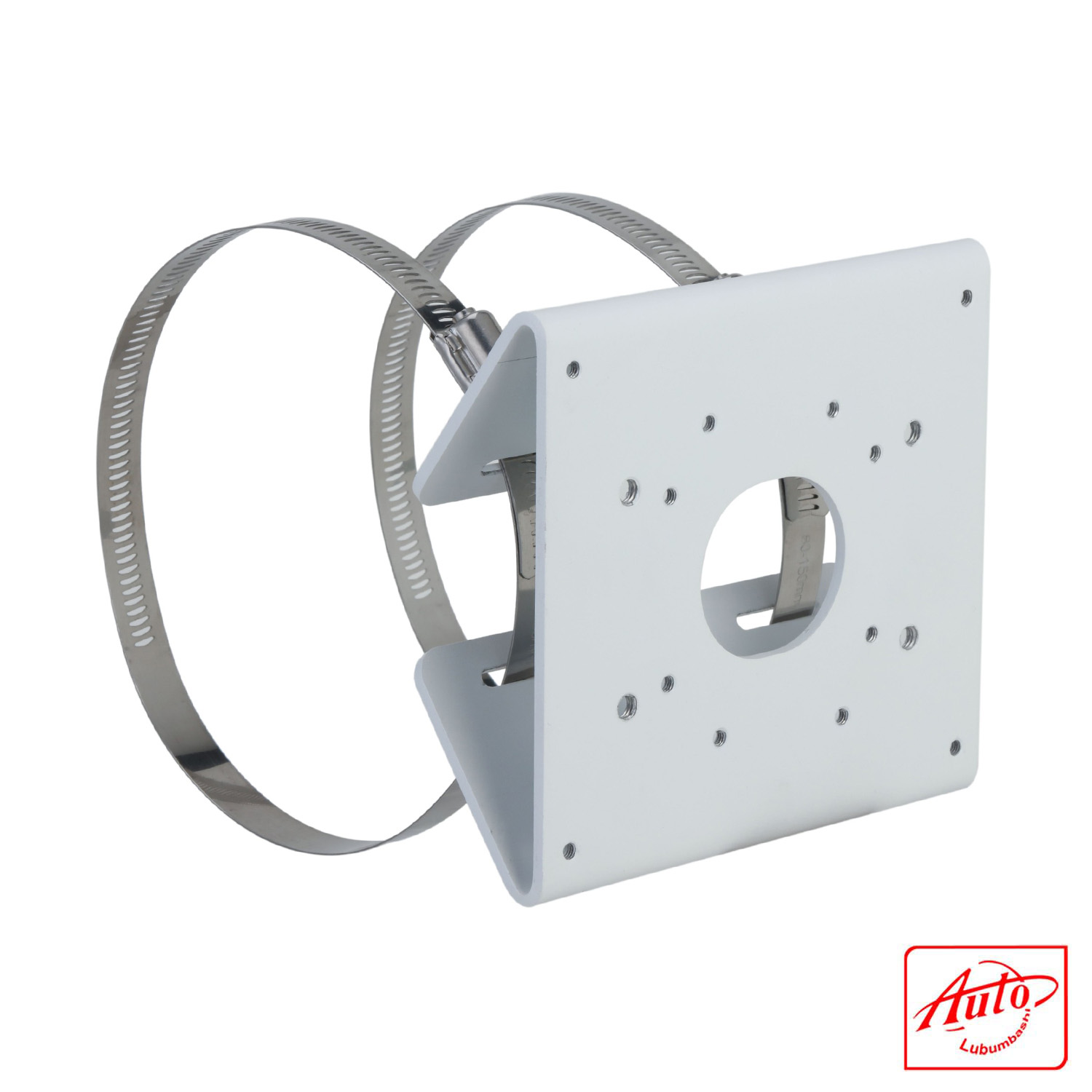

The PFA156 is a durable and economical pole mount bracket designed to support Dahua cameras in outdoor installations. Made of aluminum alloy, it combines strength, corrosion resistance, and lightweight construction.
Its elegant design makes it suitable for a wide range of cameras, while supporting a maximum load of 5 kg (11.02 lb). The bracket is compatible with poles of 80 mm–150 mm diameter, ensuring flexibility in installation.
With a wide operating temperature range (–40 °C to +60 °C) and basic environmental protection, the PFA156 is ideal for professional surveillance setups requiring secure and reliable mounting.
TECHNICAL DETAILS:
| Specification | Details |
| Model | PFA156 |
| Material | Aluminum alloy |
| Dimensions | 140 × 130.4 × 45 mm (5.51″ × 5.13″ × 1.77″) |
| Color | White |
| Net Weight | 0.27 kg (0.59 lb) |
| Gross Weight | 0.56 kg (1.23 lb) |
| Load Bearing | 5.0 kg (11.02 lb) |
| Installation | Plane mount |
| Pole Diameter | 80–150 mm (3.15″–5.91″) |
| Applicable Cameras | See “Accessory Selection” |
| Product Dimensions | 185 × 163 × 71 mm (7.28″ × 6.42″ × 2.8″) |
| Packaging Dimensions | 578 × 383 × 349 mm (22.76″ × 15.08″ × 13.74″) |
| Packaging Method | 30 pcs per carton |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | 10%–90% RH |
| Brand | Dahua |
