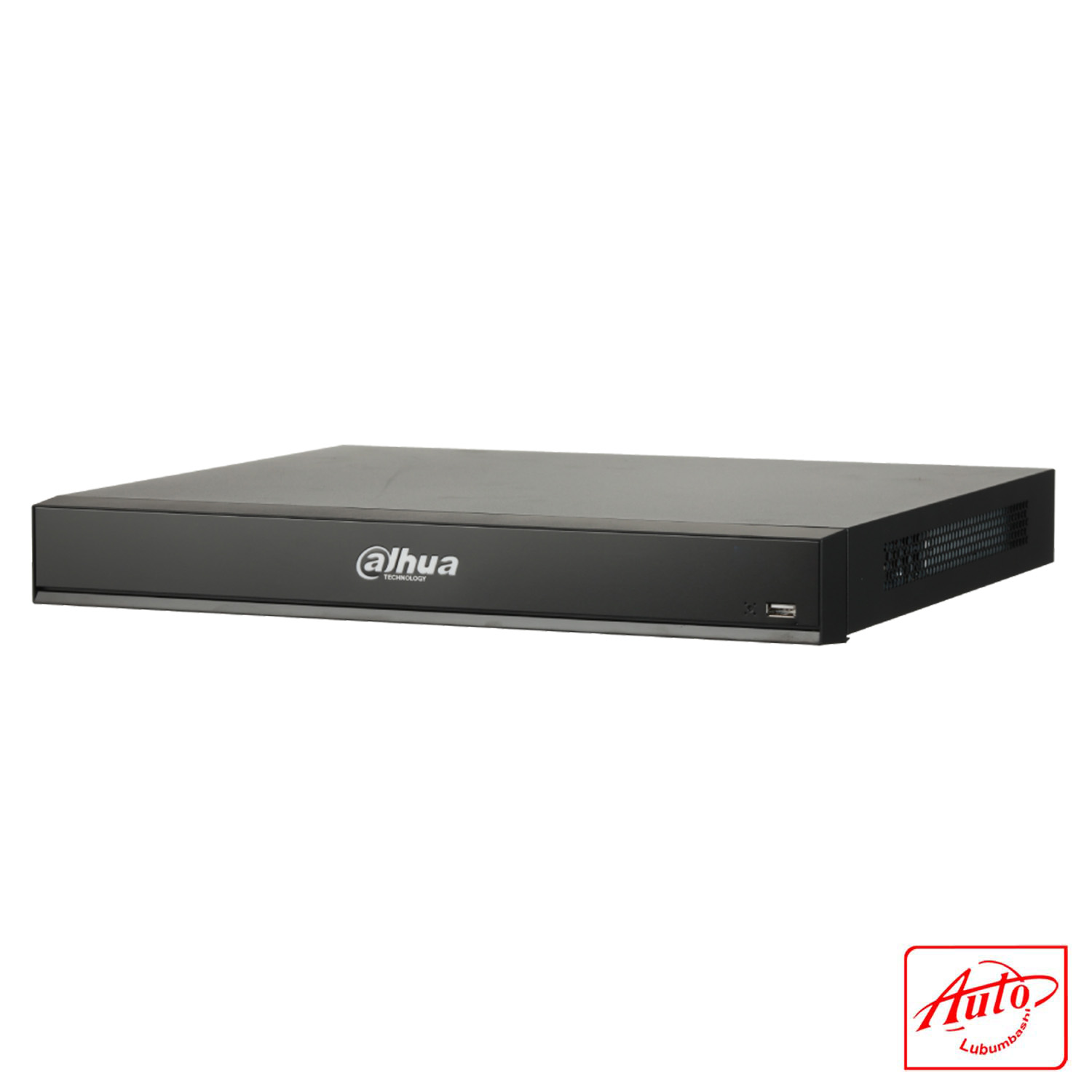

The Dahua NVR4216-16P-EI is a powerful WizSense network video recorder designed for advanced surveillance applications. It supports Smart H.265+/H.264+ compression formats, reducing bandwidth and storage requirements while maintaining high‑quality video. With a maximum bandwidth of 256 Mbps and decoding capability up to 16 × 1080p@30 fps or 4 × 8 MP@30 fps, it ensures smooth recording and playback.
AI features include 1‑channel face detection and recognition, 2‑channel perimeter protection, 4‑channel SMD by recorder, and extended AI by camera functions such as people counting, stereo analysis, and heat map visualization. The recorder supports up to 10 face databases with 20,000 images, enabling efficient facial recognition and metadata management.
It offers simultaneous HDMI/VGA output (up to 4K), multi‑screen display options, and compatibility with major third‑party cameras (Panasonic, Sony, Hanwha, Axis, Pelco, Arecont, Canon, ONVIF). With dual SATA ports supporting up to 20 TB, 16 PoE ports, and robust alarm/event management, this NVR is ideal for large‑scale surveillance deployments in public safety, transportation, education, and enterprise environments.
DÉTAILS TECHNIQUES :
| Specification | Details |
| Main Processor | Industrial‑grade processor |
| Operating System | Embedded Linux |
| Operating Interface | Web; Local GUI |
| AI by Recorder | Face detection; face recognition; perimeter protection; SMD |
| AI by Camera | Face detection; face recognition; perimeter protection; SMD; ANPR; people counting; stereo analysis; heat map |
| Perimeter Protection (Recorder) | 2 channels; 10 IVS rules per channel |
| Perimeter Protection (Camera) | All channels (8 targets/s) |
| Face Detection Attributes | Gender; age group; glasses; expressions; mask; beard |
| Face Detection (Recorder) | 1 channel (up to 12 face images/s) |
| Face Detection (Camera) | All channels (8 targets/s) |
| Face Database Capacity | Up to 10 databases; 20,000 images; 2.5 GB total capacity |
| Face Recognition (Recorder) | 1 channel FD+FR (12 images/s); 8‑channel FD by camera + FR by recorder |
| Face Recognition (Camera) | All channels (8 targets/s) |
| SMD Plus (Recorder) | 4 channels; secondary filtering for human/vehicle |
| SMD Plus (Camera) | All channels (16 targets/s) |
| Video Access Channels | 16 |
| Network Bandwidth | AI disabled: 256 Mbps; AI enabled: 180 Mbps |
| Supported Resolutions | 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 720p; 960p; D1; CIF |
| Decoding Capability | AI disabled: up to 16 × 1080p@30 fps; AI enabled: up to 12 × 1080p@30 fps |
| Video Output | 1 HDMI; 1 VGA (simultaneous, up to 4K) |
| Multi‑screen Display | 1st screen: 1/4/8/9/16; 2nd screen: 1/4/8/9/16 |
| Third‑party Camera Access | Panasonic, Sony, Hanwha, Axis, Pelco, Arecont, Canon, ONVIF |
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264; MJPEG |
| Audio Compression | G.711a; G.711u; PCM; G726 |
| Network Protocols | HTTP; HTTPS; TCP/IP; IPv4/IPv6; RTSP; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search; P2P; Auto Registration |
| Mobile Access | iOS; Android |
| Interoperability | ONVIF 23.12 (Profiles T/S/G); CGI; SDK |
| Browser Support | Chrome; IE9+; Firefox |
| Playback | Up to 16 channels |
| Recording Modes | General; Motion detection; Intelligent; Alarm |
| Backup | USB device; Network |
| Playback Modes | Instant; General; Event; Tag; Smart playback |
| Storage | 2 SATA ports (up to 20 TB); Disk group supported |
| General Alarms | Motion detection; privacy masking; video loss; scene change; PIR; IPC alarm |
| Anomaly Alarms | Disk error; low space; abnormal disk health; network disconnection; IP/MAC conflict; video tampering; camera offline; audio detection |
| Intelligent Alarms | Face detection; face recognition; perimeter protection; SMD Plus; people counting; stereo analysis; heat map |
| Alarm Linkage | Recording; snapshot; audio; buzzer; log; preset; email |

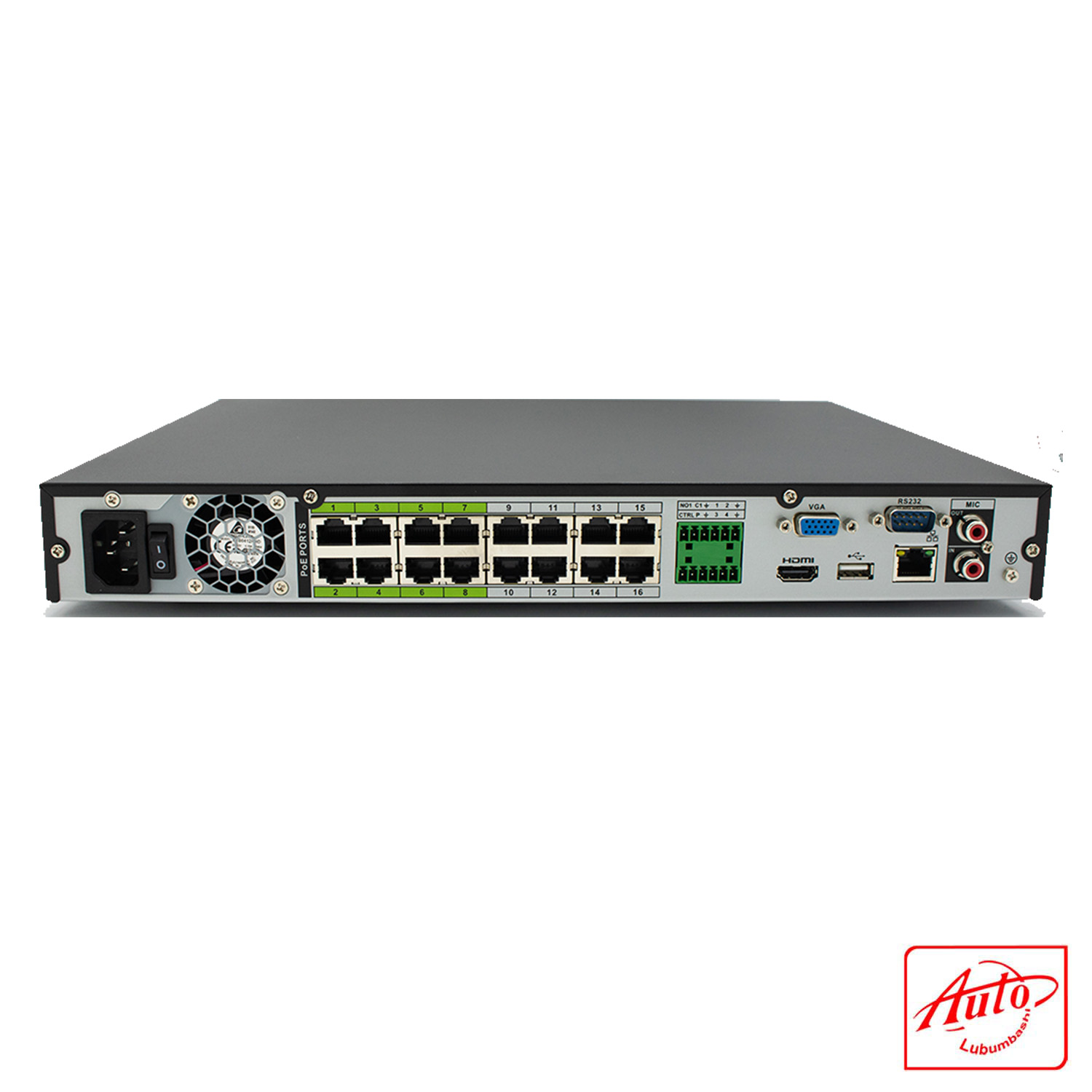

| External Ports | 1 RCA input; 1 RCA output; 4 alarm inputs; 2 alarm outputs; 2 USB (front/rear); 1 HDMI; 1 VGA; 1 RS‑232; 1 RJ‑45 (10/100/1000 Mbps); 16 PoE ports |
| Power Supply | 100–240 VAC, 47–63 Hz |
| Power Consumption | |
| Net Weight | 2.60 kg (5.73 lb) |
| Gross Weight | 3.80 kg (8.38 lb) |
| Product Dimensions | 375 × 329.3 × 53 mm (14.76″ × 12.96″ × 2.09″) |
| Package Dimensions | 451 × 425 × 147 mm (17.75″ × 16.73″ × 5.79″) |
| Operating Temperature | –10 °C to +55 °C |
| Storage Temperature | –20 °C to +60 °C |
| Operating Humidity | 10%–93% (non‑condensing) |
| Certifications | FCC Part15 Subpart B Class A; CE‑EMC; CE‑LVD |
