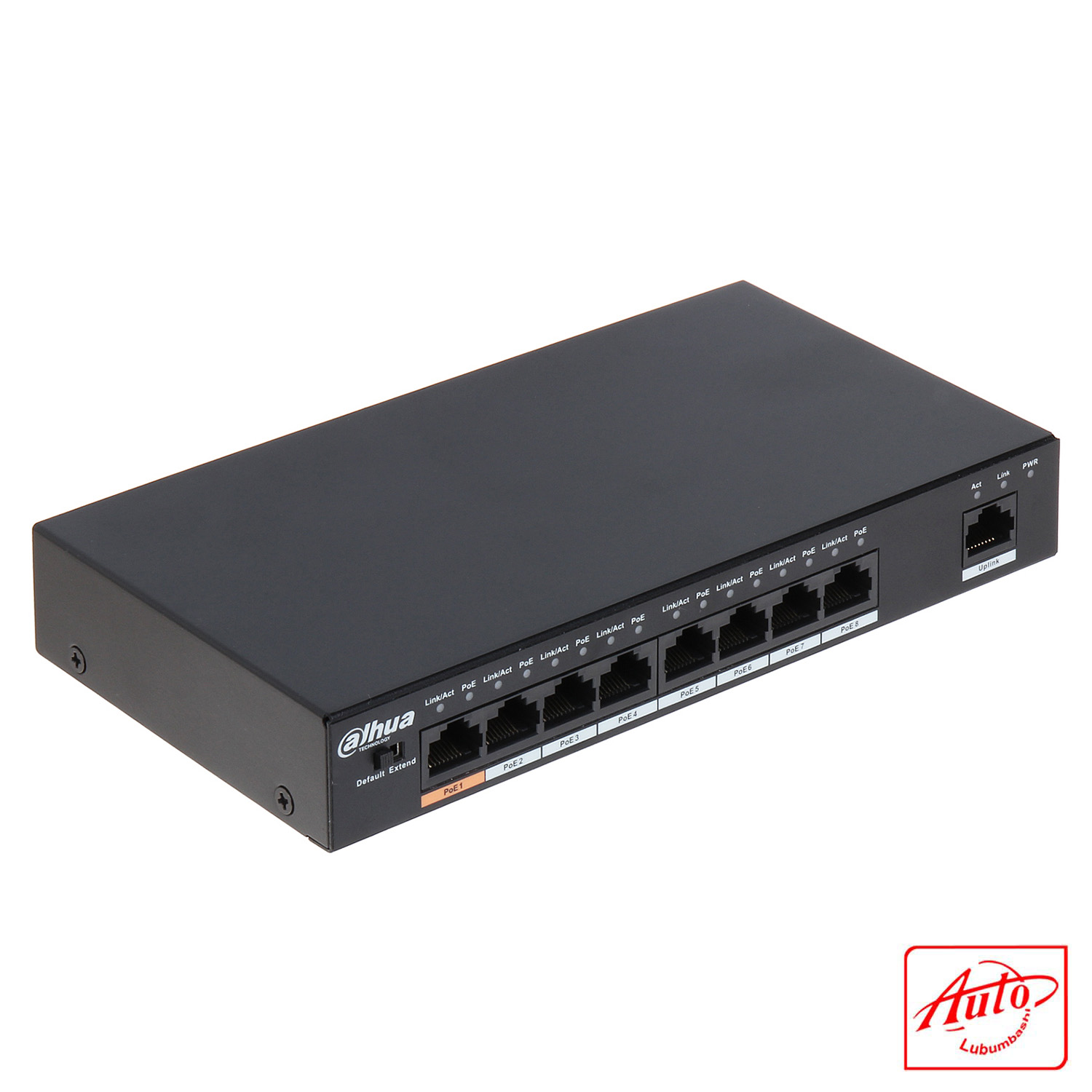

The DH-PFS3009-8ET-96-V2 is a Layer 2 commercial Fast Ethernet switch designed for surveillance and networking applications. It supports 250-meter long-distance PoE transmission, making it suitable for extended deployments without additional repeaters.
Equipped with 8 × 10/100 Mbps PoE ports and 1 × 100 Mbps uplink port, it ensures reliable connectivity for IP cameras and other PoE devices. Port 1 supports Hi-PoE up to 60W, while Ports 2–8 support up to 30W each, with a total PoE budget of 96W.
The switch conforms to IEEE802.3af/at standards, supports PoE power management, and offers MAC auto-learning and aging with a capacity of 2K addresses. Its compact design allows wall-mount installation, with added anti-theft lock hole protection.
TECHNICAL DETAILS:
| Specification | Details |
| Model | DH-PFS3009-8ET-96-V2 |
| Ethernet Ports | 1 × 10/100 Base-T uplink; 8 × 10/100 Base-T PoE |
| PoE Power Consumption | Port 1 ≤ 60W; Ports 2–8 ≤ 30W each; Total ≤ 96W |
| PoE Pin Assignment | 1, 2, 4, 5 (V+); 3, 6, 7, 8 (V–) |
| PoE Power Management | Supported |
| PoE Protocol | IEEE802.3af (PoE); IEEE802.3at (PoE+); Hi-PoE |
| MAC Table Size | 2K |
| Standards Supported | IEEE802.3; IEEE802.3u; IEEE802.3X |
| RJ45 Port Speed | 10/100 Mbps self-adaptive |
| Long-Distance PoE Transmission | Up to 250 meters |
| Installation | Wall-mount supported; anti-theft lock hole |
| Operating Temperature | –10 °C to +55 °C |
| Application Humidity | 5%–95% |
